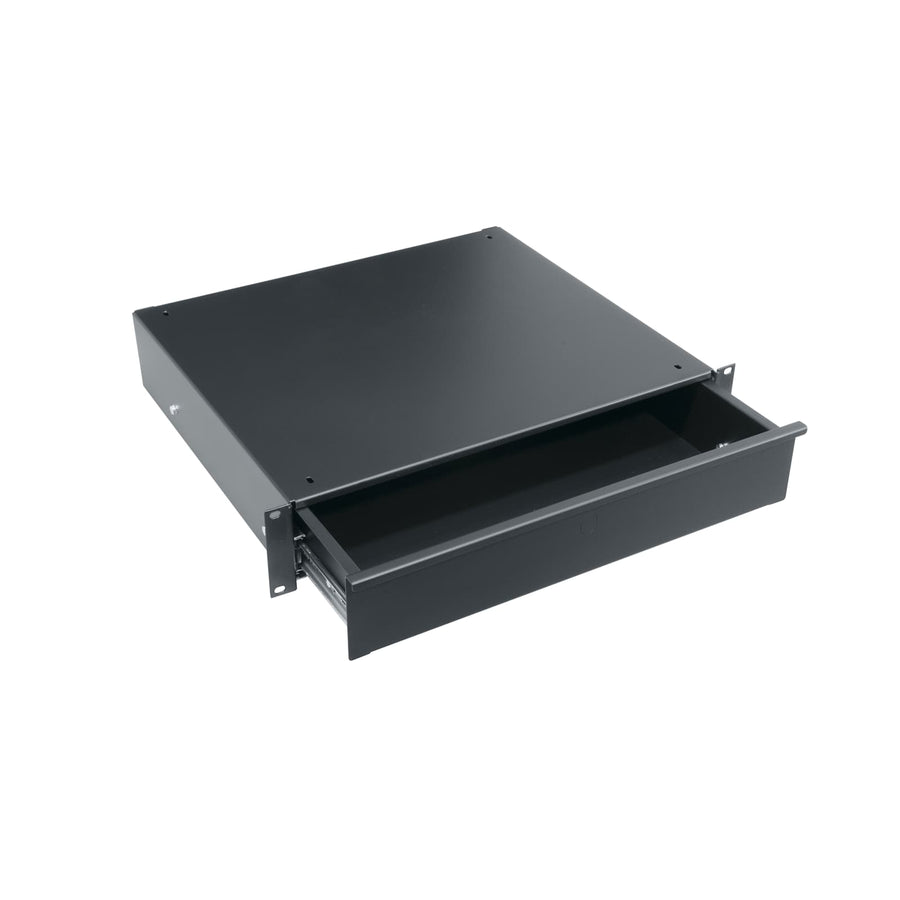

2 RU Utility Rack Drawer
2 RU rack storage drawer with full-extension ball bearing slides and 50 lbs capacity
The UD2 is a 2 RU utility rack drawer designed for economical rack storage. This steel construction drawer features a black powder coat finish and arrives fully assembled and ready for installation. It utilizes full-extension ball bearing slides that extend 14" to allow easy access to the interior, which measures 15-7/8" wide by 14-1/2" deep. The UD2 has a UL Load Capacity of 50 lbs (22.7 kg). For added security, installers can choose to install a KYLK keylock or a LATCH latch as user-installed options. This unit is TAA compliant and UL Listed.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 15.85 in (40.3 cm) |
| Height | 3.5 in (8.9 cm) |
| Rack Units | 2 RU |
| Shipping Weight | 15.7 lbs (7.1 kg) |
| UL Load Capacity | 50 lbs (22.7 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Width | 19 in (48.3 cm) |
| Mounting Points | 2 |
| UPC | 656747022999 |
| Certifications | UL Listed |
Resources
You'll need these with it
Questions about this part
What are the internal dimensions of the UD2 drawer?
The interior of the drawer measures 15-7/8" wide by 14-1/2" deep.
Can I secure the UD2 drawer with a lock?
Yes, you can install a KYLK UD Series Drawer Keylock or a LATCH UD Series Drawer Latch as user-installed options.
What is the weight capacity for the UD2?
The UD2 has a weight capacity and UL Load Capacity of 50 lbs (22.7 kg).
How much space does this drawer occupy in a rack?
The UD2 occupies 2 RU of vertical rack space and has a depth of 15.85 in (40.3 cm).
What accessories are compatible with this drawer?
You can use the FI-2 2 RU Foam Drawer Insert, the DM Drawer Mat, or the ACC-KEY for additional keys.
