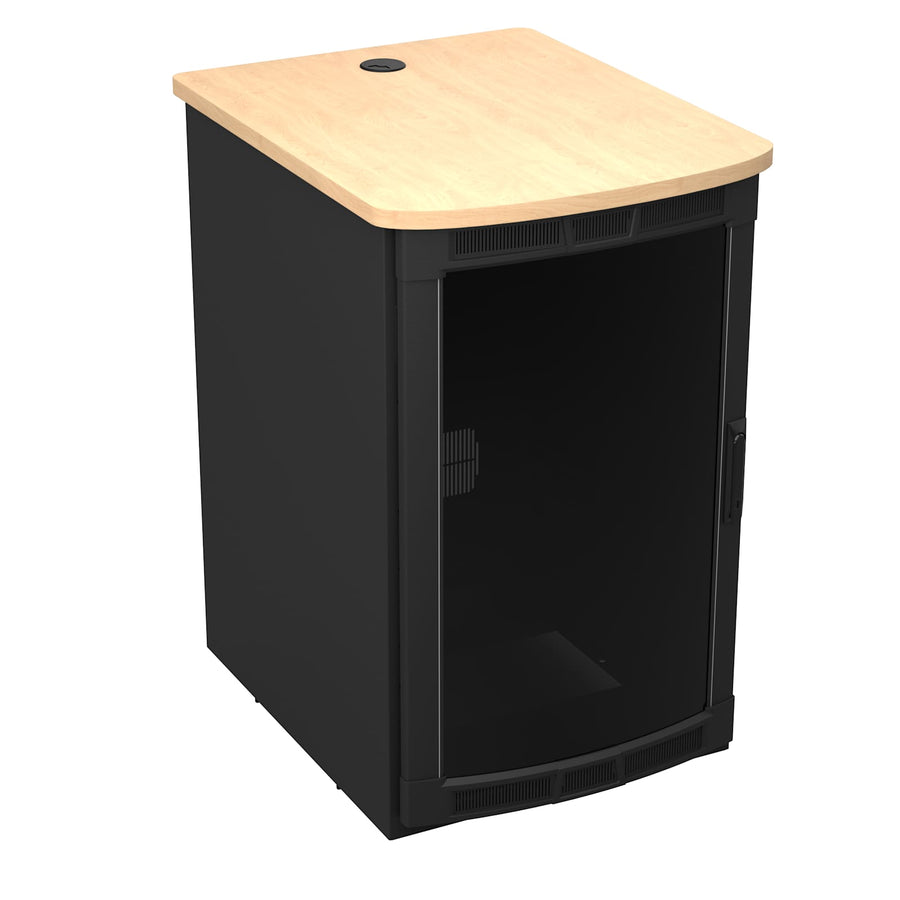

BGR-25SA32MDK-E1 Rolling Presentation Rack with Kensington Maple Top
25 RU mobile AV rack with Kensington Maple wood laminate top, 1100 lbs UL load capacity, and Forward Compatible rackrails
The BGR-25SA32MDK-E1 is a 25 RU mobile AV rack from the BGR MDK series that blends professional-grade utility with furniture-style aesthetics. This rolling enclosure features a high-pressure laminate (HPL) top in a Kensington Maple finish, which can accommodate video monitors. Built with a steel construction and a black wrinkle powder coat finish, the unit provides a robust solution for mobile AV deployments. It is equipped with both a front curved plexi door and a rear cable entry door for improved access. This specific SKU is TAA compliant and features a UL listed load capacity of 1100 lbs (499 kg). The enclosure includes a skirted wheelbase with leveling feet and 25mm x 150mm swing handles for secure access. The unit is designed with Forward Compatibility, utilizing the Forward Rackrail system to support specialized components like Forward vent panels and vertical cable management. This 23” width architecture provides extra room in the side channels for front-to-back cable management or mounting small devices on Lever Lock™ hardware to maximize the 43.75 in (111.1 cm) of usable height.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 36.35 in (92.3 cm) |
| Height | 50 in (127 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 204 lbs (92.5 kg) |
| Rack Units | 25 RU |
| Shipping Weight | 229 lbs (103.9 kg) |
| UL Load Capacity | 1100 lbs (499 kg) |
| Usable Depth | 29.4 in (74.7 cm) |
All other specifications 16
| Usable Height | 43.75 in (111.1 cm) |
| Width | 24.5 in (62.2 cm) |
| Color | Kensington Maple |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Front Door | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Monitor Mounting | Yes |
| Rack Rail Type | Forward Rackrail |
| Rear Door | Yes |
| TAA Compliant | Yes |
| UPC | 656747402746 |
| Wood Laminate Top | Yes |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
3 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-3$69.30
2 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-2$50.40
3 RU Rack Vent Panel, Perforated with 25% Open Area - 6 Piece Contractor Pack
VTF3-CP6$211.50
Questions about this part
Will this rack accommodate a video monitor?
Yes, the BGR-25SA32MDK-E1 features a Kensington Maple wood laminate top designed to accommodate video monitors.
What is the usable interior space for equipment?
This 25 RU rack offers a usable height of 43.75 in (111.1 cm) and a usable depth of 29.4 in (74.7 cm).
Can I use this rack with Forward series cable management?
Yes, this unit is Forward Compatible and uses Forward Rackrails, which accept Forward vertical and horizontal cable management products.
What is the weight capacity of the BGR-25SA32MDK-E1?
The unit has a UL listed load capacity of 1100 lbs (499 kg).
What documents are available for submittals?
Technical submittals can be supported using the BGR MDK Series CAD Technical Specification Drawings or the A&E Specification Sheet.
