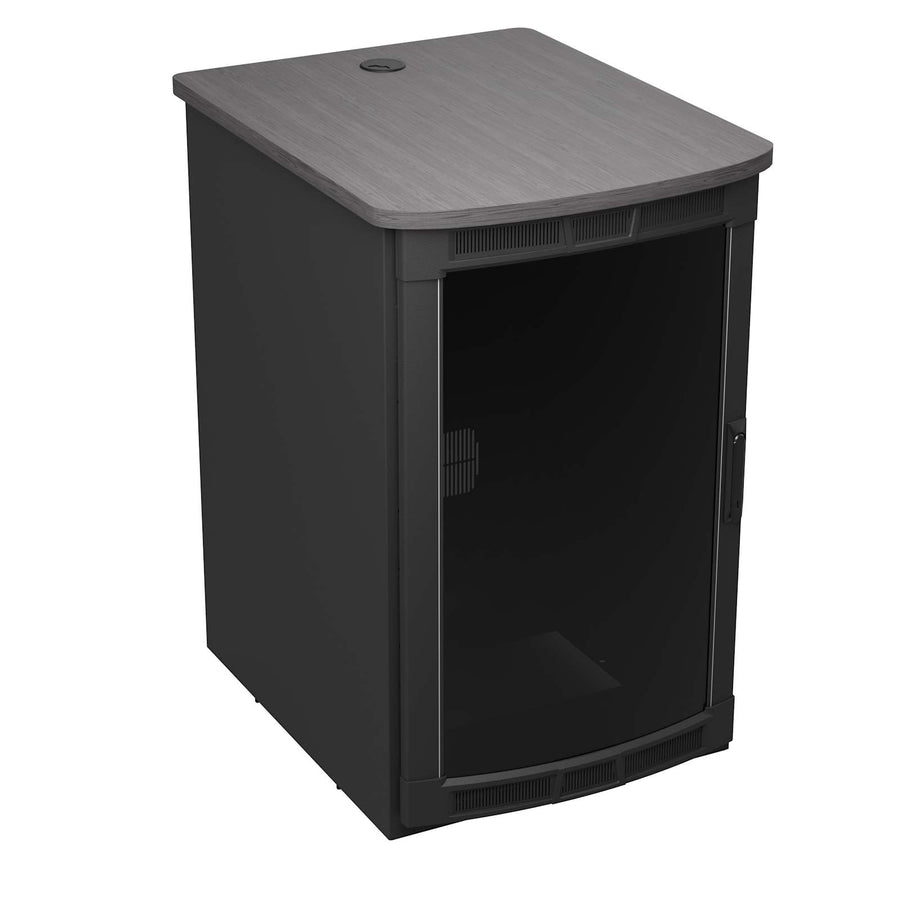

BGR-25SA32MDK-A3 Rolling Presentation Rack with Asian Night Top
25 RU mobile AV rack with Asian Night wood laminate top, monitor mounting, and Forward Rackrail compatibility
The BGR-25SA32MDK-A3 is a 25 RU mobile presentation rack from the Middle Atlantic BGR MDK Series, designed to blend furniture aesthetics with heavy-duty performance. This unit features a wood laminate top in Asian Night finish, which provides a flat surface suitable for monitor mounting. Built from steel with a black wrinkle powder coat finish, the enclosure is mobile, featuring a skirted wheelbase, leveling feet, and a curved plexi front door for visibility and access. It is equipped with a cable entry rear door and a 24.5" (62.2 cm) overall width. This model utilizes the Forward Rackrail system, making it forward compatible with Forward blank panels, vent panels, and both horizontal and vertical cable management products. The 23" wide internal configuration provides extra space in the side channels for front-to-back cable management or for mounting small devices using Lever Lock™ accessories. This TAA compliant, UL Listed rack has a 1100 lbs (499 kg) UL load capacity and a usable depth of 29.4 in (74.7 cm).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 36.35 in (92.3 cm) |
| Height | 50 in (127 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 204 lbs (92.5 kg) |
| Rack Units | 25 RU |
| Shipping Weight | 229 lbs (103.9 kg) |
| UL Load Capacity | 1100 lbs (499 kg) |
| Usable Depth | 29.4 in (74.7 cm) |
All other specifications 16
| Usable Height | 43.75 in (111.1 cm) |
| Width | 24.5 in (62.2 cm) |
| Color | Asian Night |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Front Door | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Monitor Mounting | Yes |
| Rack Rail Type | Forward Rackrail |
| Rear Door | Yes |
| TAA Compliant | Yes |
| UPC | 656747402708 |
| Wood Laminate Top | Yes |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
3 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-3$69.30
2 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-2$50.40
3 RU Rack Vent Panel, Perforated with 25% Open Area - 6 Piece Contractor Pack
VTF3-CP6$211.50
Questions about this part
What is the total weight capacity of the BGR-25SA32MDK-A3?
The unit has a UL load capacity of 1100 lbs (499 kg).
Will this rack support my video monitors?
Yes, the Asian Night wood laminate top is designed for monitor mounting.
What is the difference between this and other BGR MDK racks?
This SKU features the Asian Night wood laminate top and provides 25 RU of rack space.
What cable management is compatible with this rack?
This rack is Forward Compatible and accepts Forward vertical and horizontal cable management products.
Which documents are available for submittals?
Technical specifications, CAD drawings, and Revit models are available for this series.
