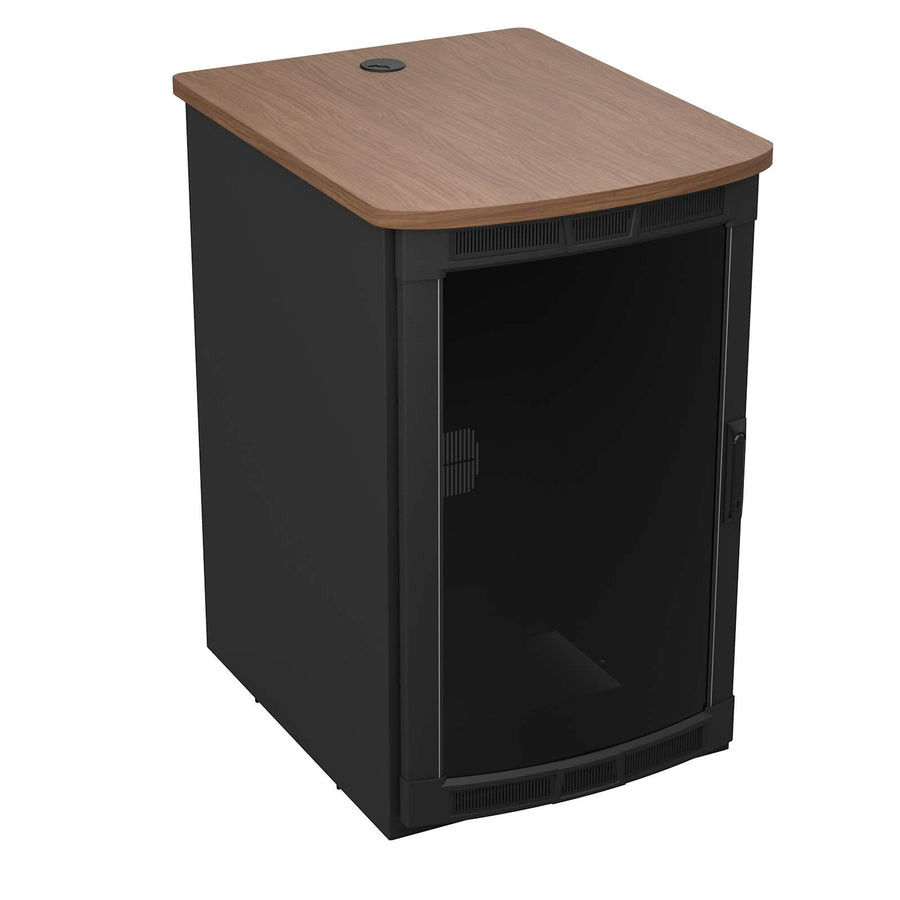

BGR-25SA27MDK-D0 Rolling Presentation Rack with Walnut Heights Top
25 RU mobile AV rack with Walnut Heights HPL top, featuring Forward Compatible rackrails and a steel enclosure
The BGR-25SA27MDK-D0 is a 25 RU mobile AV rack from the BGR MDK Series, designed to blend furniture-grade elegance with high-performance engineering. This rolling steel enclosure features a Walnut Heights high-pressure laminate (HPL) top that serves as a surface for mounting video monitors. The unit is constructed from steel with a black wrinkle powder coat finish and includes both a curved plexi front door and a cable entry rear door for secure, organized access. It is equipped with 25mm x 150mm swing handles and is built with a Forward Rackrail system. This forward compatibility allows installers to utilize Forward blank panels, vent panels, and both horizontal and vertical cable management products. The 23" width provides additional side space for front-to-back cable management or mounting small devices via Lever Lock™ to optimize rackspace. This TAA compliant, UL Listed mobile rack is manufactured in the USA and offers a UL load capacity of 1100 lbs (499 kg). The chassis is supported by a skirted wheelbase and leveling feet to ensure stability in any professional environment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 31.35 in (79.6 cm) |
| Height | 50 in (127 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 189 lbs (85.7 kg) |
| Rack Units | 25 RU |
| Shipping Weight | 207 lbs (93.9 kg) |
| UL Load Capacity | 1100 lbs (499 kg) |
| Usable Depth | 24.4 in (62 cm) |
All other specifications 16
| Usable Height | 43.75 in (111.1 cm) |
| Width | 24.5 in (62.2 cm) |
| Color | Walnut Heights |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Front Door | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Monitor Mounting | Yes |
| Rack Rail Type | Forward Rackrail |
| Rear Door | Yes |
| TAA Compliant | Yes |
| UPC | 656747402685 |
| Wood Laminate Top | Yes |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
100 CFM Fan Panel, Textured
QTFP-2$243.00
4 1/2 Inch DC Fan Kit, 138 CFM with International Power Supply Kit
IFAN2-DC$126.90
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
3 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-3$69.30
Questions about this part
What is the load capacity of the BGR-25SA27MDK-D0?
The unit has a UL Load Capacity of 1100 lbs (499 kg).
Is this rack compatible with Forward cable management?
Yes, the Forward Rackrail system allows the use of Forward vertical cable management, horizontal cable management, and Forward blank or vent panels.
Can I mount a monitor on top of this rack?
Yes, the Walnut Heights HPL top is designed to accommodate video monitors.
What are the dimensions of the usable space?
The usable depth is 24.4 in (62 cm) and the usable height is 43.75 in (111.1 cm).
Does this rack meet TAA requirements?
Yes, this product is TAA Compliant and is made in the USA.
