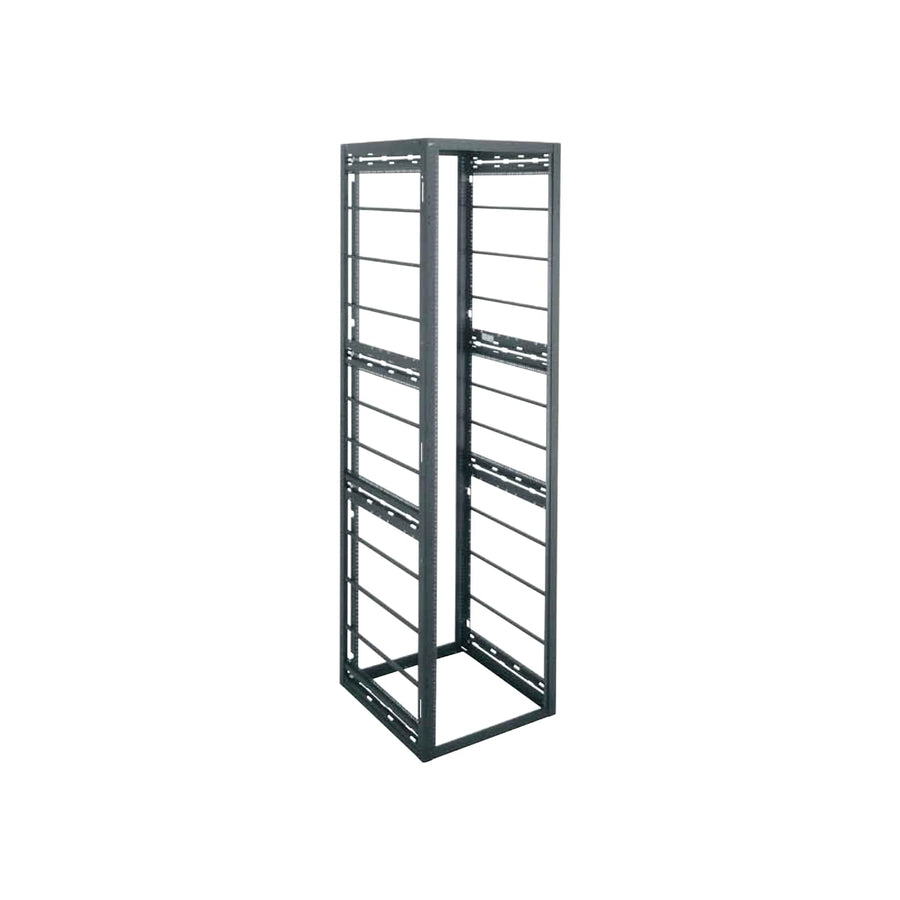

48 RU GRK Series Broadcast Rack, 36 Inches Deep
48 RU floor-standing broadcast rack, 36 inches deep, with 1,500 lbs capacity and welded gangable construction
The Middle Atlantic GRK-48-36HLRD is a 48 RU floor-standing broadcast rack designed for high-density video environments where efficient cable management is critical. This 36 in (91.4 cm) deep unit features a robust, welded gangable construction with solid top and bottom frames for superior stability. For installers managing high-density bundles, the rack includes horizontal cable management bars for tie-and-slide lacing, while the fully open top and bottom allow for straight vertical cable runs. This model features a University hinged door that can be installed with either a left or right swing for front or back access. The rack includes numbered rackspace increments to accelerate equipment installation and standard grounding/bonding studs at the top and bottom. It is finished in a durable, black textured powder coat and is UL-2416 (NWIN) listed, TAA compliant, and cULus certified.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 36 in (91.4 cm) |
| Height | 87 in (221 cm) |
| Rack Units | 48 RU |
| Shipping Weight | 194 lbs (88 kg) |
| Weight Capacity | 1500 lbs (680.4 kg) |
| Federal Ops Country of Origin | USA |
| Rear Door | No |
| TAA Compliant | Yes |
| UPC | 656747062476 |
| Certifications | cULusTAAUL Listed |
Resources
You'll need these with it
PDT Low Profile Vertical Power Strip, 16 Outlet, 20A
PDT-1620C-NS$351.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
48 RU LG Perf Front/Rear Door for GRK
GLVFRD-48$825.30

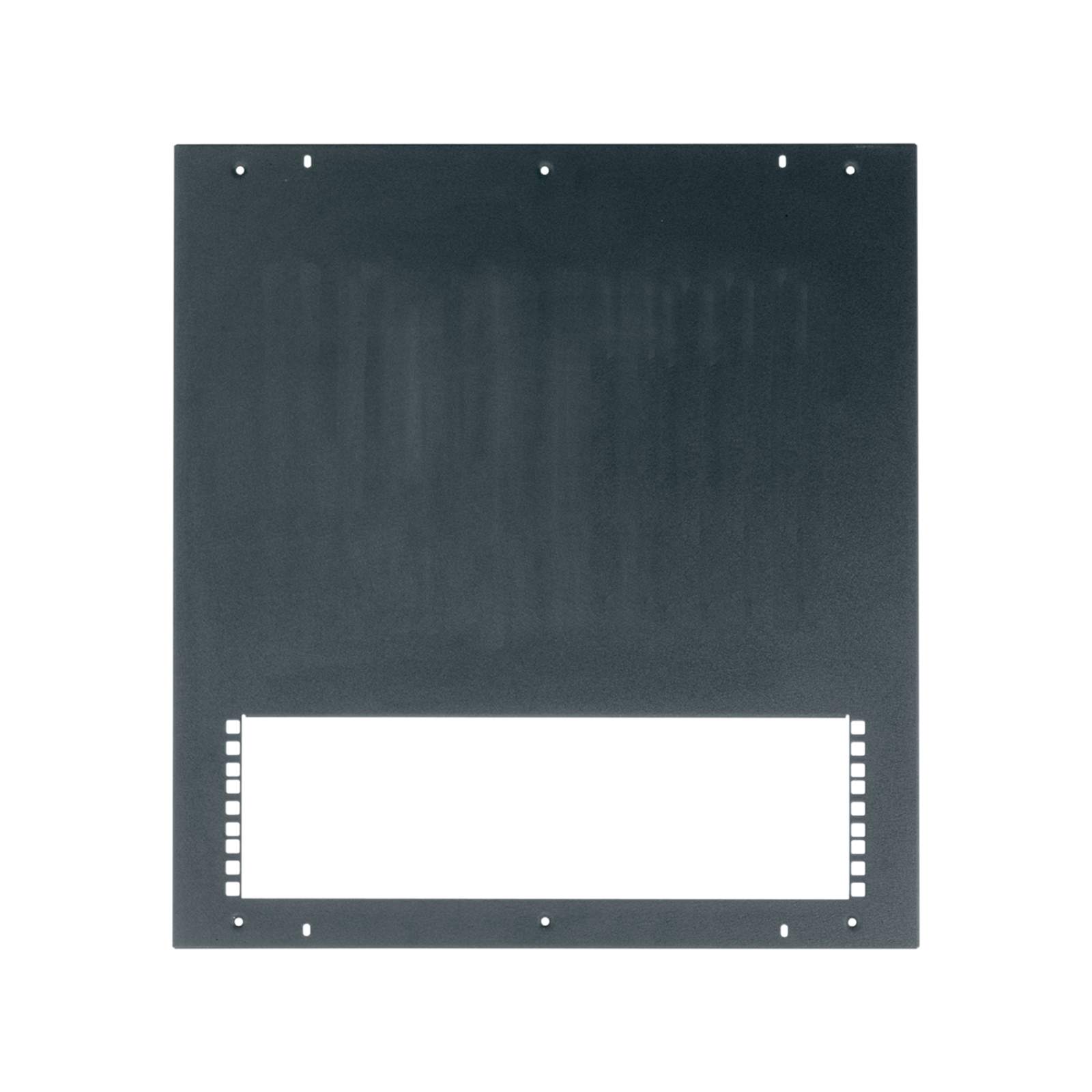

Solid Top for 36 Inch Deep GRK Racks
GRK-ST36$210.60
48 RU Side Panels for 36 Inch Deep GRK Racks
SPNG-48-36$1,159.20
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Questions about this part
What is the weight capacity of the Middle Atlantic GRK-48-36HLRD?
This rack supports a maximum weight capacity of 1,500 lbs (680.4 kg).
Does this rack include doors and side panels?
This specific SKU is the open rack. For enclosures, you can add accessories like the GLVFRD-48 LG Perf Front/Rear Door or the SPNG-48-36 side panels.
What is the difference between this rack and other GRK series models?
This is the 36 inch deep, 48 RU version. The GRK series offers different depths (30 in, 36 in, 42 in) and RU heights (44 RU, 48 RU, 52 RU).
Is the GRK-48-36HLRD TAA compliant?
Yes, this model is TAA compliant and is manufactured in the USA.
How can I manage cables within this rack?
The rack features horizontal cable management bars for tie-and-slide lacing and provides an open top and bottom for vertical runs.
