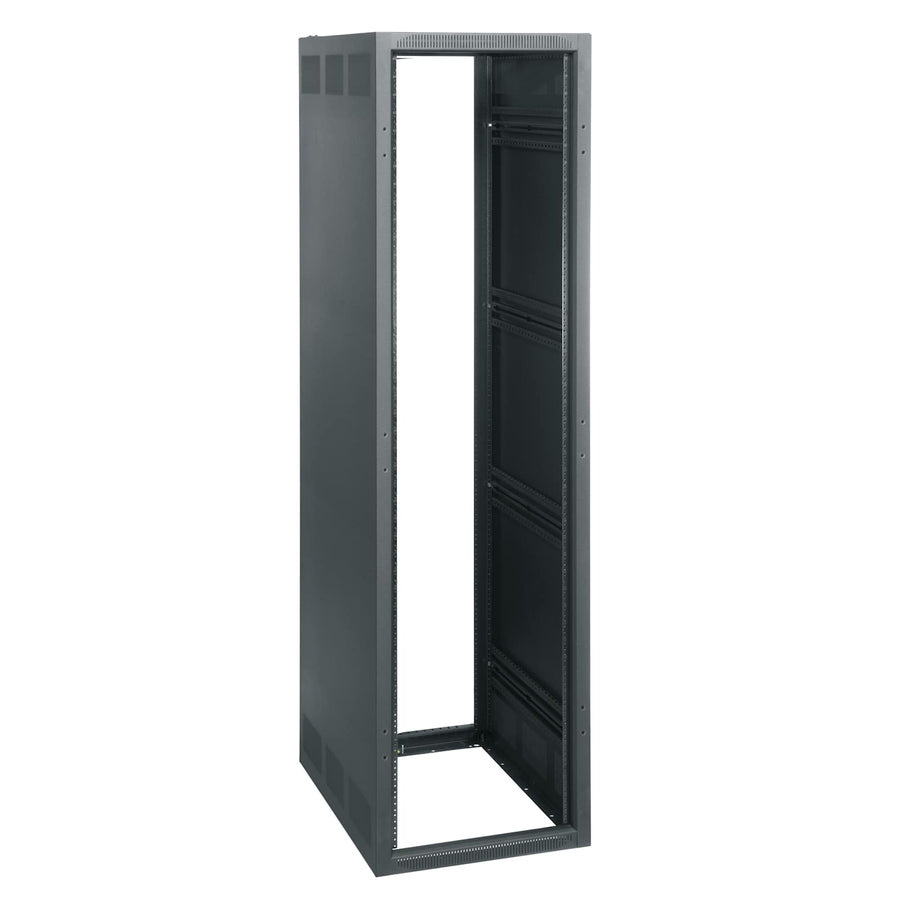

45 RU BGR-SA Series Rack, 27 Inches Deep, without Rear Door
45 RU floor-standing AV rack, 27" deep, seismic rated, and TAA compliant, featuring Forward and Lever Lock™ compatibility
The BGR-45SA-27LRD is a 45 RU standalone AV rack from the Middle Atlantic BGR-SA Series, designed for high-density professional installations. This frame-only configuration features a 27 in (68.6 cm) depth and a 23 in (58.4 cm) width, providing 24.4 in (62 cm) of usable depth. Built from steel with a Black Wrinkle Powder Coat finish, the rack is seismic rated with a seismic load capacity of 1175 lbs (533 kg) and a UL load capacity of 3000 lbs (1,360.8 kg). It is TAA compliant and HCAI (formerly OSHPD) listed, making it suitable for government and high-security environments. The design is Forward Compatible and accommodates the Lever Lock™ system for tool-free cable management. Its 19 in (48.3 cm) panel width is paired with standard front and rear adjustable Forward Rackrails that are numbered for easy adjustment. This unit is gangable, allowing multiple racks to be joined for larger system architectures.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 27 in (68.6 cm) |
| Height | 82.88 in (210.5 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 45 RU |
| Shipping Weight | 171 lbs (77.6 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 24.4 in (62 cm) |
| Usable Height | 78.88 in (200.4 cm) |
All other specifications 17
| Width | 23 in (58.4 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Gangable | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | Forward Rackrail |
| Rear Door | No |
| Seismic Rated | Yes |
| TAA Compliant | YesYes |
| UPC | 656747139994 |
| Certifications | ASCEHCAI (formerly OSHPD)TAAUL Listed |
| OSHPD Number | OPM |
| Seismic Load Capacity | 1175 lbs (533 kg) |
Resources
You'll need these with it
Caster Base for BGR Series
CBS-BGR$285.30
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
1 RU BlowerPanel, 100 CFM, 32dB
QBP-2$581.40
Dual LED Work Light with Interconnect Cable
LT-CABUTL-DUAL$333.00
45 RU Forward Rackrail For BGR Series Enclosures
FWD-BGR-RR45$219.60

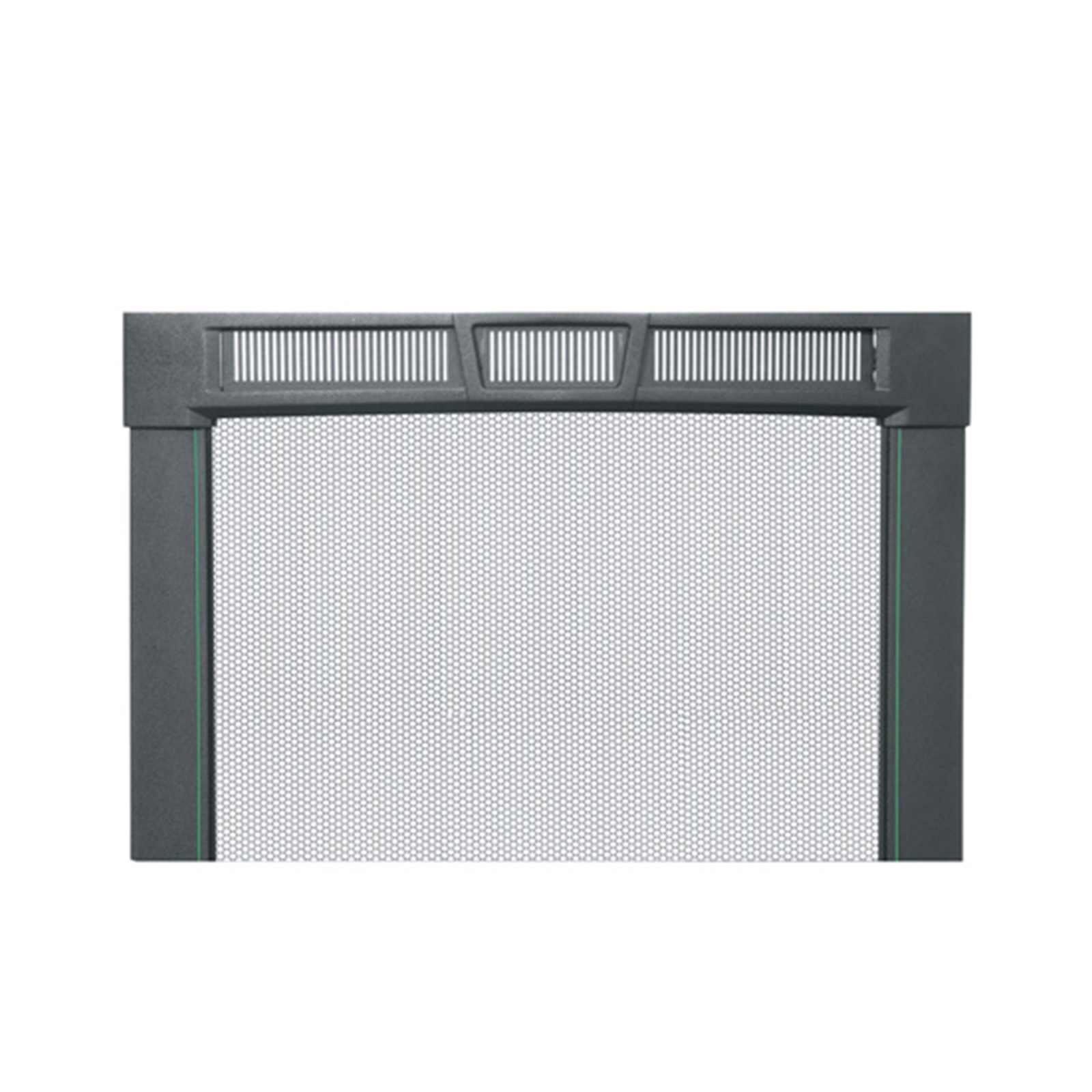

45 RU Vented Front Door, Curved
VFD-45A$803.70

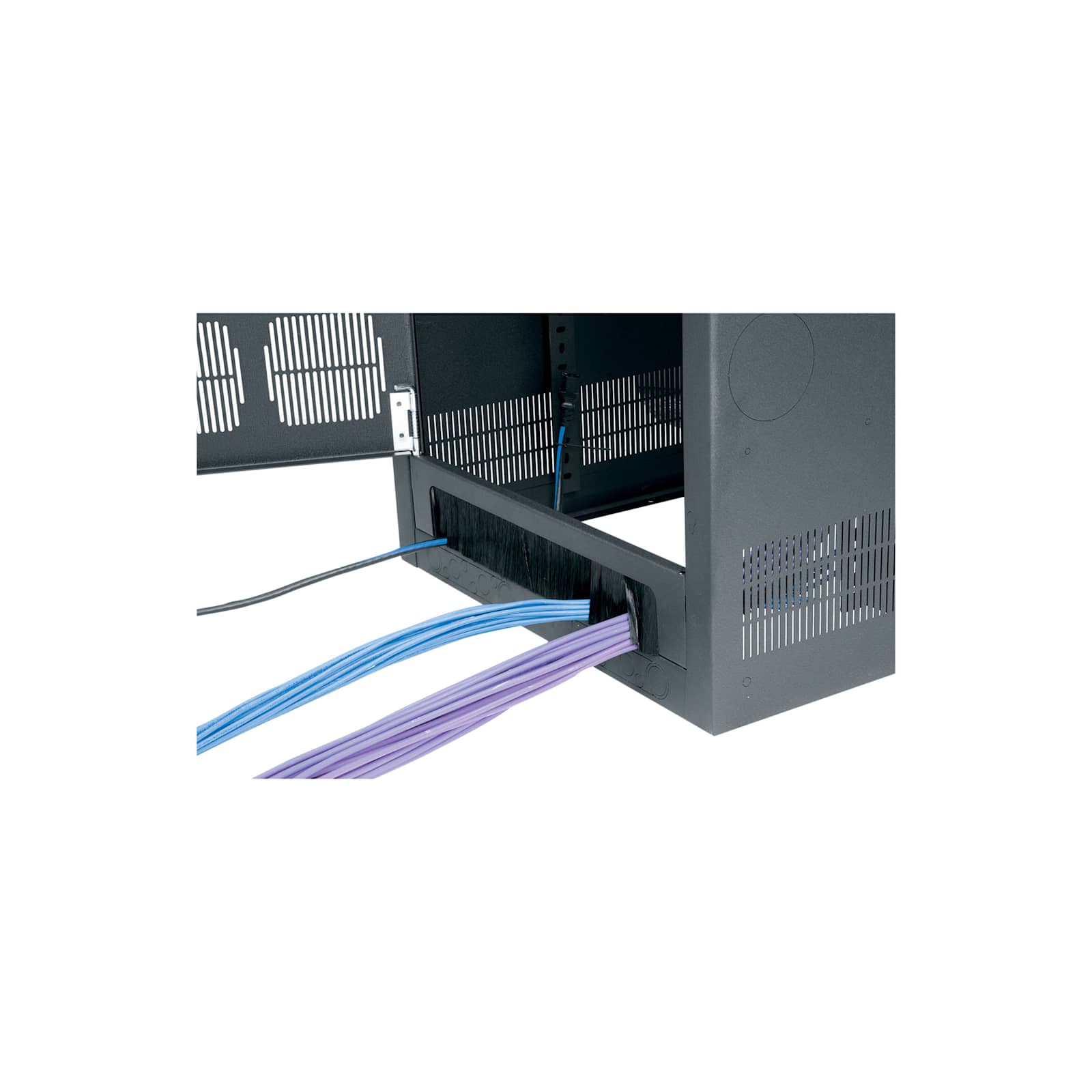

45 RU Cable-Entry Rear Door for BGR Racks
BGR-RDC45$372.60
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A
PDT-1015C-NS$253.80

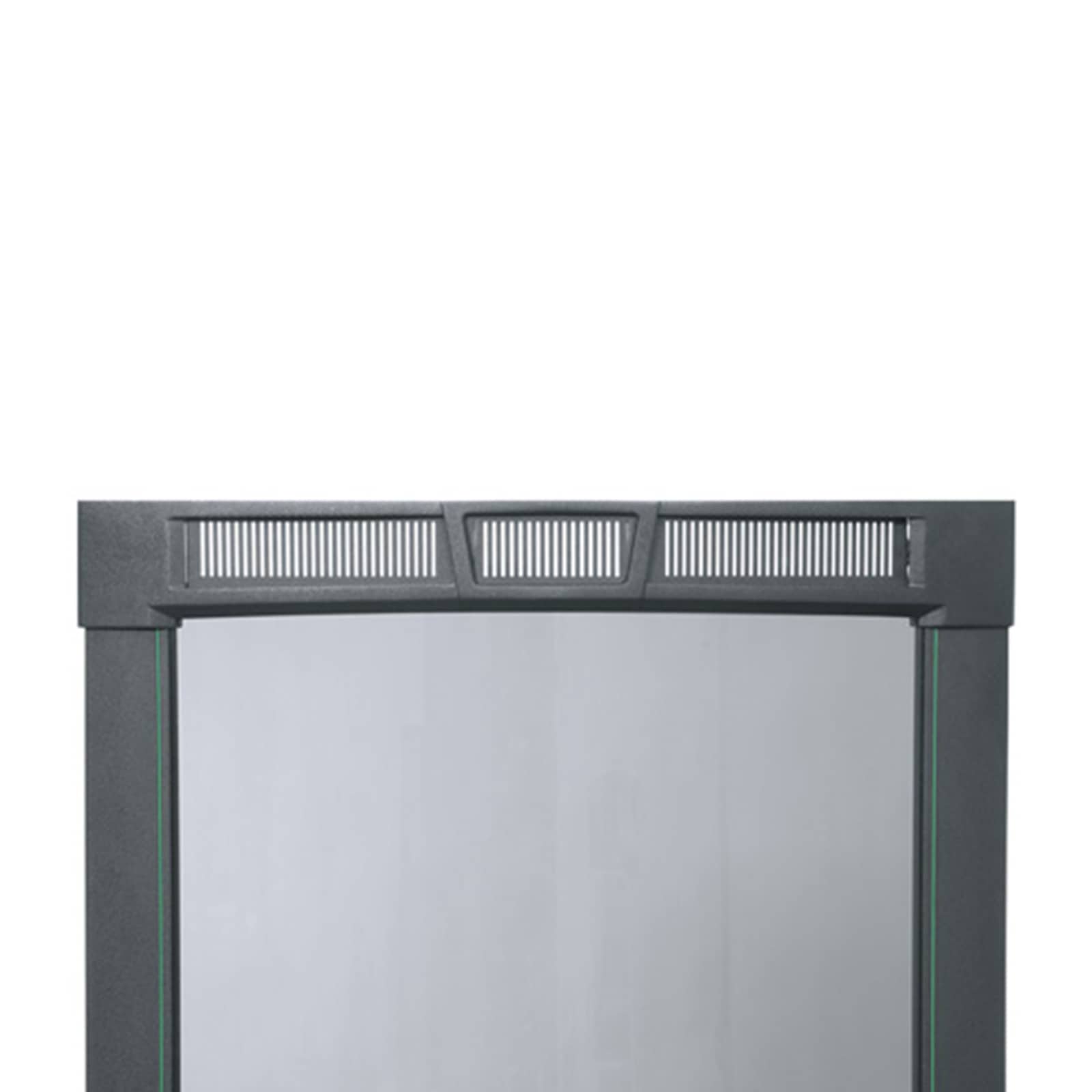

45 RU Plexi Front Door Racks. Curved
PFD-45A$1,036.80
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Power Strip, 24 Outlet, 30A, 2 Circuits Twistlock Plug
PD-2X1215TL-30CB$1,429.20
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Questions about this part
Is the BGR-45SA-27LRD suitable for seismic-rated installations?
Yes, this rack is seismic rated with a seismic load capacity of 1175 lbs (533 kg) and is UL listed.
Can I add doors or cable management to this rack later?
Yes, the BGR-SA series is designed to accept several accessories, including the BGR-RDC45 cable-entry rear door and the VFD-45A vented front door.
What accessories are compatible with the BGR-45SA-27LRD?
You can add a CBS-BGR caster base, a QBP-2 blower panel, or various power solutions like the PDT-1015C-NS vertical power strip.
What is the usable space inside this 45 RU rack?
The unit provides 78.88 in (200.4 cm) of usable height and 24.4 in (62 cm) of usable depth within the 27 in (68.6 cm) total depth frame.
Which documentation is available for submittals?
Installers can access the BGR-SA Series Rack A&E Specification Sheet or the BGR-SA Series 3 Part Specification for project documentation.
