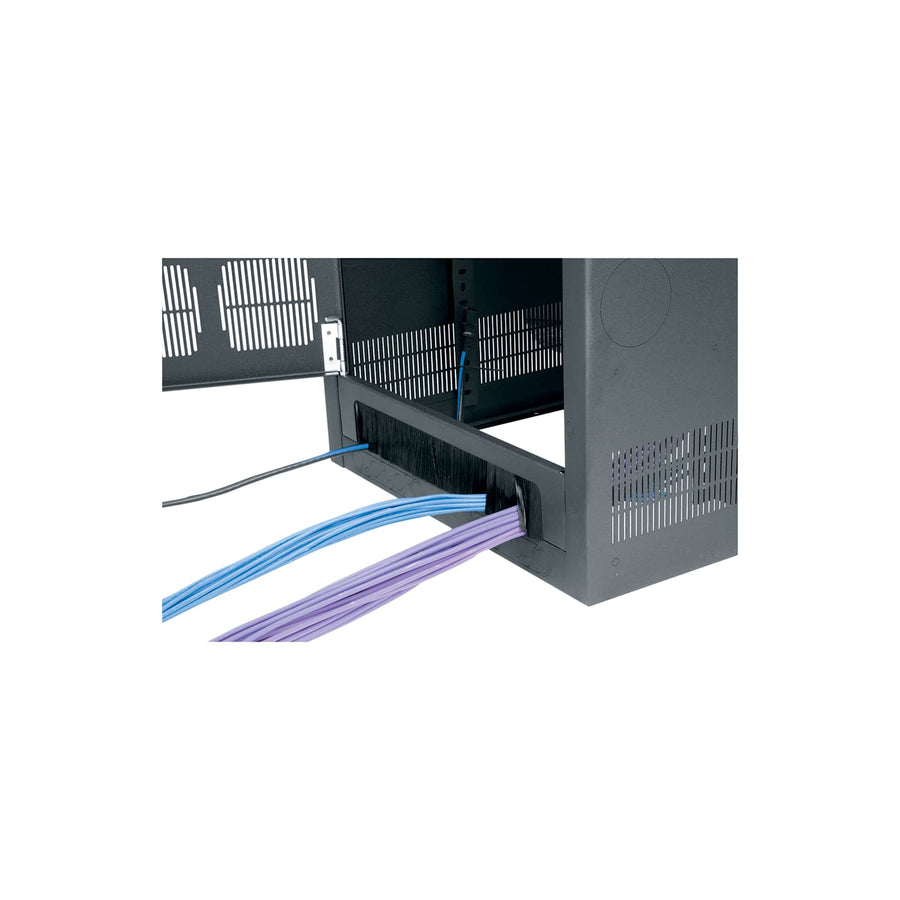

45 RU Cable-Entry Rear Door for BGR Racks
45 RU rear cable-entry door for BGR series racks, seismic rated and vent-compatible
The Middle Atlantic BGR-RDC45 is a 45 RU rear door designed specifically for use with BGR series racks. This steel construction door facilitates easier cable management by providing a large passage for cable entry, allowing installers to route wiring without the need for fishing cables through tight spaces. For thermal management, the vented door design is compatible with several optional cooling fan kits, such as the FAN2-DC or the FAN2-DC-FC which includes a thermo controller. To manage cable entry points, a brush grommet can be installed at either the top or the bottom of the door. This seismic-rated component is TAA compliant and is built with a matching finish to the base BGR rack series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 1.36 in (3.5 cm) |
| Height | 79.63 in (202.3 cm) |
| Rack Units | 45 RU |
| Shipping Weight | 32 lbs (14.5 kg) |
| Width | 20.3 in (51.6 cm) |
| Base Series | BGR |
| Seismic Rated | Yes |
| UPC | 656747147524 |
Resources
You'll need these with it
Questions about this part
Will this BGR-RDC45 fit my BGR series rack?
This door is specifically designed for the BGR series racks and occupies 45 RU of vertical space.
Can I install cooling fans in this rear door?
Yes, the vented door design allows for the installation of optional DC fan kits, such as the FAN2-DC or the 138 CFM FAN2-DC-FC.
Is this door suitable for seismic-rated installations?
Yes, the BGR-RDC45 is seismic rated and is also TAA compliant.
How can I manage cables entering through the rear door?
The door features a large cable passage for easy routing and allows for a brush grommet to be installed at either the top or the bottom.
What documentation is available for submittals?
You can download the BGR Series 3 Part Specification, Seismic Certification Letter, or CAD Technical Specification drawings from the resources section.
