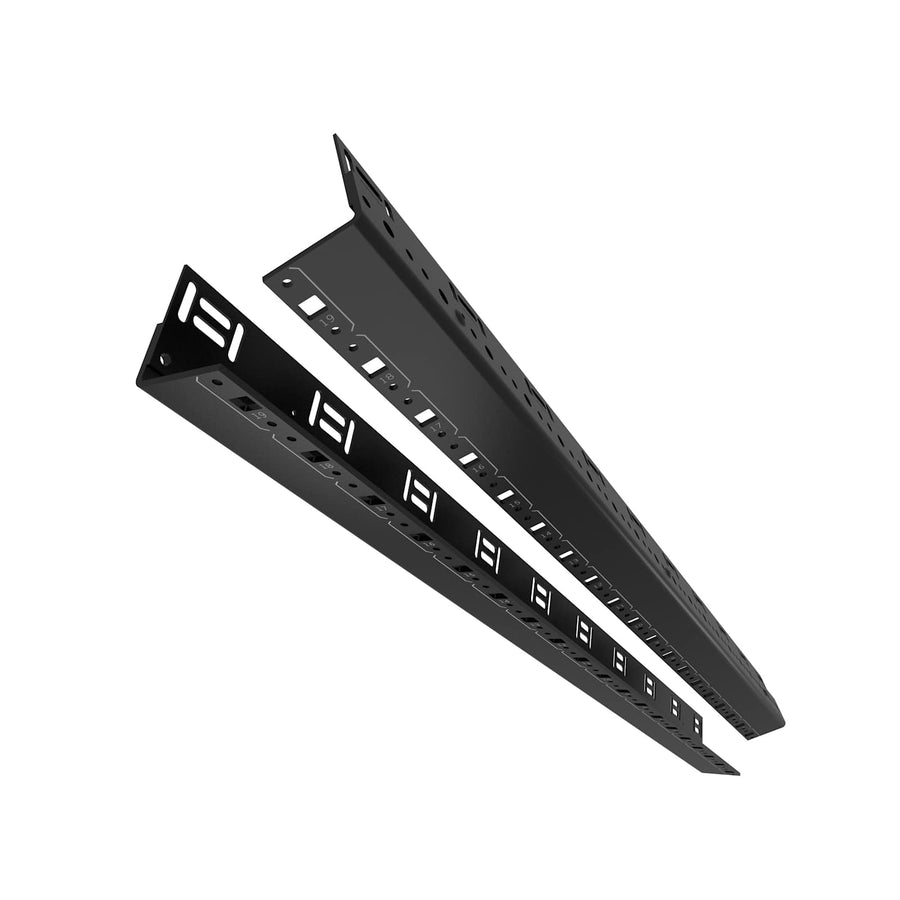

45 RU Forward Rackrail For BGR Series Enclosures
45 RU forward rackrail for BGR series enclosures, featuring tool-free installation for Forward panels and accessories
The FWD-BGR-RR45 is a 45 RU forward rackrail designed specifically for use within BGR series enclosures. This steel rail utilizes a patented Universal Hole Pattern on the side to facilitate internal cable management, providing lacing points to organize interconnections without needing improvised tie-off points. A key feature of this rail is the integrated square hole, which allows for tool-free installation of all Forward series panels, vents, and cable management accessories. By clicking these components into place, installers can eliminate the use of rack screws for these specific items, significantly increasing deployment speed. This 78.75 in (1999.95 mm) long rail has a 1.84 in (4.7 cm) width and a 2.44 in (6.2 cm) depth, finished in a black E-coat. This SKU is one of several options in the BGR Forward Rackrail series, with other versions available in different lengths and rack unit counts.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 2.44 in (6.2 cm) |
| Length | 78_75 in |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 45 RU |
| Shipping Weight | 18 lbs (8.2 kg) |
| Width | 1.84 in (4.7 cm) |
| Color | Black |
| Finish | Black E-Coat |
| Material | Steel |
| Rack Rail Type | Forward Rackrail |
| Special Features | ForwardInstallation Time Savers |
| UPC | 656747384813 |
Resources
Questions about this part
Will this rail fit my BGR series enclosure?
The FWD-BGR-RR45 is specifically designed for the BGR series and features a 19 in (48.3 cm) panel width.
Do I need rack screws to install Forward panels?
No, the integrated square hole allows Forward panels, vents, and cable management to be clicked into place without using any rack screws.
What is the purpose of the side hole pattern?
The side of the rail features a Universal Hole Pattern used for internal cable management and lacing to organize interconnections.
How does this differ from other BGR rackrails?
This is a forward rackrail designed for tool-free accessory mounting, whereas other BGR rails in this series vary by RU height and length.
Which document is needed for submittals?
You can refer to the Forward BGR Rackrail Instruction Sheet for installation details or the CAD Technical Specification Drawing for precise measurements.
