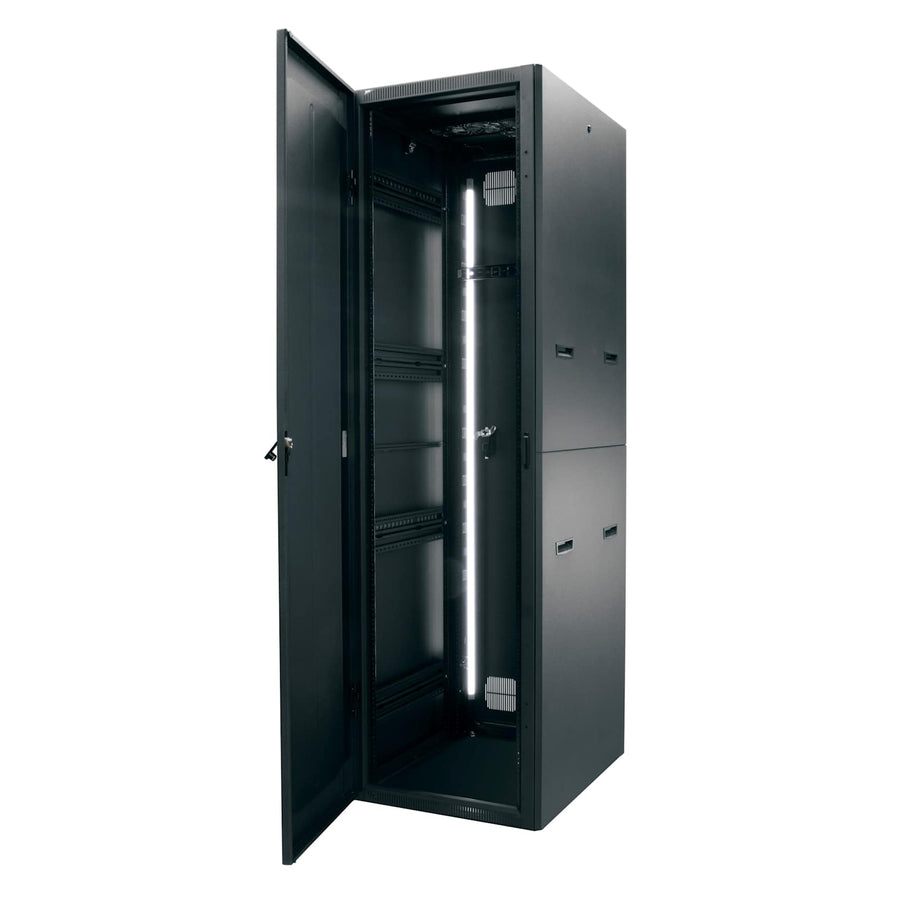

38 RU BGR Series Rack, 32 Inches Deep, Pre-Configured for Pro AV
38 RU floor-standing AV rack, 32" deep, pre-configured with Forward series cable management and blank panels
The BGR-3832-AV is a 38 RU BGR Series rack pre-configured specifically for professional AV installations. This floor-standing steel enclosure features a 32 in (81.3 cm) depth and a total height of 70.98 in (180.3 cm), providing a usable depth of 22.9 in (58.2 cm) and a usable height of 66.63 in (169.2 cm). This unit is built to support high-density environments with a total weight capacity of 3000 lbs (1360.8 kg). It is designed with a 19 in (48.3 cm) panel width and a black wrinkle powder coat finish. To accelerate on-site deployment, this SKU includes essential Forward series accessories, including four 1RU flanged blank panels (FWD-EB1), two 2RU flanged blank panels (FWD-EB2), and various horizontal and vertical cable management components like the Lever Lock™ vertical channel (LL-VC21) and lace bars. This rack is TAA compliant and features a rear door and swing handles.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| CFM | 276 |
| Depth | 32 in (81.3 cm) |
| Height | 70.98 in (180.3 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 38 RU |
| Shipping Weight | 375 lbs (170.1 kg) |
| Usable Depth | 22.9 in (58.2 cm) |
| Usable Height | 66.63 in (169.2 cm) |
All other specifications 15
| Weight Capacity | 3000 lbs (1360.8 kg) |
| Width | 23 in (58.4 cm) |
| Color | Black |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Gangable | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Product Configuration | Pre-Configured for Pro AV |
| Rack Rail Type | Forward Rackrail |
| Rack Type | Pre-Configured |
| Rear Door | Yes |
| Special Features | Installation Time Savers |
| UPC | 656747390715 |
| Patents | www.legrandav.com/patents |
Resources
You'll need these with it
Caster Base for BGR Series
CBS-BGR$285.30
PDT Low Profile Vertical Power Strip, 16 Outlet, 20A
PDT-1620C-NS$351.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
2 RU Select Series UPS Backup Power, 2200VA
UPS-S2200R$1,935.00
PDT Low Profile Vertical Power Strip, 16 Outlet, 15A
PDT-1615C-NS$308.70
Dual LED Work Light with Interconnect Cable
LT-CABUTL-DUAL$333.00
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection
PD-915R-PL$264.60
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 20 ft Cord
PD-915RC-20$264.60
2 RU Utility Rackshelf, 15.4 Inches Deep, Vented
U2V$96.30
1 RU Fan Tray, 6 Fans, 414 CFM & 220 - 240VAC
IFTA-6$762.30
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Questions about this part
What is the usable depth and height of the BGR-3832-AV?
The rack has a usable depth of 22.9 in (58.2 cm) and a usable height of 66.63 in (169.2 cm) within the 32 in (81.3 cm) total depth.
What cable management accessories are included in this pre-configured rack?
It includes Forward straight horizontal lacer bars (FWD-LB-1A-4PK), offset horizontal lacer bars (FWD-LB-2A-4PK), and vertical wire grids (FWD-LACE-WB3-35-40).
Is this rack TAA compliant for government contracts?
Yes, the BGR-3832-AV is TAA compliant, making it suitable for various professional and government installations.
Can I add additional components to this rack?
Yes, this rack is gangable and forward compatible, allowing for expansion and the addition of compatible Middle Atlantic accessories.
What is the maximum weight this 38 RU rack can support?
The BGR-3832-AV is rated for a total weight capacity of 3000 lbs (1360.8 kg).
