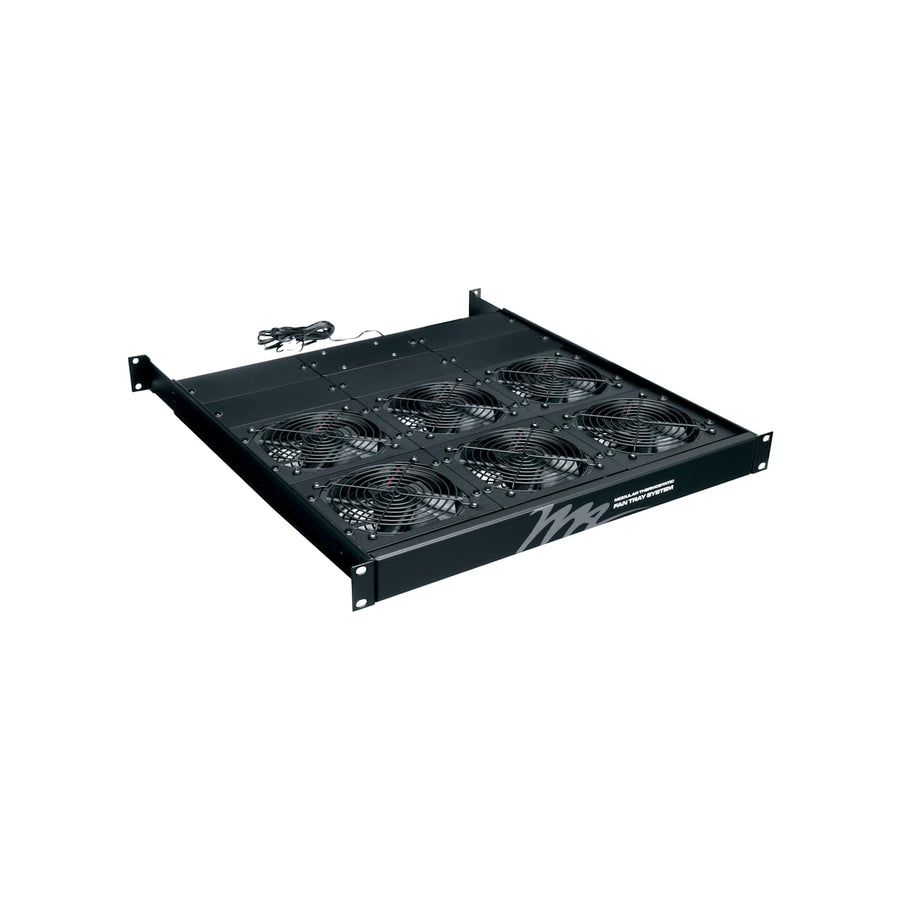

1 RU Fan Tray, 6 Fans, 414 CFM & 220 - 240VAC
1 RU fan tray system with 6 fans, 414 CFM total airflow, and integrated thermostatic control
The IFTA-6 is a 1 RU fan tray system designed to optimize rack cooling by placing airflow directly over the vents of hot-running equipment. This active thermal management solution uses six quiet 4" DC fans to deliver a combined 414 CFM of airflow. The system features an integrated thermostatic controller that manages automatic on/off cycles to conserve energy and reduce noise. To accommodate various rack depths, the tray offers an adjustable mounting range between 18 in and 32 in (457.2–812.8 mm). The unit is powered via a single power cord and operates on 220-240 VAC input. For installers requiring customized configurations, the tray features 8 fan mounting positions and supports the addition of up to 8 total fans. This TAA compliant component is ideal for international deployments and can be adjusted on the mounting rails to meet specific airflow needs.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 220-240 V |
| CFM | 414 |
| Depth | 18.1 in (46 cm) |
| Height | 1.75 in (4.4 cm) |
| Mounting Depth Max | 32 in (81.3 cm) |
| Mounting Depth Min | 18 in |
| Rack Units | 1 RU |
| Shipping Weight | 15.8 lbs (7.2 kg) |
All other specifications 8
| Volts DC | 12 VDC |
| Width | 19 in (48.3 cm) |
| Available Internationally | Yes |
| Component Type | Active |
| Manufacturer | Middle Atlantic |
| Mounting Points | 4 |
| Power Type | DC |
| UPC | 656747135507 |
Resources
Questions about this part
Will the IFTA-6 fit my rack depth?
The IFTA-6 has an adjustable mounting range that accommodates depths from 18 in (457.2 mm) to 32 in (812.8 mm).
What is the airflow capacity of the IFTA-6?
This system delivers a total of 414 CFM using six 4" DC fans, with each fan providing 69 CFM.
Can I add more fans to this system?
Yes, while this SKU includes 6 fans, the tray has 8 mounting positions and supports up to 8 total fans.
Does this unit require a separate power supply?
No, the IFTA-6 includes the power supply and thermostatic controller, powered by a single power cord.
What documentation is available for submittals?
For technical submittals, you can access the FTA Series Fan Tray A&E Specification Sheet or the 3D CAD Drawings via the Resources tab.
