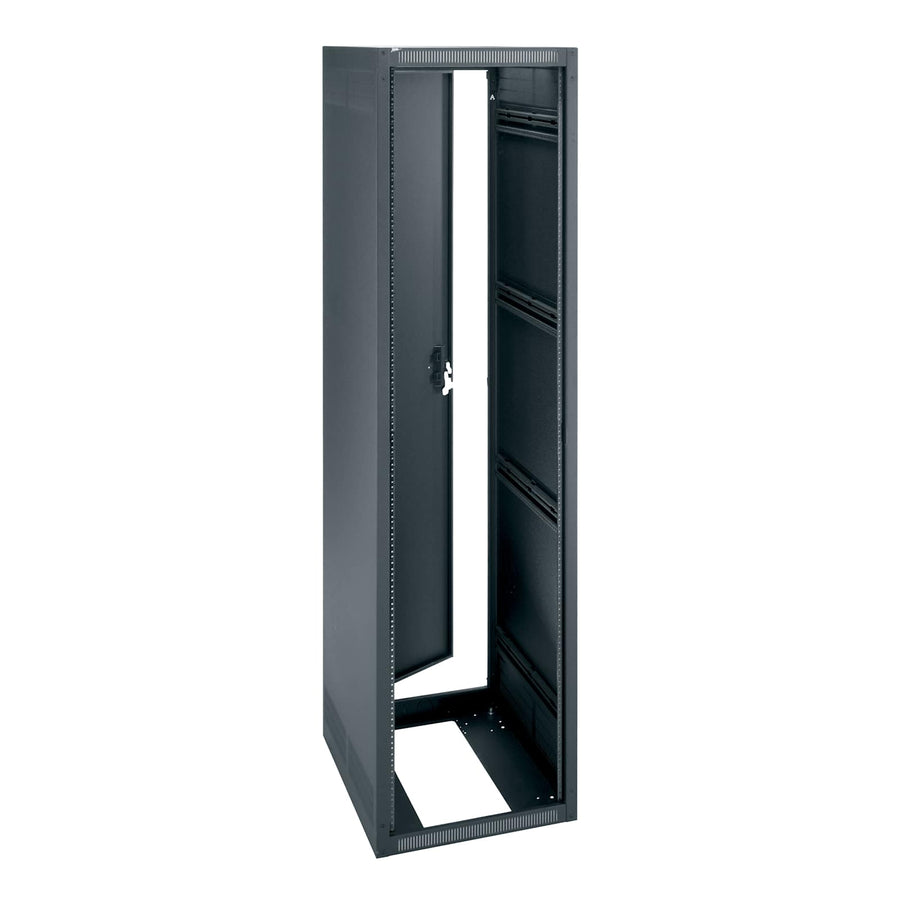

35 RU ERK Series Rack, 25 Inches Deep
35 RU floor-standing rack, 25 inches deep, featuring a key-locked rear door and seismic rating
The ERK-3525 is a 35 RU floor-standing rack designed for high-capacity professional AV installations. This frame-only configuration features fully welded steel construction with a black wrinkle powder coat finish. For thermal management and security, the rack includes a key-locked standard rear door and built-in top and bottom venting on the sides. This series is engineered to be gangable, allowing installers to create multi-bay partitioned installations for enhanced security and airflow control. It is equipped with standard front-adjustable 10-32 threaded rackrails that feature numbered spaces for precise component placement. For cable management, the rack provides convenient lacing points and slotted rackrail brackets. This model is TAA compliant and UL listed, supporting a UL load capacity of 2,500 lbs (1,134 kg). Additionally, the unit is seismic rated with a seismic load capacity of 591 lbs (268.1 kg) when used in conjunction with ERK-Z4 brackets.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 25 in (63.5 cm) |
| Height | 65.38 in (166.1 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 103.1 lbs (46.8 kg) |
| Rack Units | 35 RU |
| Shipping Weight | 135 lbs (61.2 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 23.47 in (59.6 cm) |
All other specifications 15
| Usable Height | 61.38 in (155.9 cm) |
| Width | 22 in (55.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | 10-32 |
| Rear Door | Yes |
| Seismic Rated | Yes |
| Ships Flat | No |
| TAA Compliant | YesYes |
| UPC | 656747006425 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 591 lbs (268.1 kg) |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50

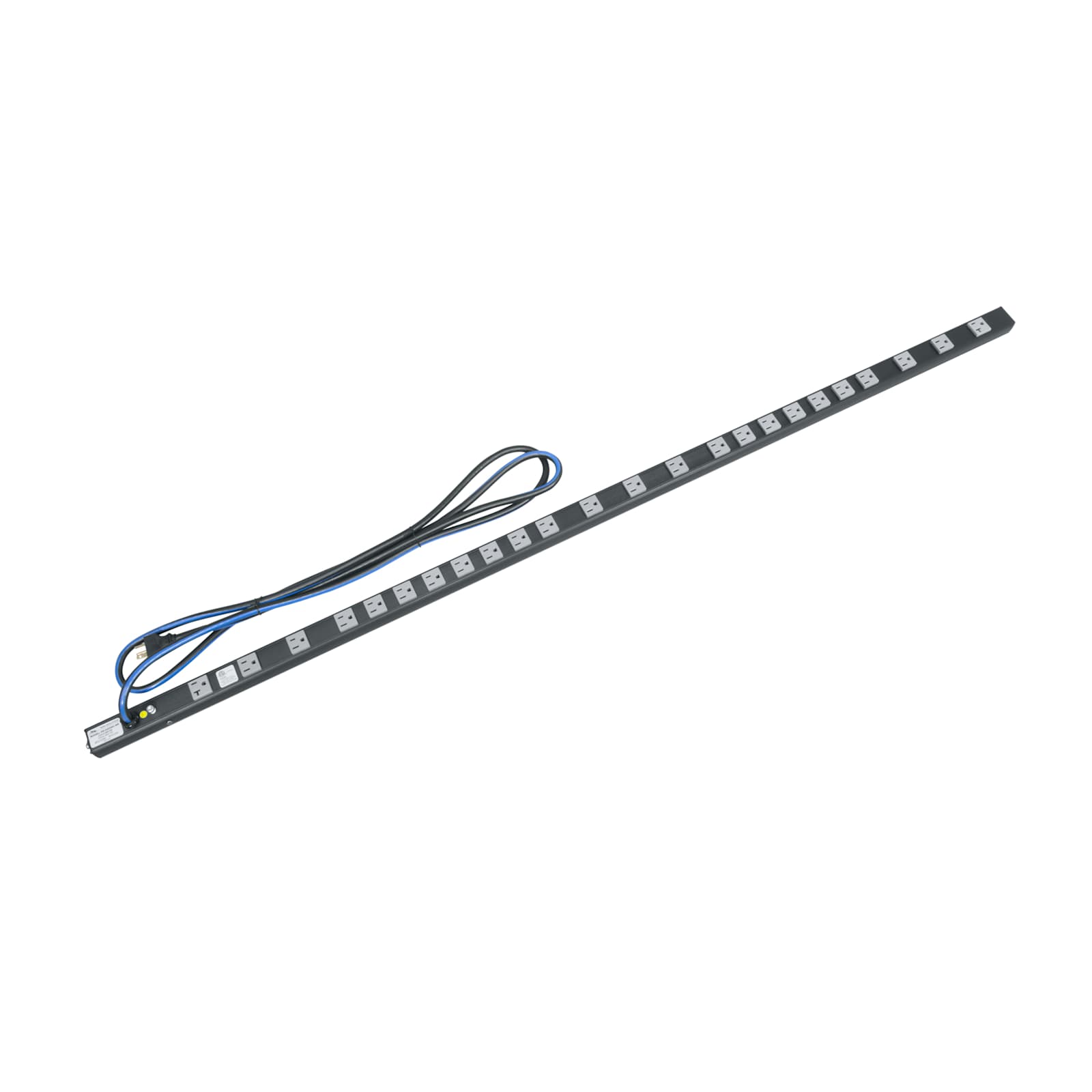

PD Slim High Density Vertical Power Strip, 24 Outlet, 20A
PD-2420SC-NS$330.30

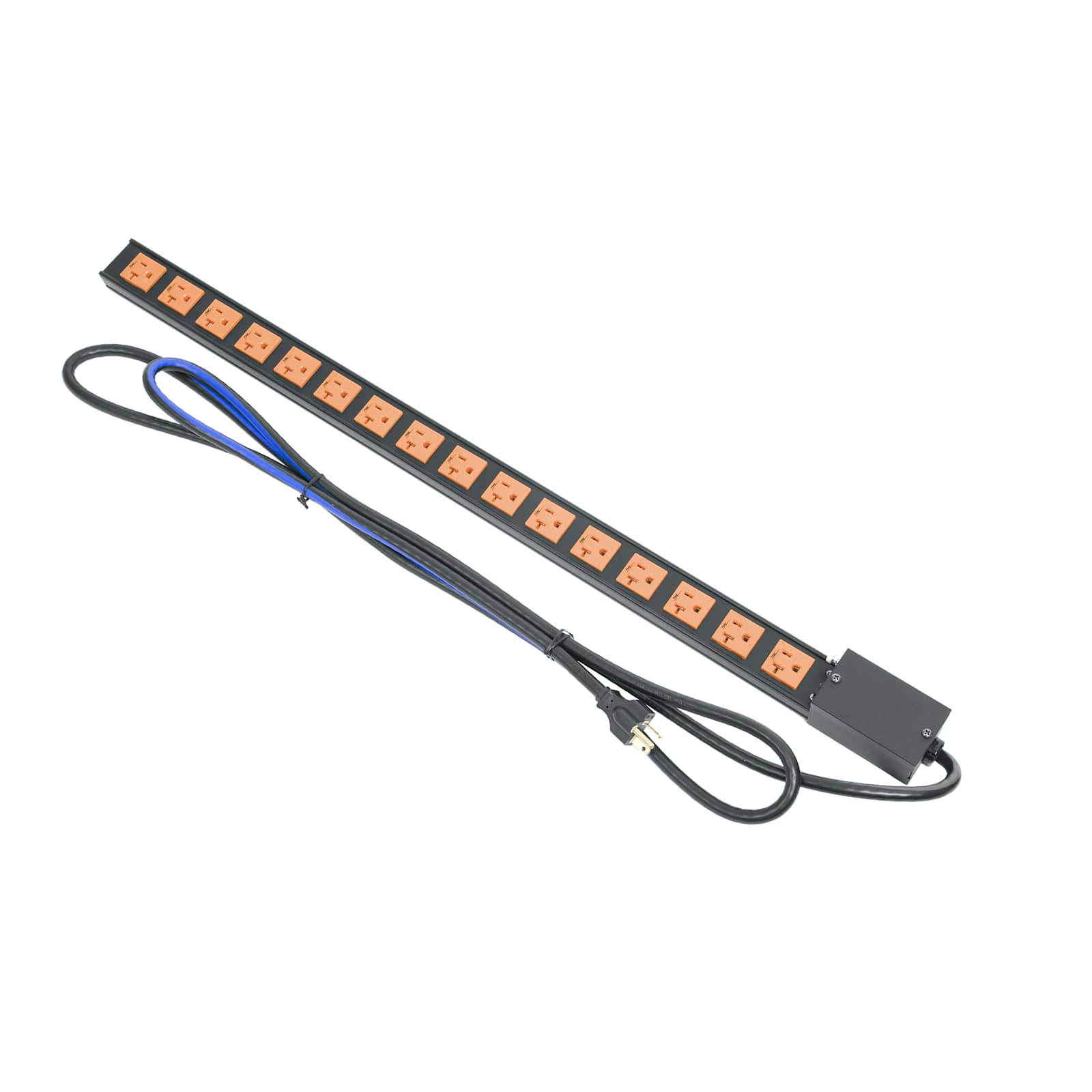

PDT Low Profile Vertical Power Strip, 16 Outlet, 20A
PDT-1620C-NS$351.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20

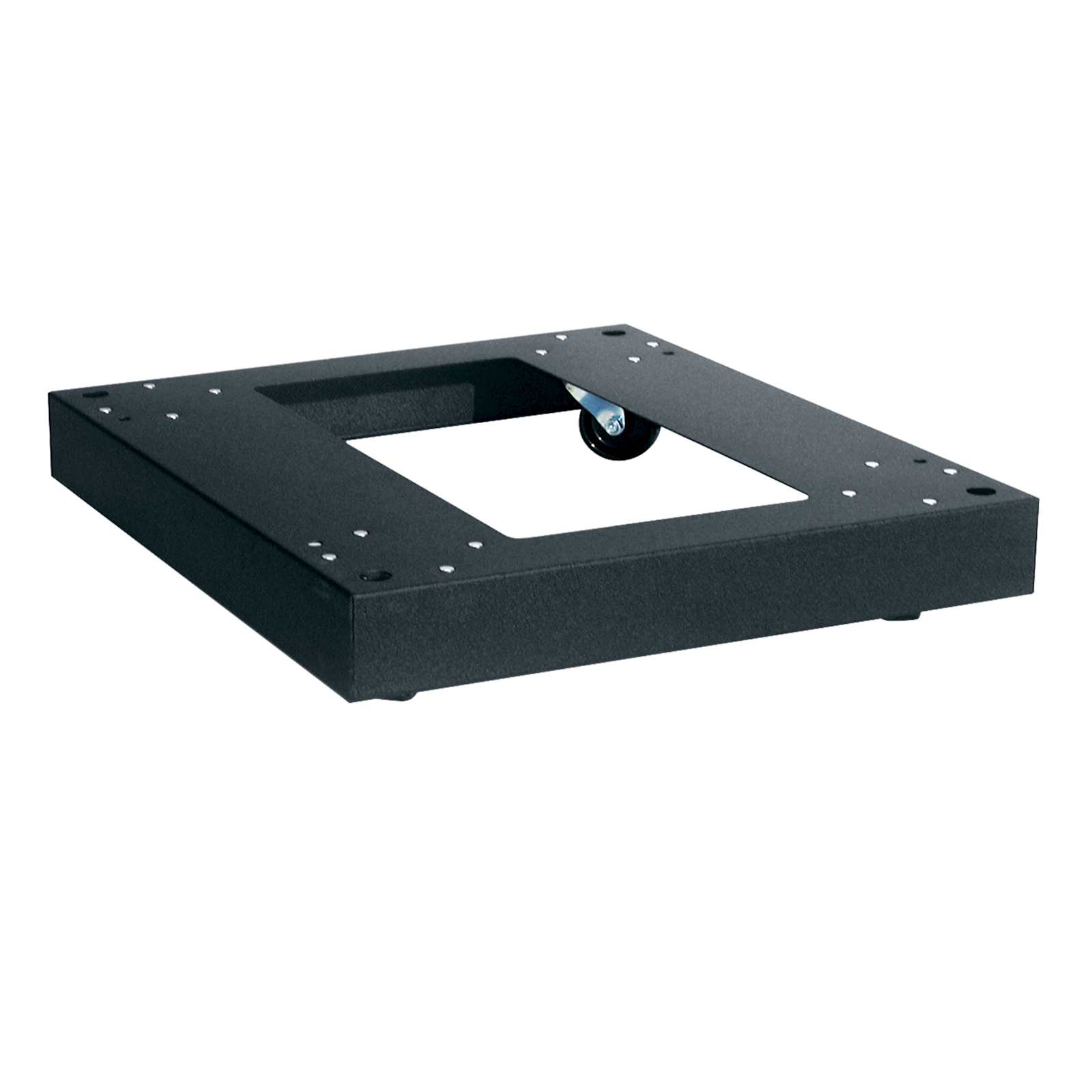

Caster Base for 25 Inch Deep ERK Series - 1,300 pounds
CBS-ERK-25$324.00
2 RU Select Series UPS Backup Power, 2200VA
UPS-S2200R$1,935.00
KO Series Rear Door Fan Kit, 190 CFM
KO-AWFP2$252.90
PDT Low Profile Vertical Power Strip, 16 Outlet, 15A
PDT-1615C-NS$308.70
2 RU Select Series UPS Backup Power, 1500VA
UPS-S1500R$1,598.40

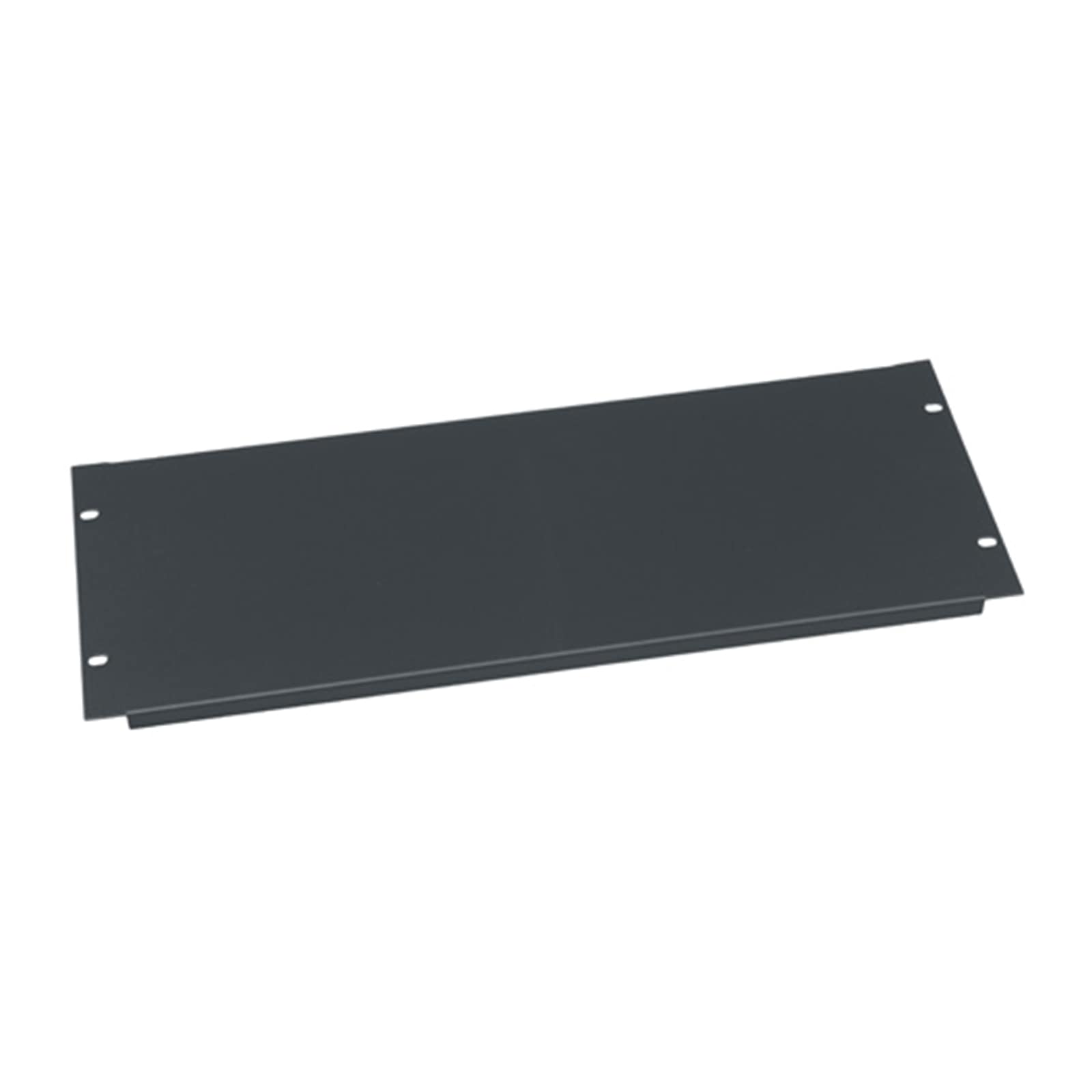

4 RU Flanged Blank Rack Panel, Wrinkled
WSB4$41.40

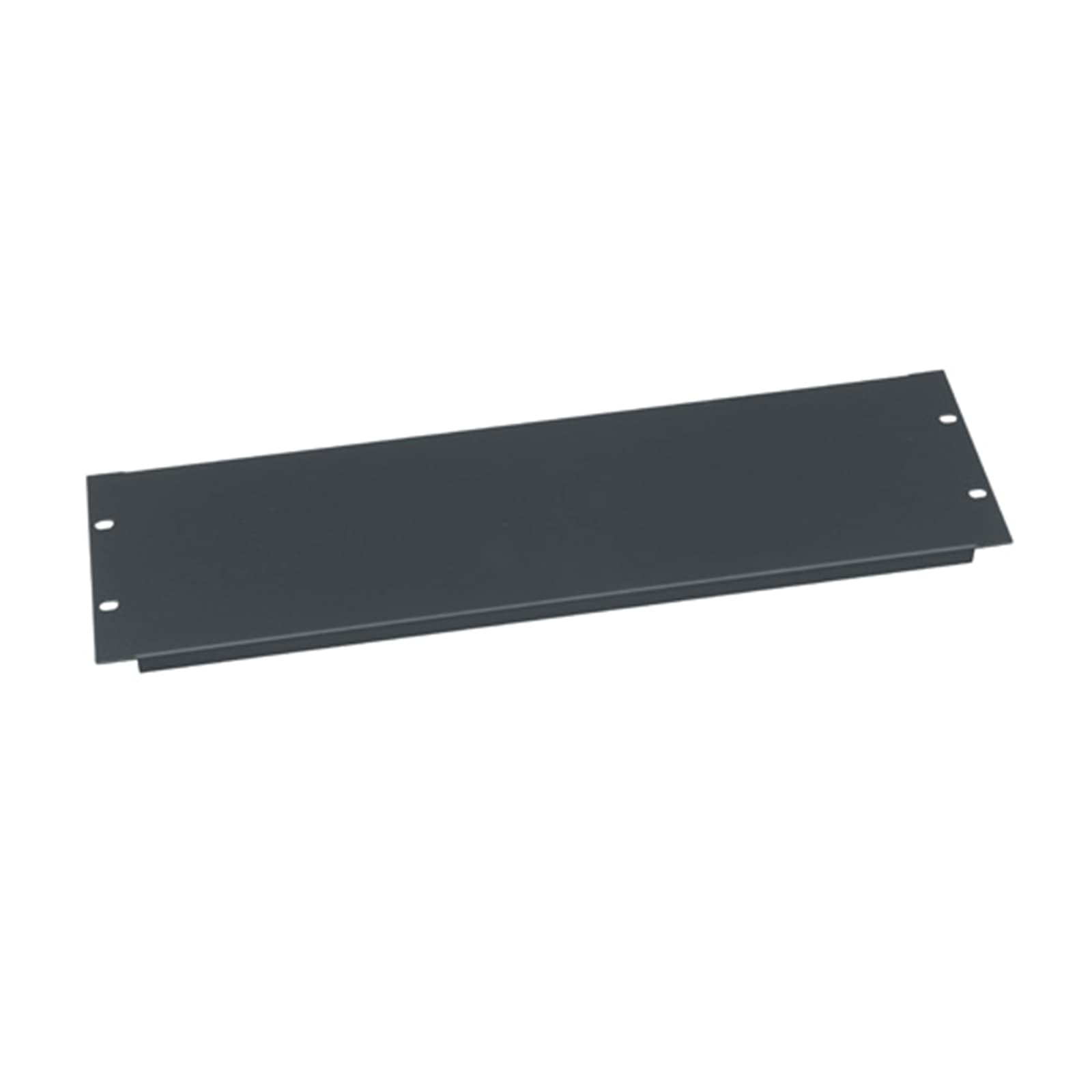

3 RU Flanged Blank Rack Panel, Wrinkled
WSB3$40.50
Questions about this part
What is the maximum load capacity for the ERK-3525?
The ERK-3525 has a UL listed load capacity of 2,500 lbs (1,134 kg). If you are utilizing the rack in a seismic application with ERK-Z4 brackets, the seismic load capacity is 591 lbs (268.1 kg).
Can the ERK-3525 be used to build multi-bay enclosures?
Yes, the ERK Series is designed to be gangable. This allows you to create partitioned multi-bay installations to improve thermal management control and enhance physical security.
What accessories are compatible with the ERK-3525?
You can customize this rack with various accessories, including the CBS-ERK-25 caster base, KO series rear door fan kits (KO-AWFP2), and various Middle Atlantic blank panels or power strips like the PD-2420SC-NS.
Is the ERK-3525 suitable for TAA compliant projects?
Yes, this product is TAA compliant and is manufactured in the USA.
What are the usable dimensions for equipment mounting?
The ERK-3525 provides a usable height of 61.38 in (155.9 cm) and a usable depth of 23.47 in (59.6 cm) for your mounted hardware.
