PD Slim High Density Vertical Power Strip, 24 Outlet, 20A
High-density vertical power strip with 24 outlets, 20A capacity, and a 10 ft SignalSAFE power cord

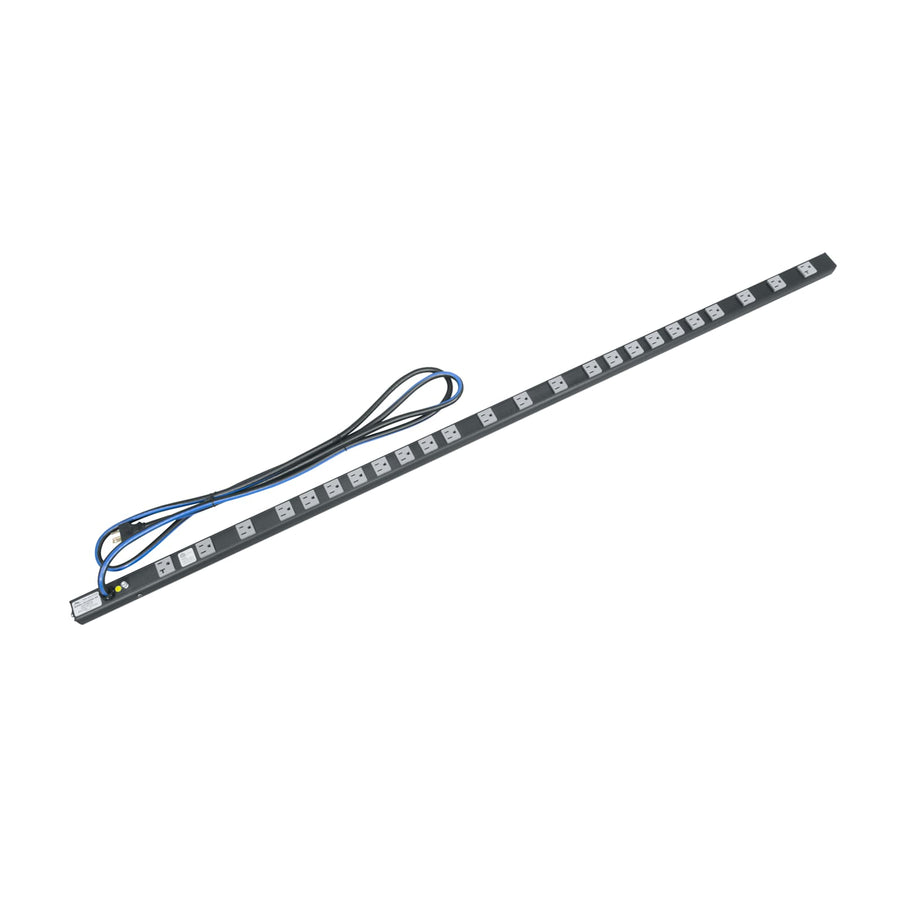

The PD-2420SC-NS is a high-density vertical power strip from the Select Series designed to provide reliable power to equipment-heavy racks. Measuring 60.6 in (153.9 cm) in height, this strip provides 24 outlets in a slim profile that mounts unobtrusively in the back of a rack. The narrow 1.71 in (4.3 cm) width and 1.64 in (4.2 cm) depth allow for high-density installation without consuming significant rack space. This 20 Amp, 120 VAC unit is ETL Listed and features a 10 ft (3.1 m) SignalSAFE power cord, which is engineered to minimize potential interference from AC magnetic fields produced by other equipment within the rack. Installation is streamlined using the included mounting hardware, which allows the PDU to snap onto the side of the rack quickly. The black anodized finish ensures a professional appearance within a standard rack environment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 20 Amp |
| Cord Length | 10 ft (3.1 m) |
| Depth | 1.64 in (4.2 cm) |
| Height | 60.6 in (153.9 cm) |
| Shipping Weight | 7 lbs (3.2 kg) |
| Volts AC | 120 VAC |
| Width | 1.71 in (4.3 cm) |
| Cable Type | Corded |
All other specifications 7
| Finish | Black Anodized |
| Number of Circuits | 1 |
| Outlet Count | 24 |
| Plug Type | 5-20P |
| TAA Compliant | No |
| UPC | 656747070686 |
| Certifications | ETL Listed |
Resources
Questions about this part
How do I mount the PD-2420SC-NS in my rack?
The PDU mounts vertically to the side of the rack and includes the necessary mounting hardware for a snap-in installation.
Will this power strip work with standard 20A 120V circuits?
Yes, this unit is rated for 20 Amp, 120 VAC and uses a 5-20P plug type.
Does this unit help prevent electromagnetic interference?
It features a SignalSAFE power cord specifically designed to minimize interference from AC magnetic fields from other rack equipment.
What is the difference between the PD-2420SC-NS and other Select Series strips?
This specific SKU features a 24-outlet configuration and a 10 ft cord length; other versions in the series offer different outlet counts and cord lengths.
Which document is needed for a submittal?
You can use the PD Series Slim Power Strips 3 Part Specification (docx) or the A&E Specification Sheet (PDF) for technical submittals.
