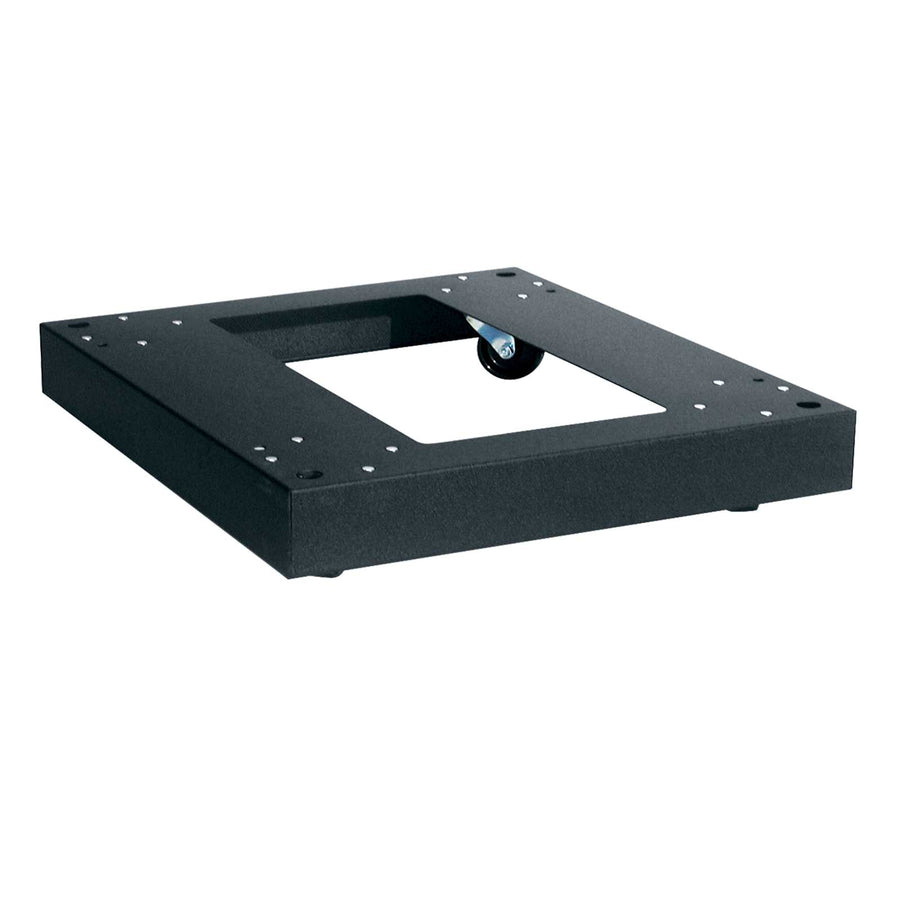

Caster Base for 25 Inch Deep ERK Series - 1,300 pounds
Skirted caster base for 25 in (63.5 cm) deep ERK Series racks, 1,300 lbs capacity, includes four 3" swivel casters
The Middle Atlantic CBS-ERK-25 is a skirted caster base designed specifically for the ERK Series rack systems with a 25 in (63.5 cm) depth. This base increases the total rack height by 4 in (10.2 cm) and features a robust steel construction finished with a black wrinkle powder coat. It is designed to bolt directly to the bottom of ERK Series racks, with the integrated skirt hiding the wheels to provide a cleaner, more professional aesthetic in finished environments. This base is UL Listed in the US and Canada and is TAA compliant. For mobility, it features four pre-installed 3" non-locking, commercial-grade swivel casters. The unit has a weight capacity of 1,300 lbs (589.7 kg) and measures 22 in (55.9 cm) in width.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 25 in (63.5 cm) |
| Height | 4 in (10.2 cm) |
| Product Weight | 17.2 lbs (7.8 kg) |
| Shipping Weight | 19.2 lbs (8.7 kg) |
| Weight Capacity | 1300 lbs (589.7 kg) |
| Width | 22 in (55.9 cm) |
| Base Series | ERK |
| Finish | Black Wrinkle Powder Coat |
| Style | Standard |
| UPC | 656747003325 |
| Certifications | UL Listed |
Resources
Questions about this part
What is the compatibility for the CBS-ERK-25 base?
This base is built specifically for the 25 in (63.5 cm) deep ERK Series rack systems.
How much height does this caster base add to my rack?
The skirted base adds 4 in (10.2 cm) to the overall height of the installed rack.
Does this base include the wheels?
Yes, it includes (4) 3" pre-installed non-locking commercial grade swivel casters.
What is the maximum weight capacity of this caster base?
The CBS-ERK-25 has a weight capacity of 1,300 lbs (589.7 kg).
Which document should I use for installation instructions?
You can refer to the CBS-ERK-XX Instruction Sheet (PDF) for installation guidance.
