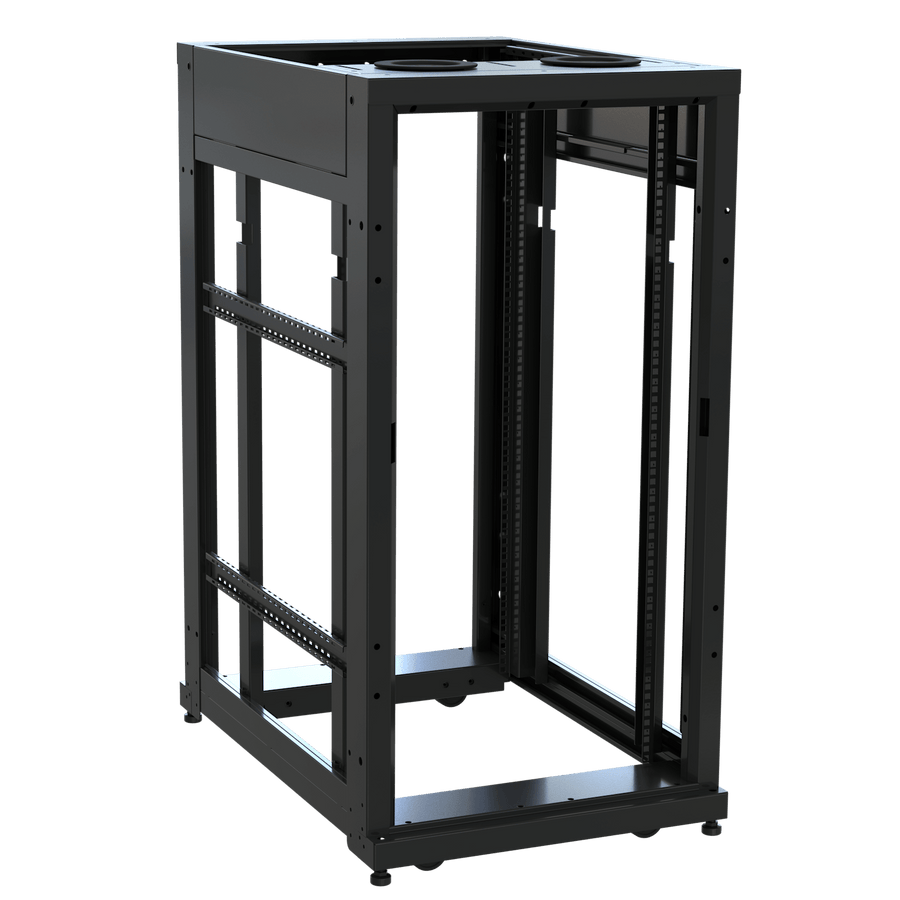

24 RU SNE Series Rack Frame, 36 Inches Deep, 24 Inches Wide with Cage Nut Rackrail
24 RU floor standing rack frame, 36 in deep, 24 in wide, seismic rated and TAA compliant
The Middle Atlantic SNE24F-CN-2436 is a 24 RU SNE Series Rack Frame designed for high-performance security and network enclosure configurations. This frame provides a 32.48 in (82.5 cm) usable depth and a 42 in (106.7 cm) usable height within a 36 in (91.4 cm) total depth footprint. Built for demanding environments, this unit is seismic rated and UL listed, supporting a UL load capacity of 3000 lbs (1,360.8 kg). It features a black texture powder coat finish and utilizes a cage nut rackrail system, including two pairs of rails. This frame is gangable and raised-floor ready, supporting both standard riser bases and seismic bases. While this unit is the frame only, it is compatible with the Lever Lock™ system to mount small devices in unused spaces. This specific model is TAA compliant and is manufactured in the USA.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 36 in (91.4 cm) |
| Height | 48.16 in (122.3 cm) |
| Rack Units | 24 RU |
| Shipping Weight | 160 lbs (72.6 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 32.48 in (82.5 cm) |
| Usable Height | 42 in (106.7 cm) |
| Width | 24.04 in (61.1 cm) |
All other specifications 9
| Federal Ops Country of Origin | USA |
| Finish | Black Texture Powder Coat |
| Gangable | Yes |
| Rack Rail Type | Cage Nut |
| Seismic Rated | Yes |
| System Type | Frame only |
| TAA Compliant | Yes |
| UPC | 656747238208 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Premium Online Series Replacement Battery Pack, 1500VA UPS & 1500VA Left UPS Expansion Battery
UPS-OLRBP-3$594.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
Questions about this part
Will the SNE24F-CN-2436 fit my network or security equipment?
Yes, this frame is purpose-built for IP, analog, digital, and hybrid systems. It features a 24.04 in (61.1 cm) width and includes two pairs of cage nut rackrails to accommodate standard rackmount hardware.
What is the weight capacity of the SNE24F-CN-2436?
This rack frame has a UL load capacity of 3000 lbs (1,360.8 kg). It is designed to support heavy security and networking deployments in both conditioned and unconditioned environments.
What else do I need to buy to complete this enclosure?
This SKU is the frame only. Depending on your requirements, you may need accessories like the WUSS17-5 Wide Unit Shelf System, various vent panels like the VTF3, or power solutions such as the PDX-920R NEXSYS™ rackmount power.
Is this rack suitable for seismic or raised-floor installations?
Yes, the SNE24F-CN-2436 is seismic rated and raised-floor ready. It can be configured with either seismic or standard riser bases to meet specific site requirements.
Which document should I use for submittals?
For technical drawings, you can use the SNE Series Enclosure CAD Technical Specification Drawings (dwg) or the Revit Model (dwg) available in the resources section.
