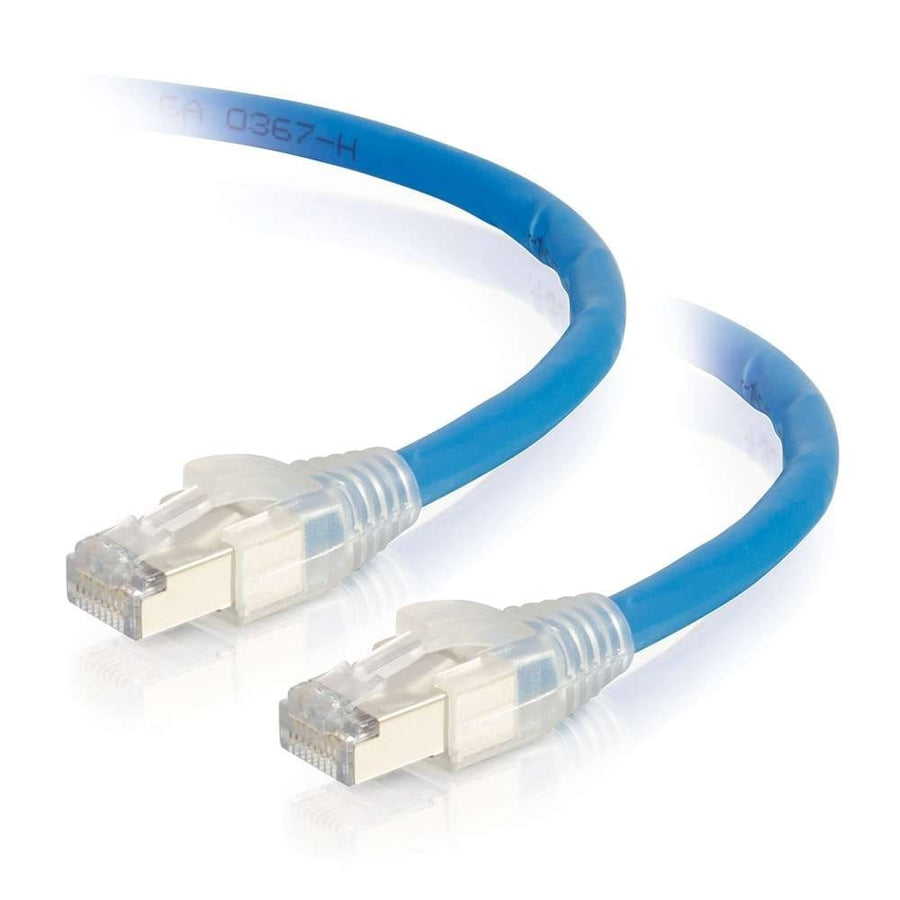

200ft (61m) HDBaseT Certified Cat6a Cable with Discontinuous Shielding - Plenum CMP-Rated - Blue

200ft Cat6a HDBaseT certified patch cable with discontinuous shielding and plenum CMP rating for high-density AV installations

The CG43176 is a 200 ft (61 m) HDBaseT Certified Cat6a patch cable designed for demanding high-definition audio/visual applications. Utilizing discontinuous shielding, this cable features metallized material held within a polymeric layer to attenuate electromagnetic interference and Alien Crosstalk without the need for grounding. This unique design allows for a nominal 0.265" diameter, facilitating higher cable density and a smaller bend radius in tight installation environments like conference rooms or digital signage hubs. This plenum-rated (CMP and FT6) cable is built with solid copper 23 AWG conductors and follows a T568B wiring scheme. It is engineered for HDBaseT Class A and B certification and supports data transmission up to 10 Gigabit. For power-intensive environments, it is designed to support PoE applications Type 1-4 according to IEEE 802.3bt draft D1.2. The snagless RJ-45 male connectors feature PVC hoods, making it an efficient choice for high-density AV racks and distribution points.
