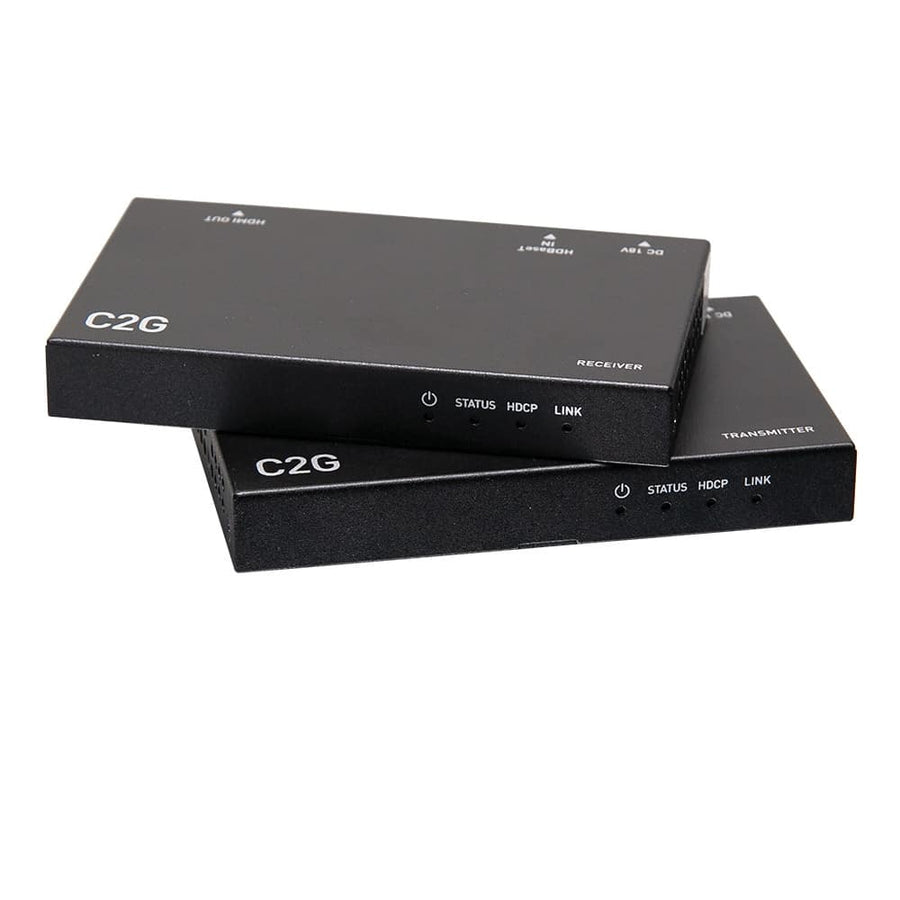

HDMI® HDBaseT Extender over Cat Box Transmitter to Box Receiver - 4K 60Hz
HDMI HDBaseT extender kit supporting 4K 60Hz video via a single Cat cable for distances up to 230 ft (70.1 m)
The C2G30010 is an HDMI HDBaseT Extender kit designed to transmit high-resolution video and audio signals over long distances. This active device uses a single Cat6a Ethernet cable to extend a 4K HDMI source to a display up to 230 ft (70.1 m). It is a unidirectional solution optimized for environments such as conference rooms, classrooms, and lecture halls where standard HDMI cables cannot reach the necessary distance. The kit utilizes 4:2:0 chroma subsampling and supports HDMI 1.4 and HDCP 2.2 protocols. This TAA compliant extender ensures uncompressed signal integrity from the transmitter to the receiver. For a complete installation, ensure you have high-quality cabling and consider compatible accessories like the C2G10411 Ultra High Speed HDMI cable. This kit is rated for operation in temperatures ranging from 32°F to 113°F (0°C to 45°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Max Distance Support | 230 ft (70.1 m) |
| Operating Humidity Max | 90% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | 32° - 113°F (0° - 45°C) |
| Shipping Weight | 1.51 lbs (0.7 kg) |
| Signal Transmission | Unidirectional |
| Storage Humidity Max | 90% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
All other specifications 14
| Storage Temperature Max | 518 Fahrenheit (270 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Chroma Subsampling | 4:2:0 |
| Color | Black |
| Connector 1 | (1) DC Power Plug(1) HDMI Female(1) RJ-45 Female |
| Connector 2 | (1) DC Power Plug(1) HDMI Female(1) RJ-45 Female |
| Product Type | Active DeviceExtenderHDBaseTKit |
| TAA Compliant | Yes |
| Technology Specifications | HDCP 2.2HDMI 1.4 |
| UPC | 757120300106 |
| Video Input Support | HDMI |
| Video Output Support | HDMI |
| Certifications | CEFCCNDAA 889Prop 65REACHRoHSTAATSCA |
| Warranty | 5 years |
Resources
You'll need these with it
Questions about this part
How far can the C2G30010 extend a 4K signal?
This HDBaseT extender supports a maximum distance of 230 ft (70.1 m) when using a single Cat6a Ethernet cable.
What video resolutions and standards are supported?
The C2G30010 supports 4K 60Hz video, HDMI 1.4, and is compatible with HDCP 2.2 protocols.
Is this extender TAA compliant for government contracts?
Yes, this kit is TAA compliant and also meets NDAA 889 requirements.
What type of cable is required for the extension?
A single Cat6a Ethernet cable is required to connect the transmitter and the receiver over the 230 ft span.
Does this kit require additional HDMI cables?
Yes, you will need HDMI cables to connect your source to the transmitter and the receiver to the display; compatible options include the C2G10411 Ultra High Speed HDMI cable.
