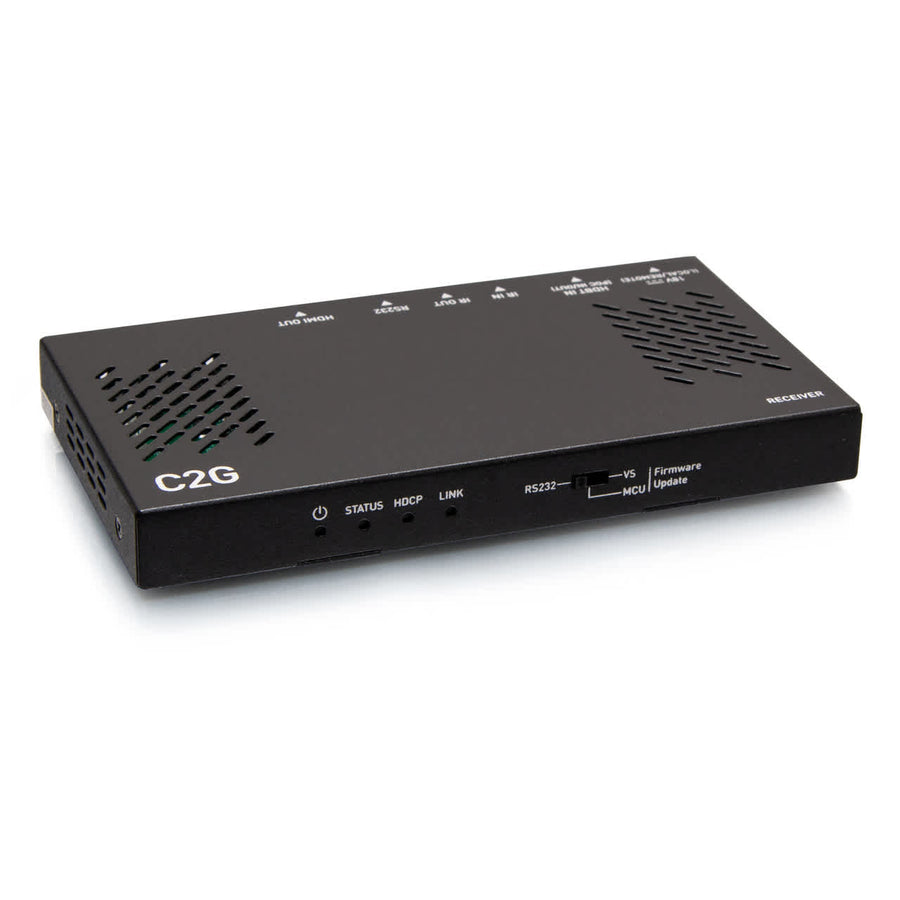

HDMI® Ultra-Slim HDBaseT + RS232 And IR Over Cat Extender Box Receiver - 4K 60Hz
HDBaseT receiver for 4K HDMI extension via Cat5e, Cat6, or Cat6a up to 230 ft (70.1 m)
The C2G31015 is an HDBaseT receiver designed to extend high-definition video and audio signals from a 4K source to a display via a single Ethernet cable. This active device is ideal for professional installations in lecture halls, classrooms, and conference rooms where distances exceed the limits of standard HDMI cabling. It supports 4K @ 60Hz resolutions using Cat6a cabling for runs up to 130 ft (40 m), while Cat5e or Cat6 cabling allows for 1080p extension up to 230 ft (70.1 m) and 4K extension up to 115 ft (35 m). This receiver features HDCP 2.2 compliance to ensure secure content transmission and supports advanced audio formats including Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD Master Audio, and PCM 7.1. With bi-directional PoC (Power over Cable) support, this unit can be powered from either the transmitter or receiver side, providing significant installation flexibility. The device includes an RS232 port for firmware upgrades and management. For optimal performance in high EMI/RFI environments or long coiled runs, shielded, solid conductor Cat6 or HDBaseT Certified Cat6a cabling is recommended.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Length | 2.92 in (7.4 cm) |
| Max Distance Support | 230 ft (70.1 m) |
| Operating Humidity Max | 90% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | 32° - 113°F (0° - 45°C) |
| Power Consumption | 8.8 W |
| Shipping Weight | 0.99 lbs (0.5 kg) |
| Signal Transmission | Unidirectional |
All other specifications 19
| Storage Humidity Max | 90% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 518 Fahrenheit (270 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Audio Specifications | Dolby AtmosDolby TrueHDDTS:XDTS-HD Master AudioPCM 7.1 |
| Chroma Subsampling | 4:2:0 |
| Color | Black |
| Connector 1 | (1) DC Power Plug(1) RJ-45 Female |
| Connector 2 | (1) HDMI Female |
| Port Selection | Remote Selector |
| Product Type | Active DeviceHDBaseTReceiver |
| TAA Compliant | No |
| Technology Specifications | HDCP 2.2HDMI 1.4 |
| UPC | 757120310150 |
| Video Output Support | HDMI |
| Video Resolution | 1080p1080p @ 60Hz4K4K @ 30Hz4K @ 60Hz |
| Certifications | FCCNDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10.2 GBPS |
| Warranty | 5 years |
Resources
You'll need these with it
Questions about this part
Will this C2G31015 receiver work with my HDBaseT transmitter?
Yes, this receiver is compatible with C2G30014, C2G30017, C2G30018, C2G30021, and C2G30022 transmitters.
What cable type is required for 4K @ 60Hz extension?
For 4K @ 60Hz distances up to 130 ft (40 m), Cat6a is required. For 4K up to 115 ft (35 m) or 1080p up to 230 ft (70.1 m), Cat5e or Cat6 is sufficient.
Does this unit require a separate power supply at the display?
Not necessarily. Due to bi-directional PoC support, you can power the system from the transmitter side, eliminating the need for a local power outlet at the receiver.
What audio formats are supported by the C2G31015?
The receiver supports Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD Master Audio, and PCM 7.1 audio via the HDMI output.
What documentation is available for system submittals?
The C2G31015 datasheet, installation manual, and HDBaseT comparison and selection guides are all available for technical review.
