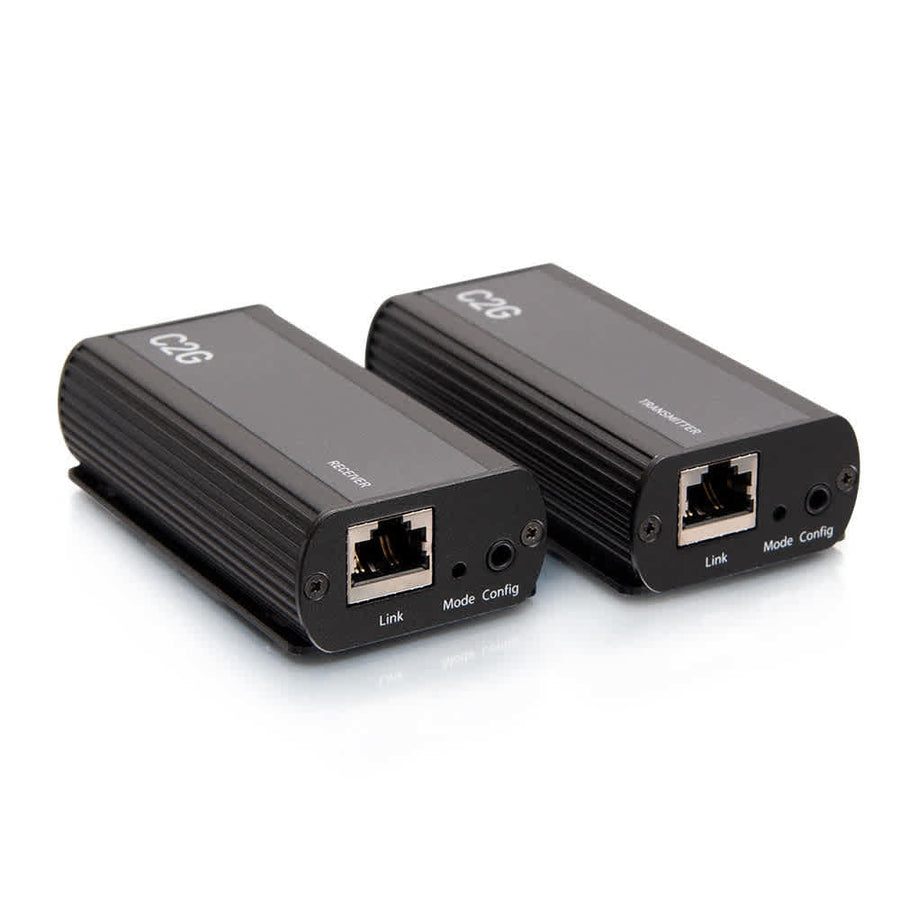

1-Port USB-C Extender Transmitter to Receiver Kit - USB 3.2 Gen 1 (5Gbps)
USB-C extender kit for data signals up to 33ft, supporting USB 3.2 Gen 1 at 5Gbps speeds
The C2G54278 is a 1-Port USB-C Extender Transmitter to Receiver Kit designed to overcome the native 16.4-foot limitation of standard USB-C cables. This active device kit uses USB 3.2 Gen 1 technology to facilitate data transfer at speeds up to 5Gbps. It is an ideal solution for conference rooms, classrooms, and huddle spaces where a host PC or laptop needs to connect to peripherals located up to 33ft (10m) away. This kit includes an included 3.38 in (8.6 cm) link cable to connect the transmitter and receiver. For maximum compatibility with dual-role USB devices, such as video bars with integrated host computing, the extender can be configured via DIP switch to Device Mode at the device end and Auto Mode at the host end. The system supports SuperSpeed 5Gbps, High-Speed, Full-Speed, and Low-Speed USB rates and can manage up to 30 USB devices including hubs.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Length | 3.38 in (8.6 cm) |
| Max Distance Support | 33ft |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 2.63 lbs (1.2 kg) |
| Signal Transmission | Unidirectional |
| Storage Humidity Max | 90% RH (Non-Condensing) |
All other specifications 14
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 518 Fahrenheit (270 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Color | Black |
| Connector 1 | (1) RJ-45 Female(1) USB-C Female |
| Connector 2 | (1) RJ-45 Female(1) USB-C Female |
| Power Supply | AC AdapterUSB Port |
| Product Type | Active DeviceKitReceiverTransmitter |
| TAA Compliant | No |
| Technology Specifications | USB 1.1USB 2.0USB 3.2 |
| UPC | 757120542780 |
| Certifications | CEFCCNDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 5 GBPS |
| Warranty | 5 years |
Resources
Questions about this part
Will the C2G54278 support video signals?
No, the USB-C 3.2 Gen1 port is used for data only and does not support video transmission.
How do I configure the C2G54278 for dual-role USB devices?
For dual-role devices like video bars, set the extender to Device Mode at the USB device end and Auto Mode at the host/PC end.
What is the maximum number of devices I can connect?
The extender supports a maximum of 30 USB devices, which includes connected hubs.
What power options are available for the C2G54278?
The kit provides bus power or an optional 5V 3A DC input via an AC adapter (not included in the kit).
What is the maximum distance for the C2G54278 extension?
The system provides a point-to-point range of 33ft (10m) when using the provided 3.38 in (8.6 cm) link cable.
