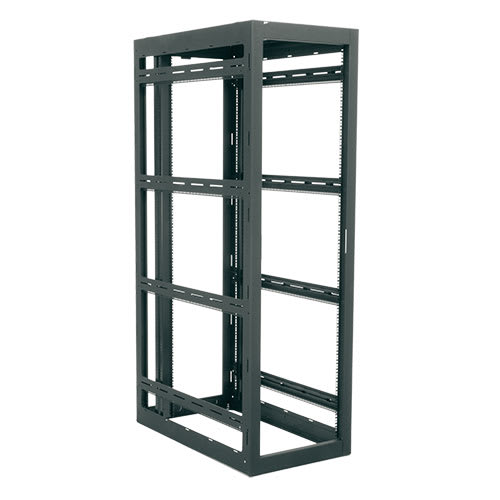

WMRK Series 24 Inches Wide Rack - WMRK-2442
24 inch wide floor-standing rack, 24 RU, designed for deep equipment in raised-floor environments with a 10,000 lbs weight capacity
The Middle Atlantic WMRK-2442 is a 24-inch wide, 24 RU floor-standing frame designed to support deep equipment in raised-floor environments. This configuration is a frame only, specifically optimized for 24" width to integrate into standard raised-floor layouts. It features fully welded construction to ensure long-term strength and stability under significant loads. The unit is seismic rated with an ASCE 7-10 certification, providing a seismic load capacity of 1090 lbs (494.4 kg) and a UL load capacity of 2500 lbs (1,134 kg). This rack includes two pairs of adjustable cage nut rackrails and one pair of z-rail sidemount adaptors, allowing it to accept servers and slide kits from all major manufacturers. For installation, it comes equipped with leveling feet, 100 units of 6mm cage nuts, and the necessary hardware. This TAA compliant rack can be gangable to create larger enclosed systems as project requirements expand.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 42 in (106.7 cm) |
| Height | 48.31 in (122.7 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 24 RU |
| Shipping Weight | 150 lbs (68 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 39.5 in (100.3 cm) |
| Usable Height | 42 in (106.7 cm) |
All other specifications 13
| Weight Capacity | 10000 lbs (4535.9 kg) |
| Width | 23.94 in (60.8 cm) |
| Federal Ops Country of Origin | USA |
| Gangable | Yes |
| Product Configuration | Frame Only |
| Rack Rail Type | Cage Nut |
| Seismic Rated | Yes |
| Side Panel | No |
| TAA Compliant | Yes |
| UPC | 656747099755 |
| ASCE Number | 7-10 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 1090 lbs (494.4 kg) |
Resources
You'll need these with it
PDT Low Profile Vertical Power Strip, 16 Outlet, 20A
PDT-1620C-NS$351.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
550 CFM Fan Top for ERK Series with Controller ERK Series
ERK-10FT-FC$877.50
NEXSYS™ 1000VA, 15 Amp Online UPS Backup Power System, Bank Outlet Control
UPX-OL1000R-2$2,860.20
NEXSYS™ Online UPS Expandable Run Time Unit For 1000VA UPS Units
UPX-EXPANRUN-OL10$2,097.00
NEXSYS™ 1000VA, 15 Amp Online UPS Backup Power System with RackLink™, Bank Outlet Control
UPX-RLNK-OL1000R-2$3,300.30
NEXSYS™ Online UPS Expandable Run Time Unit For 1500VA UPS Units
UPX-EXPANRUN-OL15$2,437.20
NEXSYS™ 1500VA, 15 Amp Online UPS Backup Power System, Bank Outlet Control
UPX-OL1500R-2$3,300.30
High Definition Rackmount Consoles with KVM
RM-KB-LCD17KVMHD$5,247.00
Questions about this part
Will this rack fit my deep server equipment?
Yes, the WMRK-2442 provides a 39.5 in (100.3 cm) usable depth, making it suitable for mounting deep equipment in raised-floor environments.
Is the WMRK-2442 suitable for seismic applications?
Yes, this is a seismic-rated rack with an ASCE 7-10 certification and a seismic load capacity of 1090 lbs (494.4 kg).
Does this rack include the side panels?
No, this specific SKU is a frame-only configuration and does not include side panels.
What hardware is included for installation?
The rack comes with leveling feet, 100 qty of 6mm cage nuts, and the necessary hardware required for assembly.
Can I expand this rack into a larger enclosure?
Yes, the WMRK series is designed to be gangable, allowing you to join multiple units together when fully loaded.
