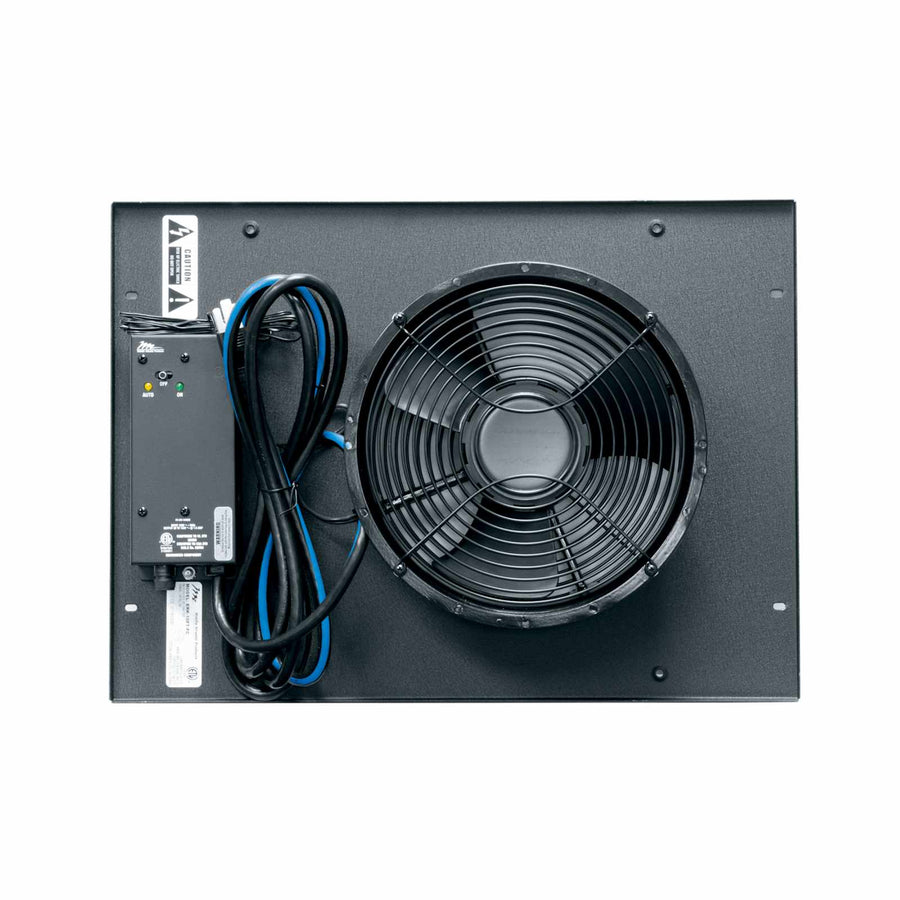

550 CFM Fan Top for ERK Series with Controller ERK Series
Thermostatically controlled fan top featuring a 10-inch fan with 550 CFM airflow and integrated proportional speed controller
The ERK-10FT-FC is a pre-assembled, thermostatically controlled fan top designed for the Middle Atlantic ERK series. This active component features a single 10-10 in (25.4-25.4 cm) fan that delivers 550 CFM of airflow to help manage thermal loads within your enclosure. Because it includes an integrated proportional speed fan controller, the fan runs only when necessary based on temperature. This intelligent control helps increase overall fan life, reduces operational noise, saves energy, and minimizes dust build-up within the rack. This unit is built with steel construction and a black finish. It is compatible with ERK, WMRK, and SCRK racks, as well as ERK-KD racks with a height of 35 spaces or higher. The system operates on 12 VDC power and is UL Listed. This assembly is shipped fully assembled to simplify the installation process.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 |
| CFM | 550 |
| Depth | 4.06 in (10.3 cm) |
| Fan Size | 10-10 in (25.4-25.4 cm) |
| Height | 14.38 in (36.5 cm) |
| Shipping Weight | 13 lbs (5.9 kg) |
| Volts DC | 12 VDC |
| Width | 19.75 in (50.2 cm) |
All other specifications 10
| Available Internationally | NoNo |
| Base Series | ERKERK |
| Component Type | Active |
| Controlled | Yes |
| Fan Controller Included | YesYes |
| Manufacturer | Middle AtlanticMiddle Atlantic |
| Power Type | DC |
| UPC | 656747061196 |
| Certifications | UL Listed |
| Warranty | 3 years3 years |
Resources
Questions about this part
Will the ERK-10FT-FC fit my ERK-KD rack?
Yes, this fan top is compatible with ERK-KD racks, provided the rack is 35 spaces or higher.
How does the fan controller work with the ERK-10FT-FC?
The included proportional speed fan controller adjusts operation so fans run only when needed, which helps reduce noise and energy consumption.
What is the airflow capacity of this fan top?
The ERK-10FT-FC provides 550 CFM of airflow using a single 10-10 in (25.4-25.4 cm) fan.
Which documents do I need for the installation or submittal?
You can refer to the ERK Series Ready-to-Assemble Enclosure A&E Specification Sheet or the Integrated Fan Top Instruction Sheet for technical details.
Is the ERK-10FT-FC a standalone unit or an accessory?
This is a pre-assembled fan top component designed specifically for use with the ERK, WMRK, SCRK, and ERK-KD series racks.
