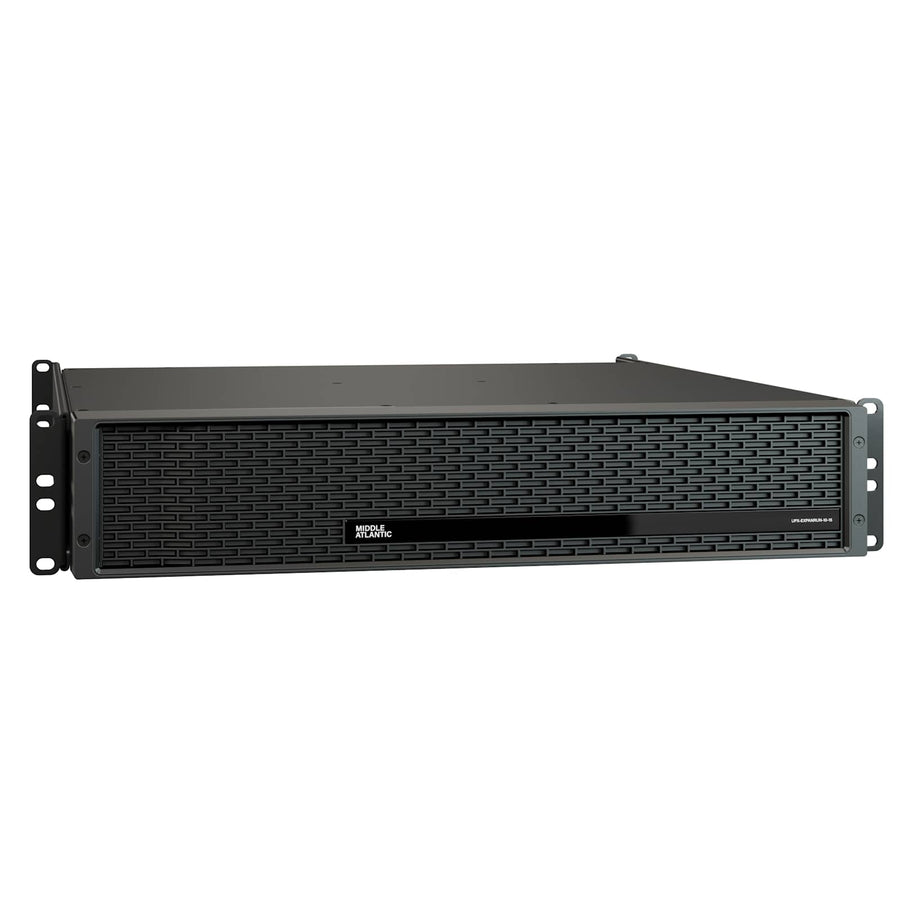

NEXSYS™ Online UPS Expandable Run Time Unit For 1000VA UPS Units
Expandable run time unit for 1000VA NEXSYS Online UPS systems, supporting up to 4 daisy-chained units
The UPX-EXPANRUN-OL10 is an expandable run time unit designed specifically for 1000VA NEXSYS Online UPS units. This 2 RU module provides essential additional battery capacity for AV systems during power anomalies. To maximize system uptime, installers can daisy-chain up to 4 of these units directly from the NEXSYS UPS or plug them in directly. The unit arrives pre-assembled and connected from the factory, including pre-installed 4-post rack ears, which allows for immediate rack mounting even if a 3rd pair of rack rails is present. Maintenance is streamlined via a front-access panel that allows for hot-swappable battery replacement without disrupting the active system. This unit operates within a temperature range of 32° to 104°F (0° to 40°C) and utilizes a NEMA 5-15P plug and NEMA 5-15R receptacle. The system requires a 120 VAC input and provides a 110-127 VAC output.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 VAC |
| AC Voltage Output | 110-127 VAC |
| Amps | 15 Amp |
| Cord Length | 6 ft (1.8 m) |
| Depth | 16 in (40.6 cm) |
| Height | 3.5 in (8.9 cm) |
| Mounting Depth Max | 32 in (81.3 cm) |
| Mounting Depth Min | 18 in |
All other specifications 20
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 41.4 lbs (18.8 kg) |
| Rack Units | 2 RU |
| VA Rating | 1000VA |
| Volts AC | 120 VAC |
| Volts DC | 24 VDC |
| Width | 19 in (48.3 cm) |
| Color | Black |
| Federal Ops Country of Origin | China |
| Isolated Ground | No |
| Mounting Points | 4 |
| Plug Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Special Features | NEXSYS UPS |
| TAA Compliant | No |
| Topology | Online |
| UPC | 656747397769 |
| Certifications | CSAFCCREACHRoHSTUV |
| Patents | www.legrandav.com/patents |
| Warranty | 2 Years Battery3 years |
Resources
You'll need these with it

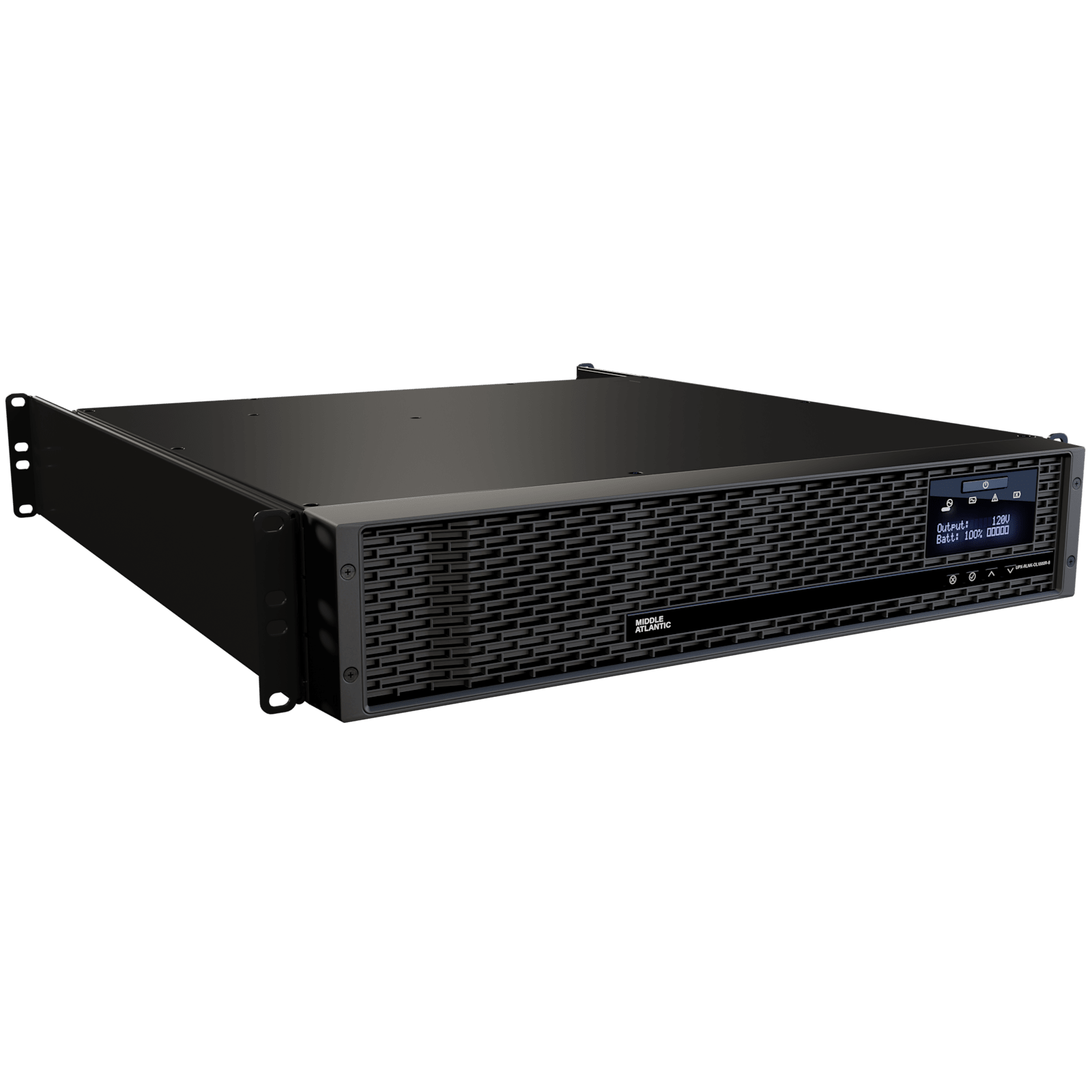

NEXSYS™ 1000VA, 15 Amp Online UPS Backup Power System with RackLink™, Individual Outlet Control
UPX-RLNK-OL1000R-8$3,740.40
NEXSYS™ 1000VA, 15 Amp Online UPS Backup Power System, Bank Outlet Control
UPX-OL1000R-2$2,860.20
NEXSYS™ 1000VA, 15 Amp Online UPS Backup Power System with RackLink™, Bank Outlet Control
UPX-RLNK-OL1000R-2$3,300.30
Questions about this part
How many UPX-EXPANRUN-OL10 units can I connect to my NEXSYS UPS?
You can connect up to 4 Expandable Run Time Units to a single NEXSYS UPS to extend your system's runtime.
Can the batteries in the UPX-EXPANRUN-OL10 be replaced while the system is running?
Yes, the unit features a hot-swappable battery design accessible through a front panel, allowing service without power disruption.
What do I need to do to mount this unit in a rack?
The unit comes with pre-installed rack ears for 4-post mounting, making it ready for installation out of the box.
What is the difference between this and the UPX-OL1000R-2?
While this is an expansion unit, the UPX-OL1000R-2 is a standalone NEXSYS 1000VA Online UPS system.
Which document should I use for the submittal or installation?
You can refer to the NEXSYS Online UPS Backup Power System A&E Specification Sheet for submittal details or the User Manual for runtime battery instructions.
