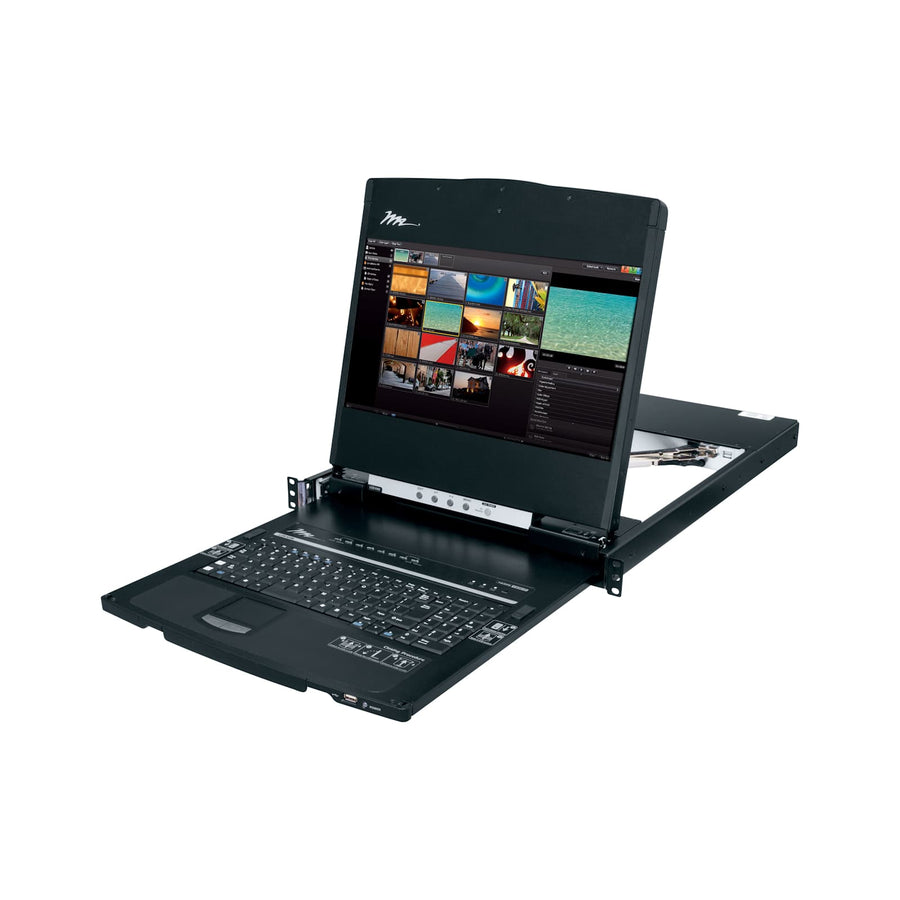

High Definition Rackmount Consoles with KVM
1RU 8-port KVM rackmount console featuring a 17" 1080P widescreen display and IP-enabled remote monitoring
The RM-KB-LCD17KVMHD is an 8-port KVM rackmount console designed for high-definition system monitoring and control within a 1RU footprint. This unit utilizes a 100% digital platform, providing an HDMI-certified signal path that includes both HDMI and DVI inputs with full HDCP compliance. Because it uses standard digital signals, no specialty cabling or additional accessories are required to maintain signal integrity between your source and the 17" 16:9 widescreen display. This specific KVM model is IP-enabled, allowing for remote management and monitoring. The dual rail design enables the monitor to stay in an open position for continuous system observation while the keyboard and touchpad remain recessed. For installation, the unit features quick-install rails for a fast one-person setup and requires a minimum mounting depth of 21.63 in.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 25.23 in (64.1 cm) |
| Height | 1.73 in (4.4 cm) |
| Mounting Depth Min | 21.63 in |
| Rack Units | 1 RU |
| Shipping Weight | 41.5 lbs (18.8 kg) |
| Usable Depth | 29.23 in (74.2 cm) |
| Width | 18.9 in (48 cm) |
| Material | Metal |
All other specifications 5
| Mounting Points | 4 |
| Style | 8 Port KVM |
| TAA Compliant | Yes |
| UPC | 656747241666 |
| Certifications | ETL ListedTAA |
Resources
Questions about this part
Will this KVM console work with my existing HDMI or DVI cables?
Yes, the RM-KB-LCD17KVMHD uses an industry-standard digital platform, so you can use standard HDMI and DVI cables without needing specialty accessories.
Can I manage this console remotely?
This KVM model is IP-enabled, which supports remote monitoring and management of your systems.
How deep does my rack need to be to install this unit?
The unit has a mounting depth minimum of 21.63 in and a usable depth of 29.23 in.
What is the difference between this and the standard configuration?
Unlike the standard console configuration designed for single systems, this SKU is the 8-port KVM model intended for managing multiple systems from a single station.
Which document should I use for technical submittals?
You can use the RM-KB-LCD Series HD Rackmount Console A&E Specification Sheet (PDF) for detailed technical data for your submittals.
