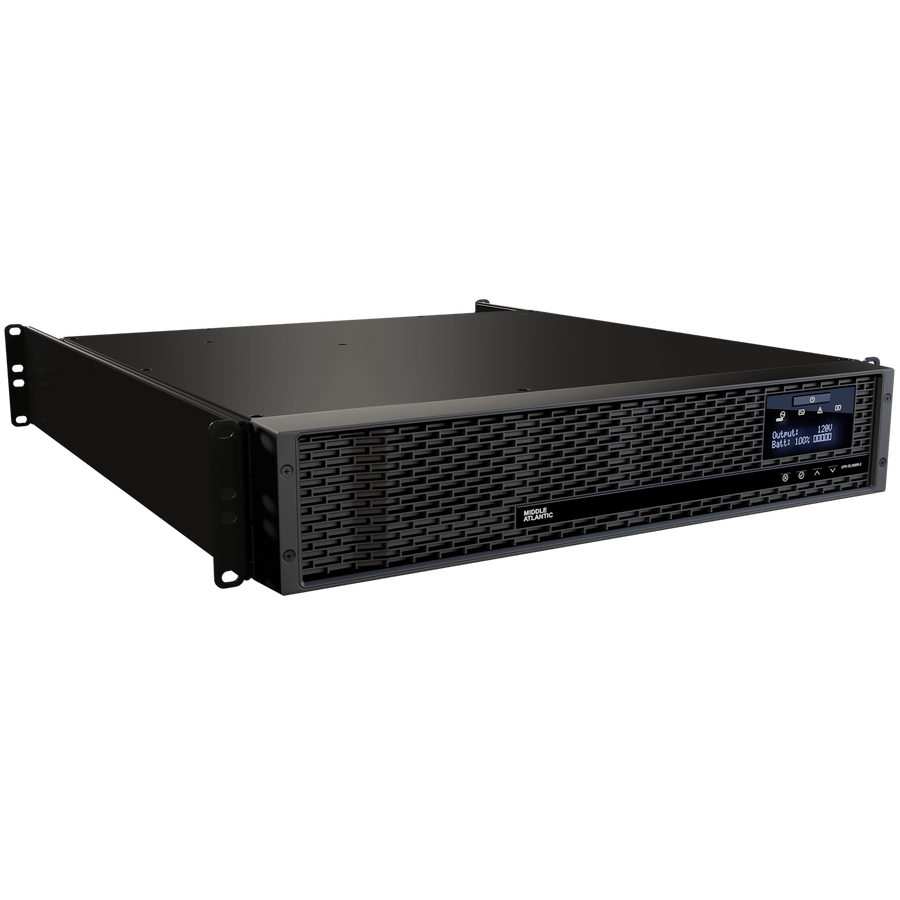

NEXSYS™ 1500VA, 15 Amp Online UPS Backup Power System, Bank Outlet Control
Online topology UPS providing 1350W of continuous power with 8 outlets organized into two controllable banks
The UPX-OL1500R-2 is a NEXSYS™ Online UPS Backup Power System designed specifically for professional AV environments. Operating with an online topology, this unit provides absolute zero transfer time, ensuring connected equipment is constantly powered by the battery during any power fluctuation. It delivers 1500VA/1350W of power through 8 NEMA 5-15R receptacles. These outlets are configured into two separate banks of 4 outlets each, allowing for bank-level control of connected devices. This model features pre-installed 4-post rack ears for immediate installation. For maintenance, the battery is hot-swappable and accessible via a front panel, allowing for service without disrupting the connected system. It includes a 6 ft (1.8 m) SignalSAFE™ IEC power cord and supports network-enabled management, though the network card must be purchased separately. This unit is Energy Star 2.0 certified and is designed to simplify onsite setup with the battery already connected from the factory.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Output | 110-127 VAC |
| Amps | 15 Amp |
| Cord Length | 6 ft (1.8 m) |
| Depth | 16 in (40.6 cm) |
| Height | 3.5 in (8.9 cm) |
| Mounting Depth Max | 34 in (86.4 cm) |
| Mounting Depth Min | 22 in |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
All other specifications 17
| Product Weight | 44.7 lbs (20.3 kg) |
| Shipping Weight | 51.68 lbs (23.4 kg) |
| VA Rating | 1500VA |
| Watts | 1350 W |
| Width | 19 in (48.3 cm) |
| Color | Black |
| Mounting Points | 4 |
| Network Card Included | No |
| Network Enabled | Yes |
| Outlet Control Type | Bank |
| Outlet Count | 8 |
| Plug Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| TAA Compliant | No |
| Topology | Online |
| UPC | 656747397813 |
| Certifications | CSAcTUVusDepartment of EnergyEnergy Star 2.0FCCREACHRoHS |
Resources
You'll need these with it
Questions about this part
Will the UPX-OL1500R-2 work with my existing rack?
Yes, this unit features pre-installed 4-post mounting brackets and is ready for rack mounting even if you have a third pair of rack rails.
Can I monitor this UPS over my network?
The unit is network-enabled, but you must purchase the NEXSYS™ UPS RackLink™ Network Card (UPX-RLNK-CARD) separately to enable network connectivity.
How do I perform battery maintenance on this model?
The battery is hot-swappable via a front access panel, allowing you to replace the battery without disrupting the power to your connected equipment.
What is the difference between the UPX-OL1500R-2 and other NEXSYS models?
This specific SKU provides 8 outlets with bank control, whereas other variants in the series offer different outlet counts or cable lengths.
What do I need for a full submittal or runtime calculation?
For technical documentation, you can refer to the NEXSYS Online UPS A&E Specification Sheet or use the provided Excel UPS Runtime Calculator.
