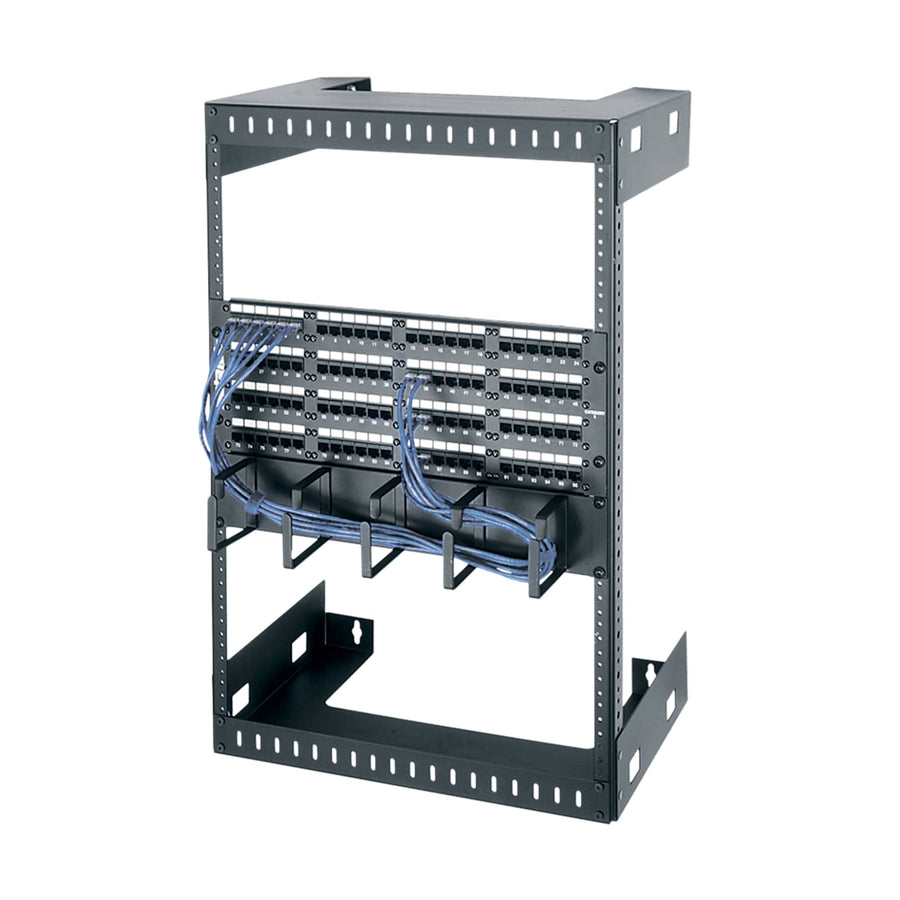

WM Series Open Frame Wall Rack - WM-8-12
8 RU open frame wall rack, 12 in (30.5 cm) usable depth, 200 lbs (90.7 kg) capacity, TAA compliant
The Middle Atlantic WM-8-12 is an 8 RU open frame wall rack designed for mounting data and telecommunications components. Its self-aligning, self-squaring design allows for rapid assembly, making it a highly efficient option for installers. The fixed, open-frame construction is particularly well-suited for mounting fiber-optic equipment, as the rigid design helps prevent the kinking or breaking of delicate glass fibers. Built from rugged steel, this rack features a 12 in (30.5 cm) usable depth and a 17.75 in (45.1 cm) total height. The 10-32 threaded rackrails ensure secure installation of equipment, while the 200 lbs (90.7 kg) weight capacity provides support for heavy hardware. This unit is TAA compliant and ships ready-to-assemble to facilitate flat shipment via UPS.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 12 in (30.5 cm) |
| Height | 17.75 in (45.1 cm) |
| Rack Units | 8 RU |
| Shipping Weight | 17.93 lbs (8.1 kg) |
| Usable Depth | 12 in (30.5 cm) |
| Usable Height | 14 in (35.6 cm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 19.78 in (50.2 cm) |
All other specifications 5
| Federal Ops Country of Origin | USA |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747024030 |
| Certifications | TAA |
Resources
You'll need these with it
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
3 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-3$69.30
2 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-2$50.40
3 RU Rack Vent Panel, Perforated with 25% Open Area - 6 Piece Contractor Pack
VTF3-CP6$211.50
Questions about this part
What is the usable space inside the WM-8-12?
The WM-8-12 provides 8 RU of rack space with a usable height of 14 in (35.6 cm) and a usable depth of 12 in (30.5 cm).
Can I use this rack for fiber-optic equipment?
Yes, the fixed design of this open frame rack is intended to prevent the kinking or breaking of glass fibers during installation.
What accessories are compatible with this rack?
You can install various accessories including the UMS1-11-5K shelf, UFA-14-5 rackshelf, and various VTP series vent panels.
What is the weight capacity for the WM-8-12?
This rack is rated for a weight capacity of 200 lbs (90.7 kg).
Is this rack TAA compliant?
Yes, the WM-8-12 is TAA compliant and is manufactured in the USA.
