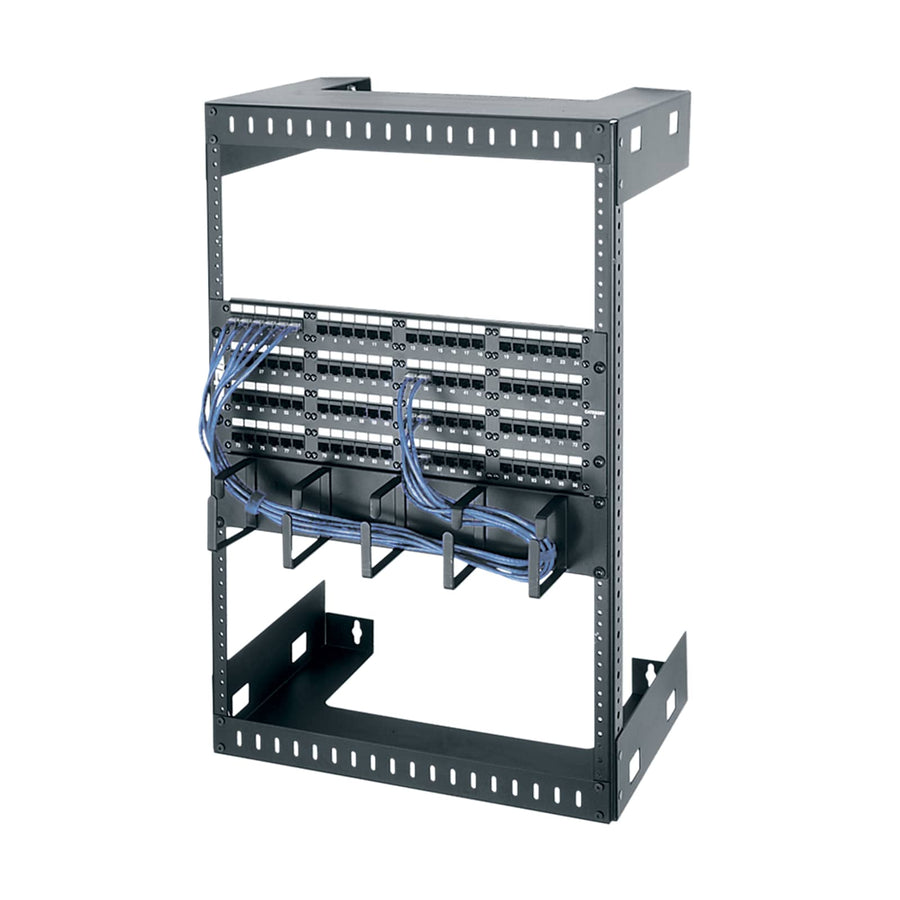

WM Series Open Frame Wall Rack - WM-30-18
30 RU open frame wall rack with 18 in (45.7 cm) usable depth and 125 lbs (56.7 kg) capacity
The Middle Atlantic WM-30-18 is an open frame wall rack designed for mounting data or telecommunications components. This 30 RU rack features a self-squaring, self-aligning design that simplifies assembly for the installer. The rugged steel construction is specifically suited for mounting fiber-optic equipment, as the fixed design helps prevent the kinking or breaking of glass fibers. This unit arrives ready-to-assemble in a flat configuration, which allows for efficient shipment via UPS. It features 10-32 threaded rackrails and has a total weight capacity of 125 lbs (56.7 kg). This TAA compliant rack provides a 52.5 in (133.4 cm) usable height and an 18 in (45.7 cm) usable depth, making it an efficient solution for space-constrained installations. The WM-30-18 belongs to the WM Open Frame Wall Rack series, which is also available in other RU configurations such as 8 RU or 15 RU.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 18 in (45.7 cm) |
| Height | 56.25 in (142.9 cm) |
| Rack Units | 30 RU |
| Shipping Weight | 28 lbs (12.7 kg) |
| Usable Depth | 18 in (45.7 cm) |
| Usable Height | 52.5 in (133.4 cm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Width | 19.78 in (50.2 cm) |
All other specifications 5
| Federal Ops Country of Origin | USA |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747024009 |
| Certifications | TAA |
Resources
You'll need these with it
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
3 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-3$69.30
2 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-2$50.40
3 RU Rack Vent Panel, Perforated with 25% Open Area - 6 Piece Contractor Pack
VTF3-CP6$211.50
3 RU Rack Vent Panel, Perforated with 25% Open Area
VTF3$40.50
Questions about this part
What is the usable depth and height for the WM-30-18?
The WM-30-18 provides a usable height of 52.5 in (133.4 cm) and a usable depth of 18 in (45.7 cm).
What accessories are compatible with this 30 RU rack?
Compatible accessories include the WUSS17-5 Wide Unit Shelf System, various VTP rack vent panels, and PDC-915R-6 rackmount power units.
Will this rack support my fiber-optic equipment?
Yes, the fixed design of this open frame rack is intended to prevent the kinking or breaking of glass fibers during installation.
How much weight can this wall mount rack hold?
This rack has a total weight capacity of 125 lbs (56.7 kg).
What is the difference between this and the 15 RU version?
The WM-30-18 is a 30 RU model, whereas the WM series also offers a 15 RU version for shorter vertical space requirements.
