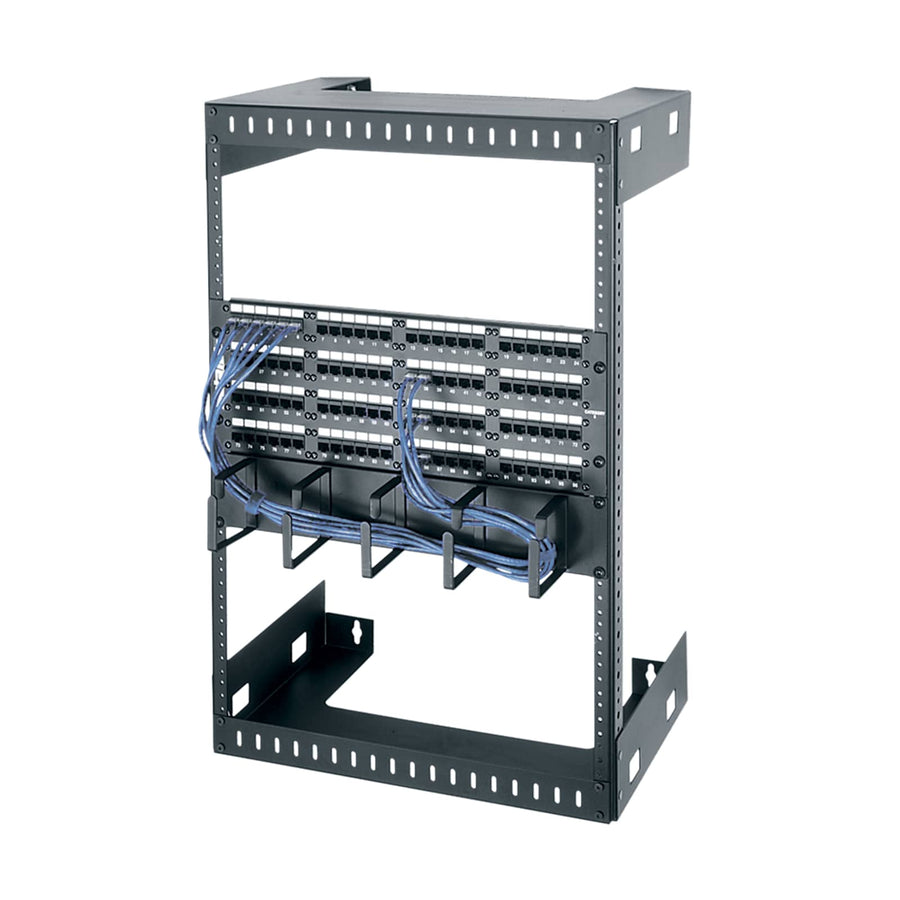

WM Series Open Frame Wall Rack - WM-15-12
15 RU open frame wall mount rack, 12 in (30.5 cm) depth, 200 lbs capacity, with a self-aligning design for fast assembly
The WM-15-12 is a 15 RU open frame wall mount rack designed for mounting data or telecommunications components. This Middle Atlantic rack features a self-squaring, self-aligning design that allows for quick and easy assembly upon arrival at the job site. Its fixed, open-frame structure is particularly beneficial for housing fiber-optic equipment, as it prevents the kinking or breaking of delicate glass fibers. Built with rugged steel construction, this rack has a total usable height of 26.25 in (66.7 cm) and a 12 in (30.5 cm) usable depth. It is TAA compliant and carries a weight capacity of 200 lbs (90.7 kg). The unit ships ready-to-assemble in a flat configuration for efficient shipping and includes the necessary rack screws for installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 12 in (30.5 cm) |
| Height | 30 in (76.2 cm) |
| Rack Units | 15 RU |
| Shipping Weight | 19.21 lbs (8.7 kg) |
| Usable Depth | 12 in (30.5 cm) |
| Usable Height | 26.25 in (66.7 cm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 19.78 in (50.2 cm) |
All other specifications 5
| Federal Ops Country of Origin | USA |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747023958 |
| Certifications | TAA |
Resources
You'll need these with it
10-32 Rackscrew Black Gloss - 100 Piece
HG$96.30
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
3 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-3$69.30
2 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-2$50.40
3 RU Rack Vent Panel, Perforated with 25% Open Area - 6 Piece Contractor Pack
VTF3-CP6$211.50
3 RU Rack Vent Panel, Perforated with 25% Open Area
VTF3$40.50
Questions about this part
What is the capacity of the WM-15-12 rack?
This rack supports a weight capacity of 200 lbs (90.7 kg) and provides 15 RU of vertical space.
Is the WM-15-12 TAA compliant?
Yes, this model is TAA compliant and was manufactured in the USA.
What accessories are compatible with this rack?
Compatible components include WUSS11-5 wide unit shelves, various VTP vent panels, and PDC-915R series power strips.
How does the assembly work for the WM series?
The self-aligning design allows for fast assembly, and the rack is shipped in a flat configuration to simplify transport.
What is the usable depth for equipment mounting?
The WM-15-12 provides a usable depth of 12 in (30.5 cm) for mounting your components.
