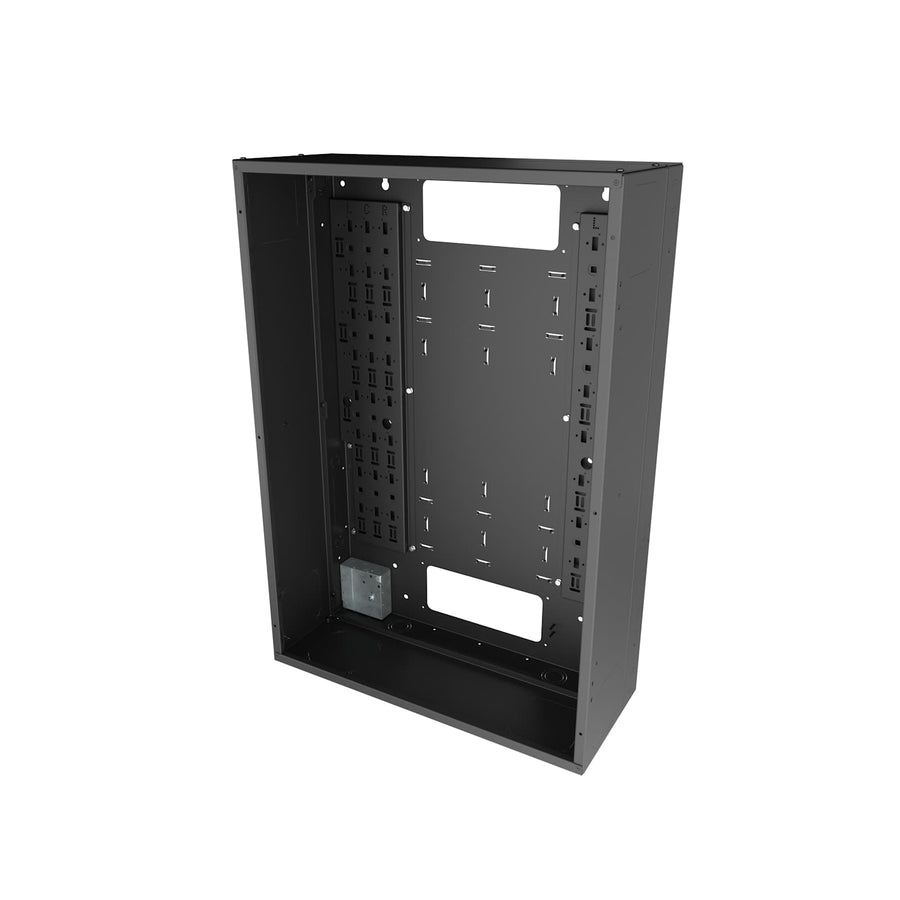

VWM Series Back Pan for Solid Door, 36" High x 10" Deep - Black
Vertical wall mount back pan for full solid doors, 36" high, 10" deep, with 150 lbs UL load capacity
The VWM-BP-3610-BW is a vertical wall mount back pan specifically engineered for use with a full solid door. Measuring 36" high and 10" deep, this steel back pan provides a sturdy foundation for vertical equipment mounting. This series is forward compatible, featuring native mounting to support forward cable management in the backpan. Installation requires the addition of rackrails; compatible VWM rackrail kits are available in both fixed and pivot styles and are designed to be moved easily across the left, center, or right positions, as well as up or down. This SKU is compatible with the Lever Lock system when using the LL-VWM-BPK. The unit features a durable black wrinkle powder coat finish and has a 150 lbs UL load capacity. For secure installation, users should utilize 10-32 tapped or cage nut rackrail kits.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 10 in (25.4 cm) |
| Height | 36 in (91.4 cm) |
| Product Weight | 46 lbs (20.9 kg) |
| Shipping Weight | 56 lbs (25.4 kg) |
| UL Load Capacity | 150 lbs (68 kg) |
| Usable Depth | 27.8 in (70.6 cm) |
| Width | 25 in (63.5 cm) |
| Available Internationally | Yes |
All other specifications 11
| Color | Black |
| Door Type | Full Door |
| Federal Ops Country of Origin | USA |
| Finish | Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Material | Steel |
| Rack Type | Wall |
| TAA Compliant | Yes |
| UPC | 656747291272 |
| Certifications | CSA ListedGREENGUARDProp 65REACHRoHSTAATSCAUL Listed |
| Patents | www.legrandav.com/patents |
Resources
You'll need these with it
115V Fan 4 1/2 Inch, 50 CFM at 30dBA
QFAN$136.80
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
PDT Low Profile Vertical Power Strip, 6 Outlet, 15A Basic Surge
PDT-615C$286.20
5 RU VWM Series Adjustable Rail/Mounting Bracket Kit
VWM-RR-5$100.80
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
1 RU Utility Panel, 10 Piece
UP1P$190.80
1 RU Utility Panel
UP1$25.20
3 RU Clamping Rackshelf Knockdown
RC-3$124.20
1 RU Plastic Cable Manager, 4 Inches Deep
PHCM-1-4$54.90
Dry Contact Sensor Rlnk-Cont For Use With Premium+ PDU With RackLink™
RLNK-CONT$216.00
4 RU Clamping Rackshelf Knockdown
RC-4$138.60
Questions about this part
What do I need to buy to complete the installation?
You must add rackrails to this back pan. VWM rackrail kits are available in fixed or pivot styles and are either 10-32 tapped or use cage nuts.
Can I use this with a Lever Lock system?
Yes, this back pan accepts the Lever Lock system when paired with the LL-VWM-BPK.
How much weight can this back pan support?
This unit has a UL load capacity of 150 lbs (68 kg).
What is the difference between the fixed and pivot rackrail kits?
While both are compatible, the rackrail kits allow for easy movement up, down, left, center, or right to accommodate your specific equipment layout.
Is this product TAA compliant?
Yes, the VWM-BP-3610-BW is TAA compliant and is manufactured in the USA.
