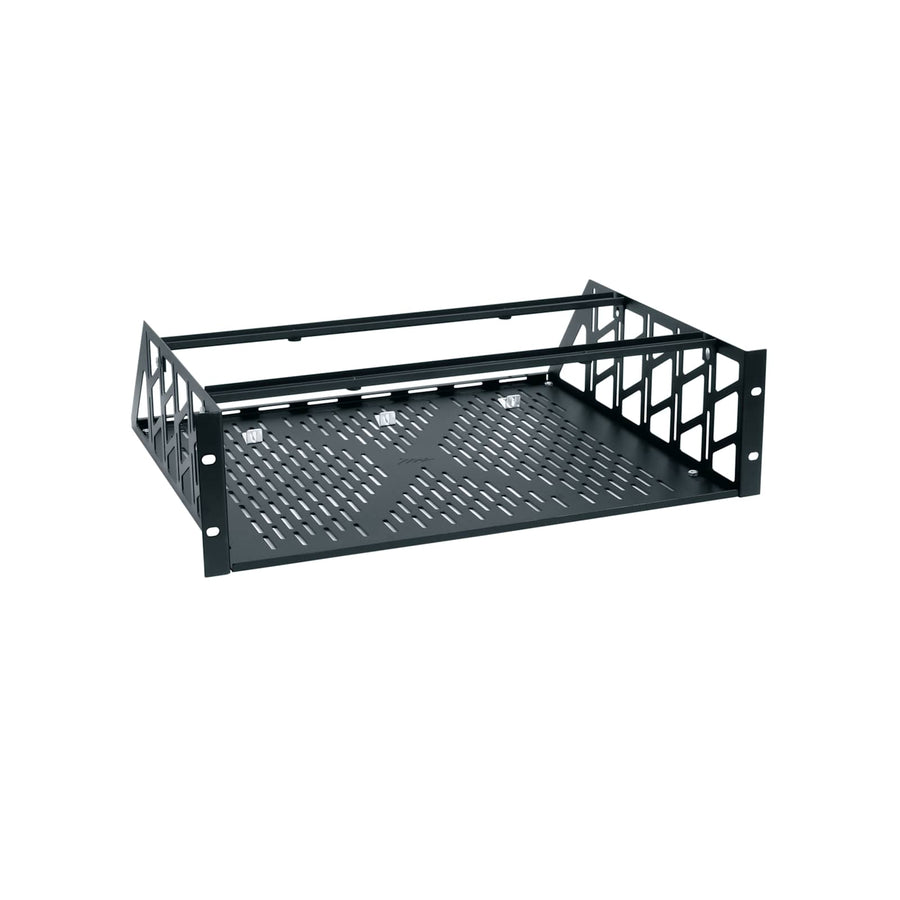

3 RU Clamping Rackshelf Knockdown
3 RU clamping rackshelf with rubber-lined clamps, 70 lbs weight capacity, and vented steel construction
The Middle Atlantic RC-3 is a 3 RU clamping rackshelf designed to secure individual components within a standard rack. This shelf utilizes rubber-lined clamps to hold equipment from the top, while adjustable rear "L" brackets prevent units from sliding backward during use. The 16-gauge steel construction features a durable black powder coat and is built to maintain structural integrity even in mobile applications. For thermal management, the design includes vented sides and a vented bottom to facilitate efficient cooling. The usable shelf area provides a surface of 17.38"W x 15.10"D. This RC Series model is TAA compliant and UL Listed. To manage heat in high-density setups, this shelf is compatible with various cooling accessories, such as the COMP-COOL50 CFM Component Cooler or the COMP-COOL50P Component Cooler with Platform.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 15.37 in (39 cm) |
| Height | 5.25 in (13.3 cm) |
| Rack Units | 3 RU |
| Shipping Weight | 8.6 lbs (3.9 kg) |
| UL Load Capacity | 50 lbs (22.7 kg) |
| Usable Depth | 15.1 in (38.4 cm) |
| Weight Capacity | 70 lbs (31.8 kg) |
| Width | 19 in (48.3 cm) |
| Mounting Points | 2 |
| UPC | 656747013775 |
| Certifications | UL Listed |
Resources
You'll need these with it
50 CFM Component Cooler with Platform
COMP-COOL50P$474.30
Shelf Mount Power, 8 Outlet, 15A, Basic Surge Protection
PD-815SC-PBSH$333.00
50 CFM Component Cooler, 220 - 240VAC
ICOMP-COOL50$379.80
50 CFM Component Cooler
COMP-COOL50$351.90
50 CFM Component Cooler with Platform, 220 - 240VAC
ICOMP-COOL50PDiscontinued
8 CFM Component Cooler, 220 - 240VAC - 3 Piece
ICOMP-COOL-3Discontinued
8 CFM Component Cooler, 220 - 240VAC
ICOMP-COOLDiscontinued
8 CFM Component Cooler - 3 Piece
COMP-COOL-3Discontinued
Questions about this part
What is the maximum load capacity for the RC-3?
The RC-3 has a weight capacity of 70 lbs (31.8 kg) and an UL Load Capacity of 50 lbs (22.7 kg).
What are the dimensions of the usable shelf area?
The usable shelf area for this 3 RU unit is 17.38"W x 15.10"D, with a total usable depth of 15.1 in (38.4 cm).
What cooling accessories can I add to this shelf?
You can enhance cooling by using compatible accessories like the COMP-COOL50 or the COMP-COOL50P Component Cooler with Platform.
Does this RC-3 shelf come assembled?
Yes, this model ships assembled and is ready for immediate installation in your rack.
Is this rackshelf TAA compliant?
Yes, the RC-3 is TAA compliant and is UL Listed.
