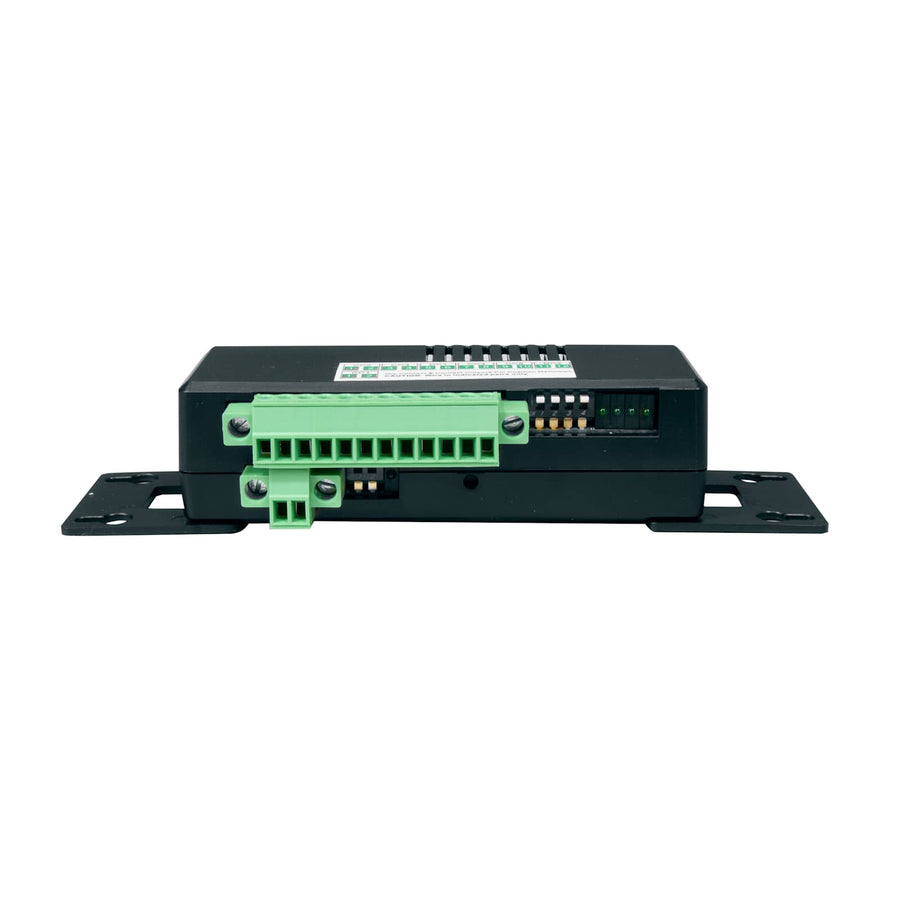

Dry Contact Sensor Rlnk-Cont For Use With Premium+ PDU With RackLink™
Dry contact sensor for use with Premium+ PDU with RackLink, featuring five digital ports and two 12V active dry contacts
The RLNK-CONT is a dry contact sensor designed specifically for use with the Premium+ PDU with RackLink. This sensor allows integrators to monitor and control various environmental or security elements by connecting multiple sensors together. It features two active dry contacts that are powered by 12V, which can be used to trigger external equipment such as fans or alarms. Additionally, the unit provides five digital ports for contact closures. These ports can be configured by the user as either Normally Closed (NC) or Normally Open (NO), with the factory default set to NC. These closures require customer-provided NC or NO switches to function as intended within a remote system management setup.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Weight | 1 lbs (0.5 kg) |
| TAA Compliant | Yes |
| UPC | 656747363313 |
Resources
You'll need these with it
NEXSYS™ 9 Outlet, 20 Amp Rackmount Power with Series Surge Protection
PDX-920R-SP$1,108.80
NEXSYS™ 9 Outlet, 15 Amp Rackmount Power with Series Surge Protection
PDX-915R-SP$907.20
Compact Premium+ PDU With RackLink™, 4 Outlet 15A & 2-Stage Surge
RLNK-P415$1,360.80
1 RU Select Series UPS Backup Power, 1000VA
UPS-S1000R$1,377.00
NEXSYS™ 2000VA, 20 Amp UPS Backup Power System with RackLink™, Individual Outlet Control
UPX-RLNK-2000R-8$3,850.20
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
NEXSYS™ 2000VA, 20 Amp UPS Backup Power System with RackLink™, Bank Outlet Control
UPX-RLNK-2000R-2$3,519.90
Select Series PDU with RackLink™, 9 Outlet
RLNK-915R$715.50
NEXSYS™ 2000VA, 20 Amp Online UPS Backup Power System with RackLink™, Bank Outlet Control
UPX-RLNK-OL2000R-2$5,169.60
2 RU Select Series UPS Backup Power, 2200VA
UPS-S2200R$1,935.00
Questions about this part
What does the RLNK-CONT monitor?
The sensor can be used to monitor and control equipment such as door handles, alarms, or fans when connected through the RackLink system.
How do I configure the digital ports on this sensor?
Each of the five digital channels can be independently set to either Normally Closed (NC) or Normally Open (NO) to match your specific switch requirements.
Does this sensor require any additional hardware to work with my PDU?
The RLNK-CONT is designed for use with the Premium+ PDU with RackLink series. You must provide the NC or NO switches used for the five digital contact closures.
Is the RLNK-CONT TAA compliant?
Yes, this product is TAA Compliant.
What is the power requirement for the active dry contacts?
The two active dry contacts are powered by 12V.
