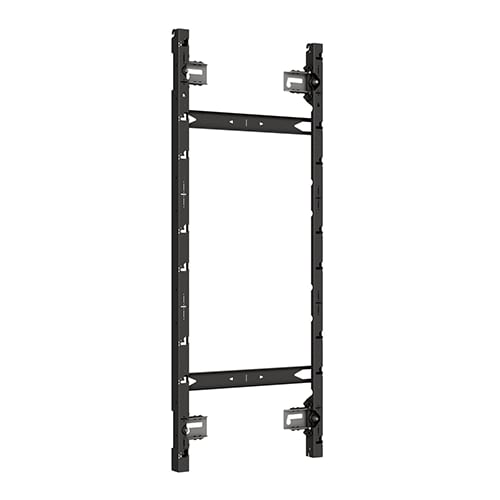

TiLED™ 1x4 dvLED Wall Mount for Samsung IFJ Series
Vertical wall mount for 4 Samsung IFJ series displays, featuring micro-adjustable X, Y, and Z-axis alignment for video walls
The Chief TiLED™ TIL1X4IFJ is a modular mounting solution specifically designed to support one vertical stack of 4 Samsung IFJ series LED displays. This system is built to facilitate the creation of continuous, seamless video walls by allowing installers to stack modular LED cabinets vertically. To achieve a flawless visual result, the mount features integrated micro-adjustability across the X, Y, and Z axes, enabling precise lateral shift, vertical cabinet-to-cabinet alignment, and plumb adjustments to compensate for uneven wall surfaces. The modular design allows the TiLED™ system to attach to the top, bottom, or sides of other mounts, supporting highly customized design configurations for complex video wall layouts. For installation efficiency and display protection, the mount utilizes offset mounting slots and spring-loaded push buttons to prevent damaging friction and unwanted movement during the setup process. This TAA-compliant and UL-listed solution provides a low-profile mounting depth when used with the Samsung displays.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.22 in (5.6 cm) |
| Height | 71.4 in (181.4 cm) |
| Overall Dimensions | 71.4" x 31.8" x 2.22” (1814 x 806 x 56 mm) |
| Shipping Weight | 47.2 lbs (21.4 kg) |
| Weight Capacity | 120 lbs (54.4 kg) |
| Width | 31.8 in (80.8 cm) |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
All other specifications 10
| Application | Wall |
| Base Series | IFJ Series |
| LED Display Model | Samsung IFJ |
| Manufacturer | Samsung |
| Number of Displays | 4 |
| Orientation | Landscape |
| Special Features | LED Video WallModularMulti-DisplaySecurityStacked |
| TAA Compliant | Yes |
| UPC | 841872175423 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
TiLED™ dvLED Wall Mount Vertical Connector Kit-TILVAB1
TILVAB1$53.60
Proximity® PAC527L Extra-Large In-Wall Storage Box with Lever Lock™
PAC527L$300.80
PAC526, Large In-Wall Storage Box
PAC526$116.80
PAC525, In-Wall Storage Box
PAC525$79.20

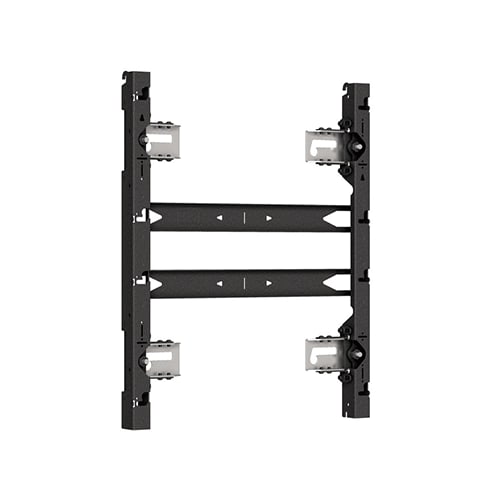

TiLED™ 1x2 dvLED Wall Mount for Samsung IFJ Series
TIL1X2IFJ$669.60
TiLED™ 1x3 dvLED Wall Mount for Samsung IFJ Series
TIL1X3IFJ$1,005.60
Verified fitment
Questions about this part
Will the TIL1X4IFJ fit my Samsung IFJ displays?
Yes, this mount is verified for use with the Samsung IFJ series, including the IF012J model, supporting up to 4 displays in a vertical stack.
How does this mount handle uneven walls?
The Z-axis plumb adjustment allows you to compensate for wall imperfections, ensuring the mounting surface remains perfectly flat across the video wall.
What is the difference between this and the TIL1X2IFJ?
The TIL1X4IFJ is designed for a 1x4 vertical configuration, whereas the TIL1X2IFJ is the version intended for a 1x2 display stack.
What accessories are needed to complete a video wall?
You can connect modular sections using the TILVAB1 TiLED™ dvLED Wall Mount Vertical Connector Kit.
How much of a gap will be between the display and the wall?
When installed with the Samsung IFJ displays, the depth range between the display and the wall is 3.77" to 4.52" (95.7-114.8 mm).
