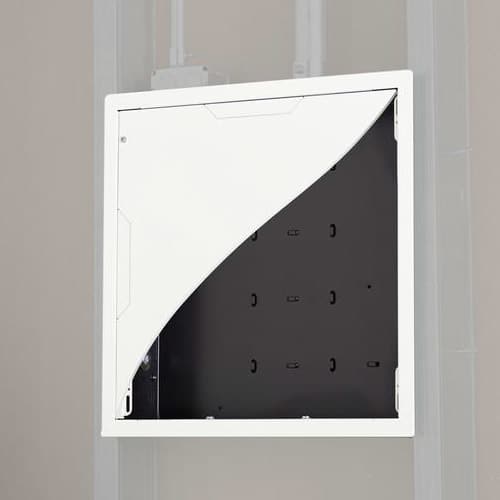

PAC526, Large In-Wall Storage Box
Large in-wall storage box for recessed cable routing and power management in professional AV installations
The PAC526 provides a dedicated, recessed space within a wall to manage excess cabling and host power conditioners or surge protectors. This storage solution simplifies the installation of flat panel displays by keeping cables organized and hidden from view. It is a component used for on-wall kiosks and digital signage solutions to ensure a clean, professional appearance. The PAC526 is UL Listed and features a black finish with flanges for secure installation. This unit has a 10 lbs (4.5 kg) weight capacity and measures 14.25 in (36.2 cm) in both height and width, with a depth of 3.9 in (9.9 cm). It is compatible with a wide range of Chief mounting systems, including the PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall™, and Fusion® series. To provide integrated power within the wall, the PAC526 is compatible with several Proximity® power kits, including the PAC526P2-KIT, PAC526P4-KIT, and PAC526P6-KIT.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.9 in (9.9 cm) |
| Height | 14.25 in (36.2 cm) |
| Shipping Dimensions | 21" x 20" x 4.75"(533.4 x 508 x 120.7 mm) |
| Shipping Weight | 10.49 lbs (4.8 kg) |
| Weight Capacity | 10 lbs (4.5 kg) |
| Width | 14.25 in (36.2 cm) |
| Accessory Type | In-Wall |
| Application | In-Wall |
All other specifications 5
| Color | Black |
| Special Features | Flanges |
| TAA Compliant | No |
| UPC | 841872161419 |
| Certifications | UL Listed |
Resources
You'll need these with it
Proximity® Lever Lock™ Plate for PAC526/PAC527L In-Wall Storage Box
PACL2$72.80
PNRUB, Large Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension
PNRUB$886.40
Proximity® Four Outlet PAC526 Power Kit
PAC526P4-KIT$466.40
Proximity® Six Outlet PAC526 Power Kit
PAC526P6-KIT$702.40
Large Fusion® Micro-Adjustable Fixed Wall Display Mount
LSM1U$247.20
Proximity® Two Outlet PAC526 Power Kit
PAC526P2-KIT$232.80
PNR2000B, Large Flat Panel Swing Arm Wall Mount - 25 Inch (without interface)
PNR2000B$756.80
Large Thinstall™ Dual Swing Arm Wall Display Mount - 25 Inch Extension
TS525TU$649.60
Large Fusion® Fixed Wall Display Mount
LSA1U$186.40
Medium Thinstall™ Single Swing Arm Wall Display Mount - 18 Inch Extension
TS318SU$388.80
Medium Thinstall™ Dual Swing Arm Wall Display Mount - 18 Inch Extension
TS318TU$456.00
Medium Thinstall™ Dual Swing Arm Wall Display Mount - 25 Inch Extension
TS325TU$519.20
Questions about this part
What Chief wall mounts are compatible with the PAC526?
The PAC526 is compatible with PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall™, and Fusion® series wall mounts.
Can I add power outlets to this storage box?
Yes, you can install Proximity® power kits such as the PAC526P2-KIT, PAC526P4-KIT, or PAC526P6-KIT into the PAC526.
What is the maximum weight I can put inside the box?
The PAC526 has a rated weight capacity of 10 lbs (4.5 kg).
Does this box require a specific mounting plate?
The PAC526 is compatible with the Proximity® Lever Lock™ Plate (part number PACL2) for secure access.
Which document do I need for the installation process?
The PAC525 526 Installation Manual (PDF) contains the necessary instructions for installing this storage box.
