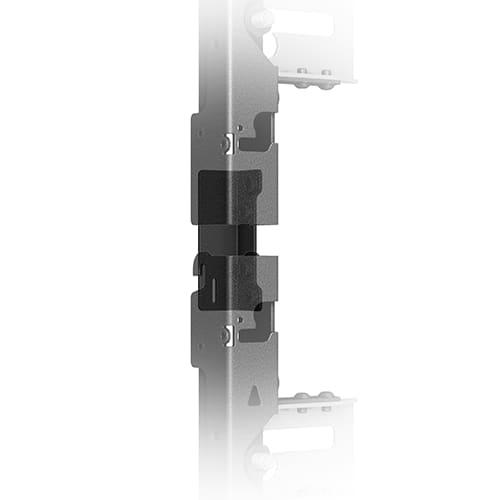

TiLED™ dvLED Wall Mount Vertical Connector Kit-TILVAB1
Vertical connector kit for TiLED™ dvLED wall mount systems
The Chief TILVAB1 is a dedicated TiLED™ dvLED vertical connector kit designed for professional video wall assemblies. This component is essential for managing and connecting dvLED modules within a vertical orientation. It is verified to work with a variety of display types, including 26 specific models from 2 manufacturers. Verified compatible devices include Samsung models such as the IE015R, IE015R-F, IE020R, and IE020R-F, as well as Absen Acclaim Plus and Acclaim Pro series, including the Acclaim Plus 1.2, 1.5, and 2.5, and the Acclaim Pro 1.2. This kit is TAA compliant and carries ULCERT certification. For precise layout planning, installers can utilize the TiLED-PN-Config-Tool_Web.xlsm configuration tool. This kit is part of the specialized TiLED™ accessory ecosystem for seamless vertical mounting integration.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Weight | 0.45 |
Resources
Verified fitment
Questions about this part
Will this connector kit work with my Samsung dvLED display?
Yes, it is verified for Samsung models including the IE015R, IE015R-F, IE020R, and IE020R-F.
Is the TILVAB1 TAA compliant?
Yes, this connector kit is TAA compliant for use in required projects.
Which Absen models are compatible with this kit?
It is verified for use with Absen Acclaim Plus 1.2, 1.5, and 2.5, as well as the Acclaim Pro 1.2.
Where can I find the CAD drawing for this part?
A DWG format CAD drawing is available in the resources section for your submittal needs.
Can I use a configuration tool to plan my TiLED installation?
Yes, the TiLED-PN-Config-Tool_Web.xlsm document is available to assist with the planning process.
