TiLED™ 1x2 dvLED Wall Mount for Samsung IFJ Series

Wall mount for 2 Samsung IFJ Series displays, featuring X, Y, and Z-axis micro-adjustability for precise video wall alignment

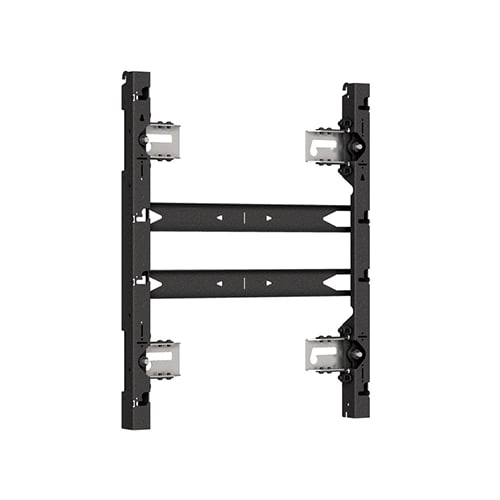

The Chief TIL1X2IFJ is a TiLED™ 1x2 dvLED wall mount designed specifically for the Samsung IFJ Series. This modular mounting system is engineered to support two displays stacked vertically in a landscape orientation, allowing integrators to create continuous, seamless video walls. The modular architecture allows this mount to attach to the top, bottom, or sides of other mounts to support various design configurations. To ensure precise alignment, the mount features micro-adjustable X, Y, and Z-axis controls; these allow for lateral shift, vertical cabinet-to-cabinet alignment, and plumb adjustments to compensate for wall imperfections. Offset mounting slots are integrated into the design to protect the sides of Samsung IFJ displays from friction during the installation process. This TAA-compliant and UL Listed solution is a standard, off-the-shelf component, ensuring no custom lead times are required for your project. The system achieves a low-profile result with a display depth range between 3.77" and 4.52" (95.7–114.8 mm).
