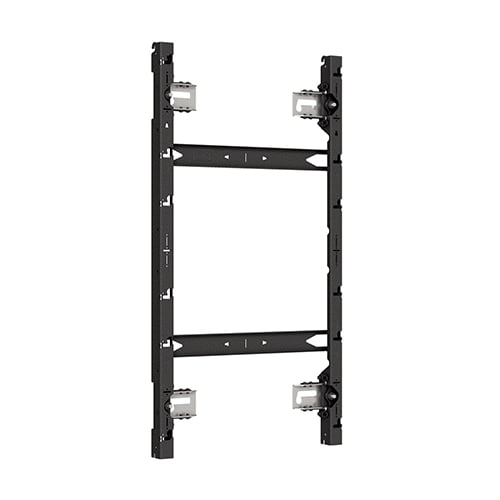

TiLED™ 1x3 dvLED Wall Mount for Samsung IFJ Series
Wall mount for 1x3 Samsung IFJ series video walls, featuring multi-axis micro-adjustability for precise alignment
The Chief TIL1X3IFJ is a specialized TiLED™ mounting solution designed to support a single vertically stacked group of three Samsung® IFJ Series LED displays. This modular system is engineered to facilitate the creation of continuous video walls by allowing mounts to attach to the top, bottom, and sides of adjacent units, enabling highly creative and scalable design configurations. To ensure a flawless visual finish, the mount provides comprehensive adjustability across three dimensions: X-axis lateral shift for precise horizontal positioning, Y-axis vertical shift for perfect cabinet-to-cabinet alignment, and Z-axis plumb adjustments to compensate for wall imperfections. This ensures a perfectly flat mounting surface even when walls are not perfectly plumb. For installation efficiency and display safety, the system utilizes offset mounting slots to prevent damaging friction against the LED edges. Additionally, spring-loaded push buttons help maintain secure positioning. This TAA compliant and UL listed mounting solution is an off-the-shelf part, providing a standard solution without the need for custom lead times or project registration.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.22 in (5.6 cm) |
| Height | 53.2 in (135.1 cm) |
| Overall Dimensions | 53.2" x 31.8" x 2.22” (1352 x 806 x 56 mm) |
| Shipping Weight | 33 lbs (15 kg) |
| Weight Capacity | 90 lbs (40.8 kg) |
| Width | 31.8 in (80.8 cm) |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
All other specifications 10
| Application | Wall |
| Base Series | IFJ Series |
| LED Display Model | Samsung IFJ |
| Manufacturer | Samsung |
| Number of Displays | 3 |
| Orientation | Landscape |
| Special Features | LED Video WallModularMulti-DisplaySecurityStacked |
| TAA Compliant | Yes |
| UPC | 841872175447 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
TiLED™ dvLED Wall Mount Vertical Connector Kit-TILVAB1
TILVAB1$53.60
Proximity® PAC527L Extra-Large In-Wall Storage Box with Lever Lock™
PAC527L$300.80
PAC526, Large In-Wall Storage Box
PAC526$116.80
PAC525, In-Wall Storage Box
PAC525$79.20
TiLED™ 1x2 dvLED Wall Mount for Samsung IFJ Series
TIL1X2IFJ$669.60
TiLED™ 1x4 dvLED Wall Mount for Samsung IFJ Series
TIL1X4IFJ$1,340.00
Verified fitment
Questions about this part
Will this mount work with my Samsung IFJ series display?
Yes, this mount is specifically designed for the Samsung IFJ series, including models like the IF012J, to create a 1x3 vertical video wall configuration.
How do I achieve a perfectly flat video wall if the wall is uneven?
The mount features Z-axis plumb adjustments, which allow installers to compensate for wall imperfections and achieve a perfectly flat mounting surface.
What is the difference between the TIL1X3IFJ and other TiLED mounts?
This SKU is configured specifically for a 1x3 vertical orientation; other versions in this series include the TIL1X2IFJ for 1x2 setups and the TIL1X4IFJ for 1x4 setups.
Can I expand my video wall using this mount?
Yes, the modular design allows this mount to attach to the top, bottom, or sides of other TiLED mounts to support expanding and creative video wall designs.
What tools or accessories are required for installation?
You may need a Vertical Connector Kit (SKU: TILVAB1) to connect mounts, and in-wall storage boxes like the Proximity PAC527L or PAC526 can be used for cable management.
