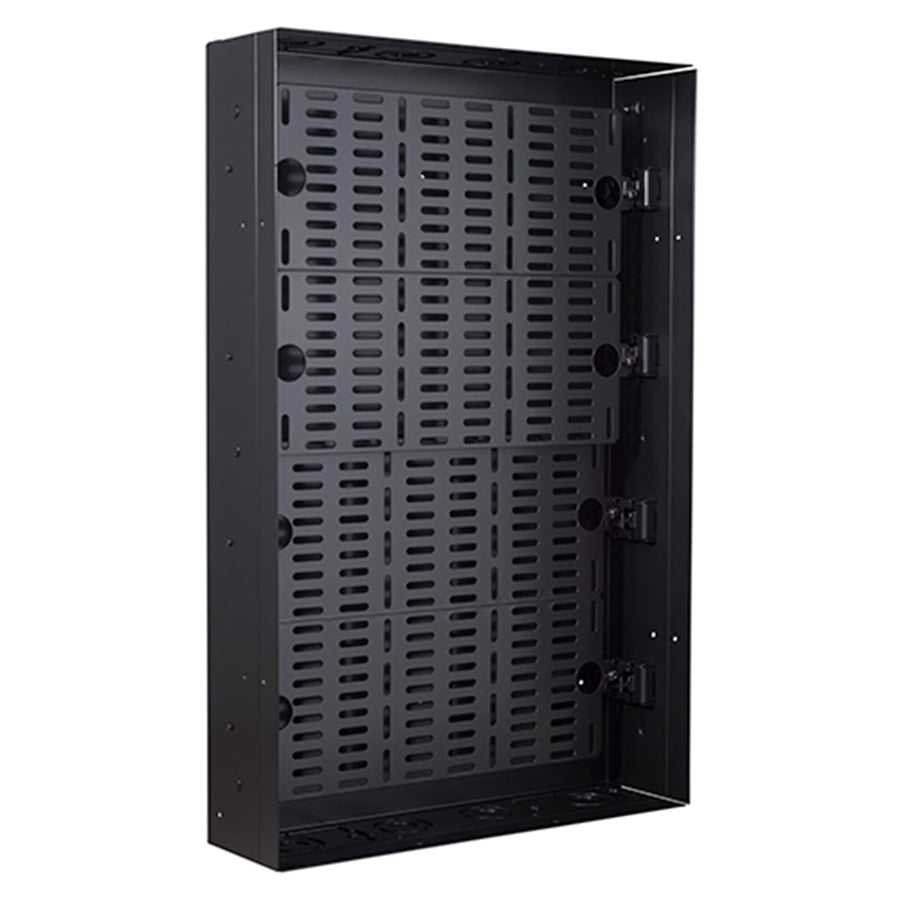

Proximity® PAC527L Extra-Large In-Wall Storage Box with Lever Lock™
Extra-large in-wall storage box featuring two tool-free Lever Lock plates for multi-level component organization
The Chief Proximity PAC527L is an extra-large in-wall storage solution designed to organize and protect AV components behind a display. This box utilizes two large, tool-free Lever Lock™ plates that can be mounted on four different levels, allowing installers to arrange equipment in three dimensions to maximize the available space. This multi-level arrangement is particularly useful for hiding power bricks behind the backplane while keeping primary equipment mounted to the front. By utilizing different layers, installers can easily work around difficult port locations on hardware. This unit is UL Listed and is compatible with Middle Atlantic Products’ Forward Cable Management Solutions. For custom installations, this box can be fitted with various power protection options, including the PAC527P4-KIT or PAC527P6-KIT.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.9 in (9.9 cm) |
| Height | 22 in (55.9 cm) |
| Shipping Dimensions | 30.35" x 22.68" x 4.57" (770.9 x 576.1 x 116.1 mm) |
| Shipping Weight | 21.22 lbs (9.6 kg) |
| Weight Capacity | In-wall Box: 40 lbs (18.1 kg) - Lever Lock Plate Capacity: 10 lbs (4.5 kg) |
| Width | 14.25 in (36.2 cm) |
| Accessory Type | Component StorageIn-Wall |
| Application | In-Wall |
All other specifications 5
| Color | Black |
| Special Features | FlangesSurge_Filtering |
| TAA Compliant | No |
| UPC | 841872174471 |
| Certifications | UL Listed |
Resources
You'll need these with it
Proximity® White Flange Kit for PAC527
PAC527FW-KIT$100.80
Proximity® Four Outlet PAC527 Power Kit
PAC527P4-KIT$458.40
Proximity® Black Flange Kit for PAC527
PAC527F-KIT$100.80
Proximity® Six Outlet PAC527 Power Kit
PAC527P6-KIT$688.00
Proximity® White Cover Kit for PAC527
PAC527CVRW-KIT$79.20
Proximity® Black Cover Kit for PAC527
PAC527CVR-KIT$79.20

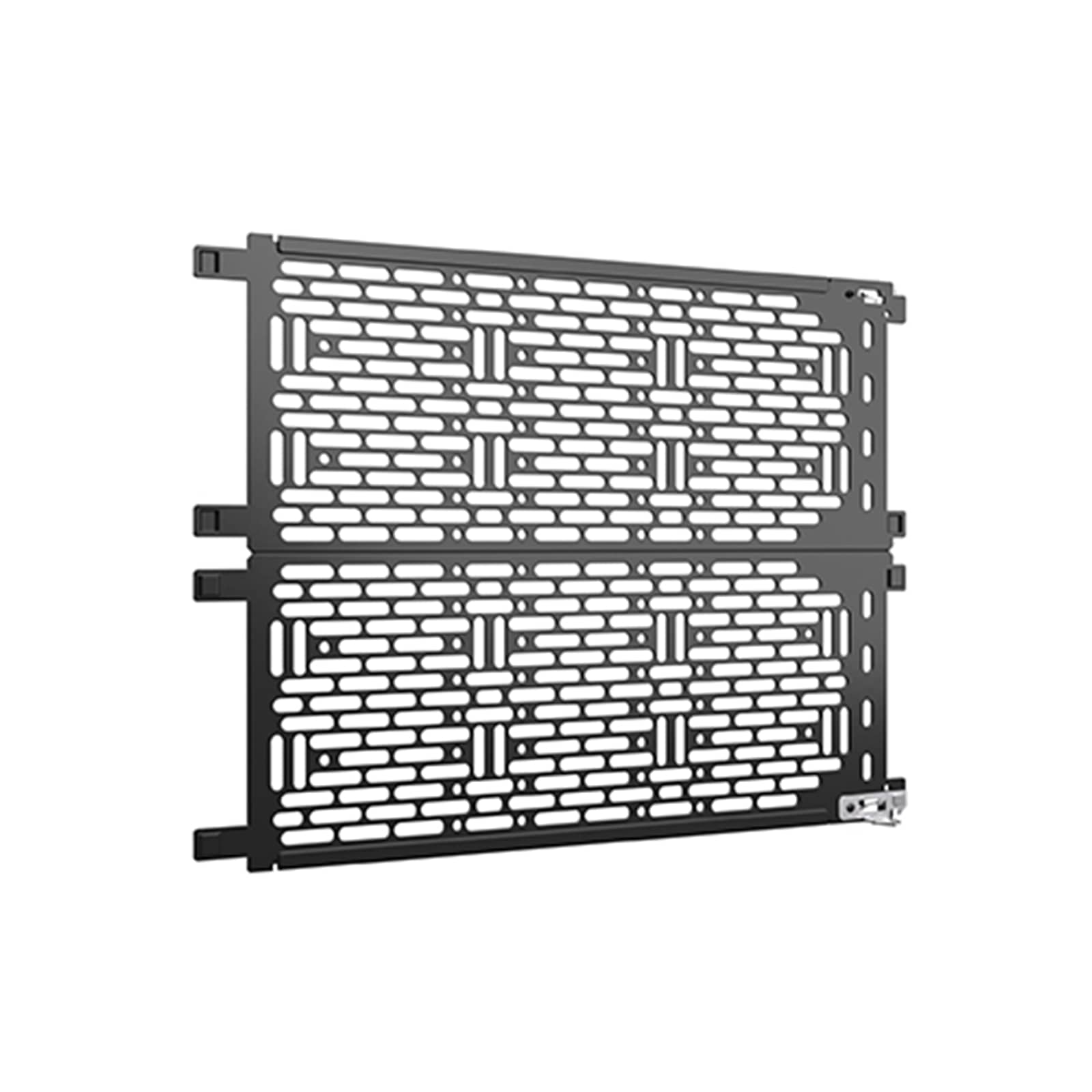

Proximity® Lever Lock™ Plate for PAC526/PAC527L In-Wall Storage Box
PACL2$72.80
Questions about this part
Will the PAC527L fit in my wall stud spacing?
This box is designed for 3.5" stud bays with a depth of 3.9" (9.9 cm) or 2.5" stud bays with a depth of 3" (76 mm).
What is the weight capacity of the Lever Lock plates?
While the in-wall box itself supports 40 lbs (18.1 kg), the Lever Lock Plates have a specific capacity of 10 lbs (4.5 kg) each.
Can I add power protection to this storage box?
Yes, you can include power protection such as the PAC527P4-KIT (four outlet) or the PAC527P6-KIT (six outlet) power kits.
How do I service the equipment once it is installed?
The Lever Lock™ plates can be adjusted to four different levels to allow for efficient servicing and easier access to components.
Which accessories are compatible with the PAC527L?
You can use PAC527P4-KIT, PAC527P6-KIT, or the PACL2 Lever Lock™ Plate to expand your configuration.
