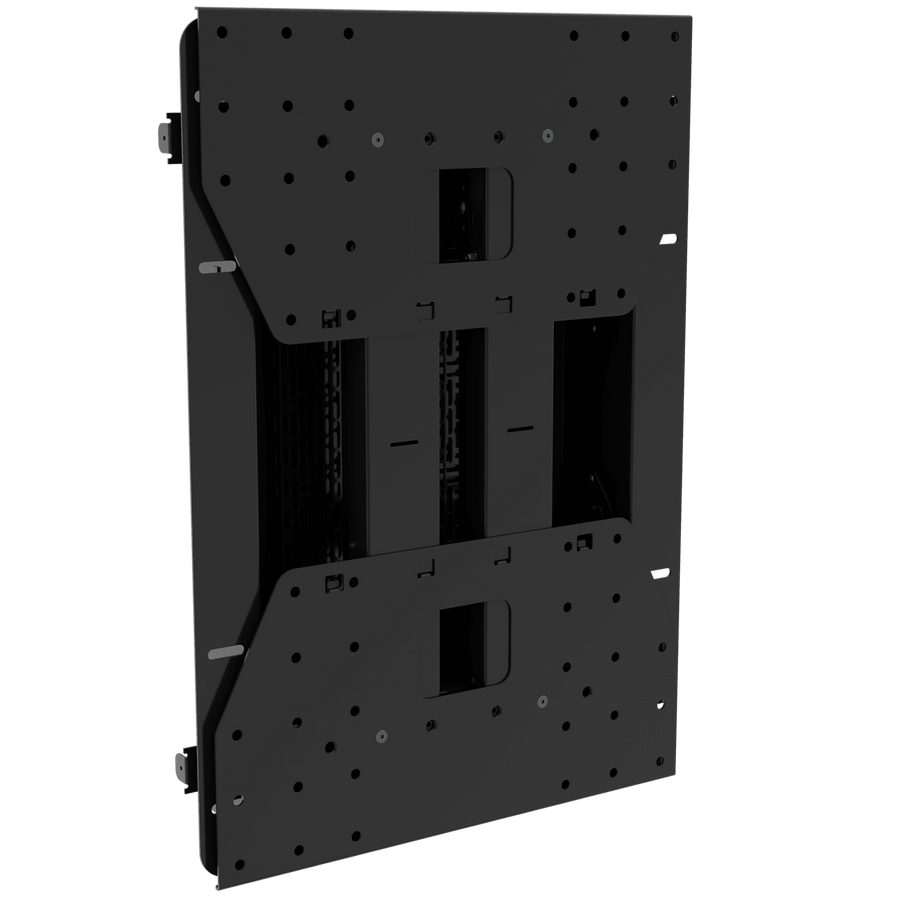

Tempo™ Flat Panel In-Wall Single-Box Mount System
In-wall mounting system for 49"–65" displays featuring integrated device storage and 10.65" of service extension
The FPIWSBMS Tempo™ Flat Panel In-Wall Single-Box Mount System provides a professional mounting solution and dedicated in-wall storage for small devices behind the display. This all-in-one system is designed to facilitate ADA compliance when used with displays less than 3.5" (88.9 mm) in depth. The unit features an integrated 10" x 15" Lever Lock storage panel, allowing for secure mounting of hardware within the wall cavity. For installation efficiency, this system offers 10.65" (271 mm) of maximum extension to simplify servicing devices once the display is mounted. It supports both landscape and portrait orientations with a VESA pattern range of 200 x 200mm to 400 x 600mm. The system is UL 2442 Listed and can be installed in wood or 25 ga. minimum steel studs spaced 16" on center without requiring stud cutting. It supports a weight capacity of 100 lbs (45.35 kg) and includes lateral shift of +/- 3" and tilt adjustability of -10°/+0° in 2.5° increments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Maximum Extension | 10.65 in (27.1 cm) |
| Typical Screen Size | 49'' - 65'' (1244mm - 1651mm) |
| Wall Stud Compatibility | Wood or Steel Studs (25 ga minimum) 16” on center |
| Weight Capacity | 100 lbs (45.35 kg) |
| Adjustability | Lateral ShiftTilt |
| Application | In-Wall |
| Color | Black |
| Installation Type | All-In-One Mounting System |
All other specifications 6
| Orientation | Landscape or Portrait |
| Solution Type | Universal |
| Special Features | Facilitates ADA Compliance with displays less than 3.5” (88.9 mm) in depth |
| Tilt | -10° / +0° in 2.5° increments |
| UPC | 8411872179001 |
| VESA Mounting Pattern | 200 x 200mm - 400 x 600mm |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Metal Single Gang Electrical Box
PACGB1$10.40
PAC526F, Large In-Wall Storage Box with Flange
PAC526F$164.00
HDMI HDBaseT + USB-B and RS232 over Cat Extender Single Gang Wall Plate Transmitter to Box Receiver - 4K 60Hz
C2G30024$872.99
Dual 4K HDMI HDBaseT + VGA, 3.5mm, and RS232 over Cat Switching Extender Box Transmitter - 4K 60Hz
C2G30018$276.99
HDMI HDBaseT + RS232 and IR over Cat Extender Box Transmitter to Box Receiver (18Gbps) - 4K 60Hz
C2G30026$503.99
HDMI HDBaseT + RS232 and IR over Cat Extender Box Scaling Receiver - 4K 60Hz
C2G30016$783.99
HDMI® HDBaseT + 3.5mm, USB-B to A, and RS232 over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz
C2G31013$539.99
HDMI® HDBaseT + VGA, 3.5mm, and USB-B to A over Cat Extender Wall Plate Transmitter to Box Receiver - 4K 60Hz
C2G31012$578.99
HDMI® HDBaseT + USB-C®, 3.5mm, and USB-B to A over Cat Extender Wall Plate Transmitter to Box Receiver - 4K 60Hz
C2G31011$653.99
HDMI® Ultra-Slim HDBaseT + RS232 And IR Over Cat Extender Box Receiver - 4K 60Hz
C2G31015$334.99
Dual 4K HDMI® HDBaseT + VGA, 3.5mm, and RS232 over Cat Switching Extender Box Transmitter to Ultra-Slim Box Receiver - 4K 60Hz
C2G30027$376.99
Questions about this part
Will the FPIWSBMS fit my display?
This system is verified for landscape displays from 49" to 65" and portrait displays from 40" to 70" using VESA patterns between 200x200mm and 400x600mm.
What is required for the in-wall installation?
The system fits between 16" O.C. studs in both wood and 25 ga. minimum steel stud construction without the need for cutting studs.
How much space is available for device storage?
The system includes a 10" x 15" Lever Lock storage panel and offers up to 10.65" (271 mm) of extension for servicing devices behind the screen.
What is the maximum weight capacity for this mount?
The FPIWSBMS supports a maximum weight capacity of 100 lbs (45.35 kg) when installed per manufacturer requirements.
Can I use this for an ADA compliant installation?
Yes, this system facilitates ADA compliance when paired with displays that have a depth of less than 3.5" (88.9 mm).
