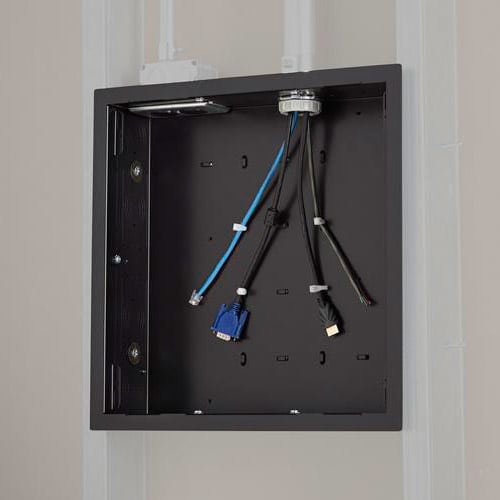

PAC526F, Large In-Wall Storage Box with Flange
Large in-wall storage box with integrated flange for recessed cable management and power mounting in professional AV installations
The Chief PAC526F provides a recessed, organized space within a wall to manage excess cabling and host surge protectors or power conditioners. This large-format storage box is designed to simplify flat panel installations by keeping sensitive components and cable slack hidden from view. It features a built-in flange that allows for a clean, trimmed appearance when mounted in drywall. This model is UL Listed and carries a 10 lbs (4.5 kg) weight capacity. For specialized power management, it is compatible with the PAC526P2-KIT, PAC526P4-KIT, and PAC526P6-KIT power kits. The PAC526F is designed for use with several Chief mounting series, including the Thinstall™, Fusion®, PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, and Fusion® wall mounts.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.9 in (9.9 cm) |
| Height | 14.25 in (36.2 cm) |
| Shipping Dimensions | 21" x 20" x 4.88"(533.4 x 508 x 124 mm) |
| Shipping Weight | 12 lbs (5.4 kg) |
| Weight Capacity | 10 lbs (4.5 kg) |
| Width | 14.25 in (36.2 cm) |
| Accessory Type | In-Wall |
| Application | In-Wall |
All other specifications 6
| Color | Black |
| Flange Color | Black |
| Special Features | Flanges |
| TAA Compliant | No |
| UPC | 841872161440 |
| Certifications | UL Listed |
Resources
You'll need these with it
Large Thinstall™ Dual Swing Arm Wall Display Mount - 25 Inch Extension
TS525TU$649.60
Medium Thinstall™ Dual Swing Arm Wall Display Mount - 18 Inch Extension
TS318TU$456.00
Proximity® Lever Lock™ Plate for PAC526/PAC527L In-Wall Storage Box
PACL2$72.80
PNRUB, Large Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension
PNRUB$886.40
Proximity® Four Outlet PAC526 Power Kit
PAC526P4-KIT$466.40
Proximity® Six Outlet PAC526 Power Kit
PAC526P6-KIT$702.40
Large Fusion® Micro-Adjustable Fixed Wall Display Mount
LSM1U$247.20
Proximity® Two Outlet PAC526 Power Kit
PAC526P2-KIT$232.80
Medium Thinstall™ Single Swing Arm Wall Display Mount - 18 Inch Extension
TS318SU$388.80
Medium Fusion® Micro-Adjustable Fixed Wall Mount
MSM1U$186.40
Proximity® Two Outlet PAC525 Power Kit
PAC525P2-KIT$232.80
Proximity® White Cover Kit for PAC525
PAC525CVRW-KIT$24.00
Questions about this part
Will the PAC526F work with my Chief wall mount?
Yes, it is compatible with Thinstall™, Fusion®, PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, and PDR series mounts.
What power kits are compatible with this storage box?
The PAC526F is compatible with the PAC526P2-KIT, PAC526P4-KIT, and PAC526P6-KIT power kits.
How much weight can I store inside the box?
The PAC526F has a rated weight capacity of 10 lbs (4.5 kg).
What is the size of the PAC526F storage box?
The unit measures 14.25 in (36.2 cm) in height, 14.25 in (36.2 cm) in width, and 3.9 in (9.9 cm) in depth.
Which document is needed for submittal planning?
The PAC526F Technical Drawing (PDF) is available for detailed dimensional and installation planning.
