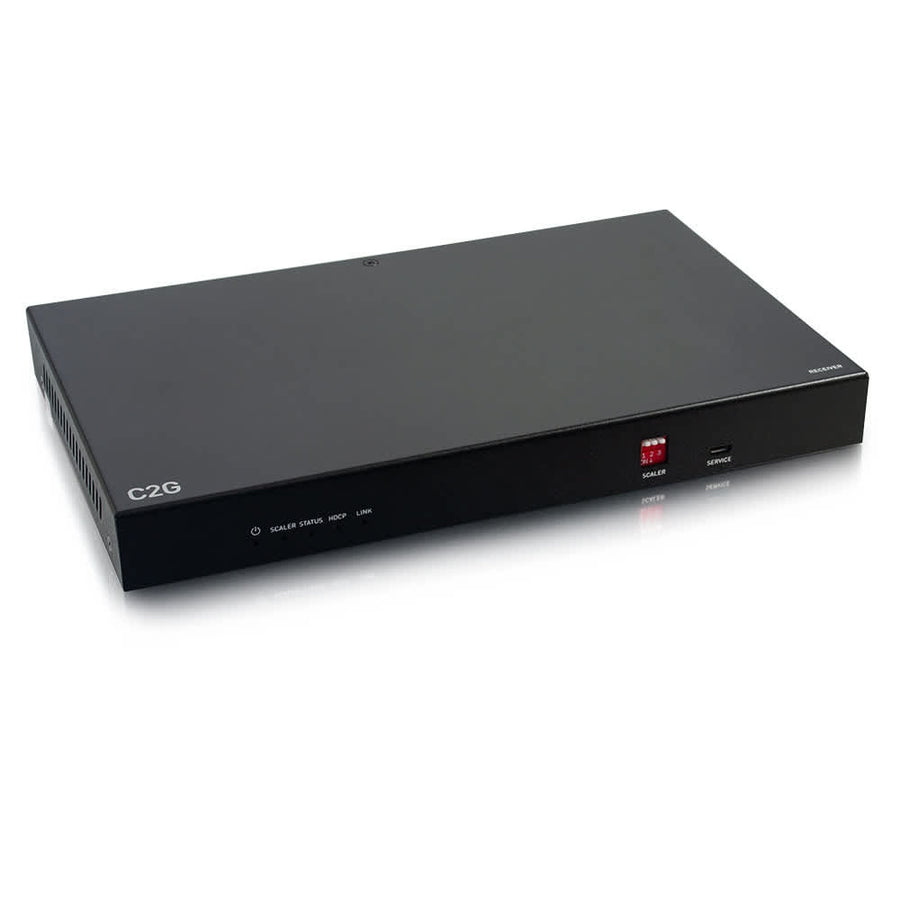

HDMI HDBaseT + RS232 and IR over Cat Extender Box Scaling Receiver - 4K 60Hz

HDBaseT scaling receiver supporting 4K @ 60Hz, extending HDMI signals up to 328 ft via a single Cat6a cable

The C2G30016 is a scaling HDBaseT receiver designed to extend high-resolution video and control signals to displays in large-scale environments like lecture halls, classrooms, and conference rooms. By utilizing a single Cat6a Ethernet cable, this active device can transmit 4K @ 60Hz content over distances reaching up to 328 ft (100 m). The receiver supports various resolutions, including 1080p, 1080p @ 60Hz, 4K @ 30Hz, and 4K @ 60Hz, making it a versatile component for modern AV signal distribution. This unit features an 18 GBPS data transfer rate to maintain signal integrity over long runs. For system integration, the C2G30016 is specifically engineered to work with C2G30014, C2G30017, and C2G30018 transmitters. The device includes an RJ-45 Female port for the HDBaseT connection, an HDMI Female output, a USB Micro-B Female port, and a DC Power Plug for power input. A remote selector handles port selection for integrated control.
