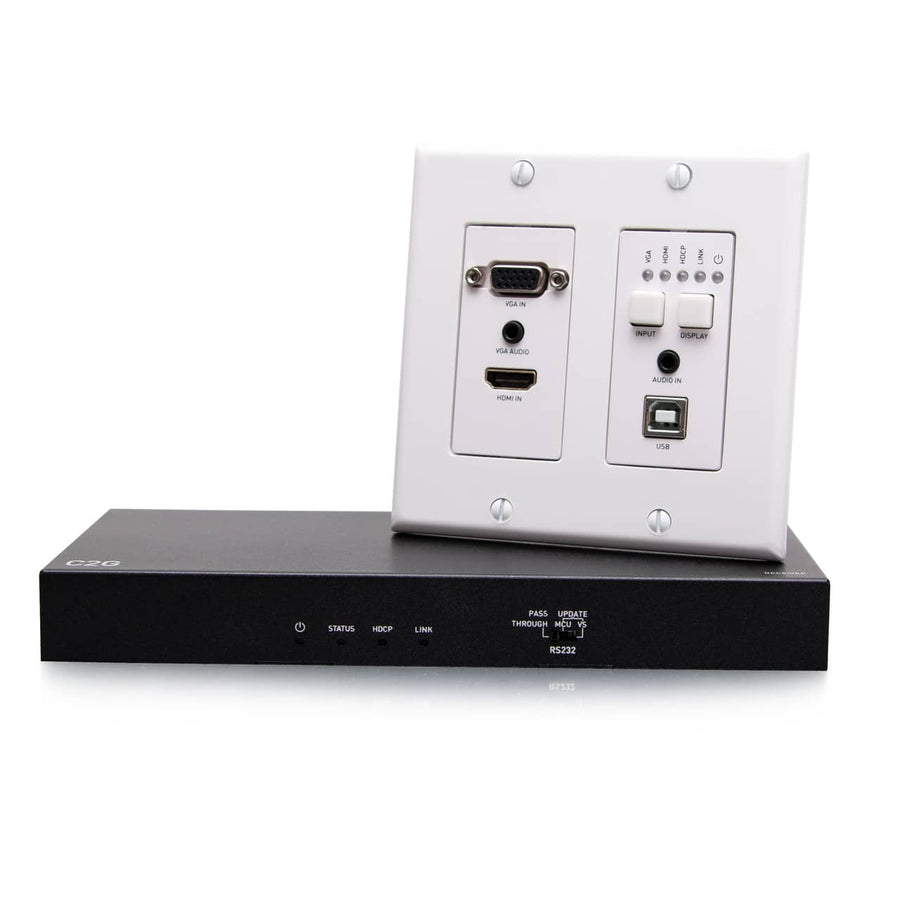

HDMI® HDBaseT + VGA, 3.5mm, and USB-B to A over Cat Extender Wall Plate Transmitter to Box Receiver - 4K 60Hz
4K 60Hz HDBaseT extender system for HDMI, VGA, USB 2.0, and audio over a single Cat5e/6/6a cable
The C2G31012 is a dual-gang wall plate transmitter to box receiver system designed to extend high-definition signals across large environments like conference rooms, lecture halls, and classrooms. This HDBaseT solution allows a single Cat5e, Cat6, or Cat6a cable to carry a 4K HDMI signal, VGA video, and high-speed USB 2.0 data simultaneously. For 4K HDMI at 60Hz, the system supports distances up to 130 feet when using Cat6a cabling. When using Cat5e or Cat6, the unit supports 4K HDMI up to 115 feet and 1080p VGA up to 230 feet. The transmitter features automatic port selection and supports one-way analog audio pass-through from the transmitter to the receiver. Additionally, the receiver supports PoH (Power over HDBaseT), allowing it to send power back to the wall plate transmitter to eliminate the need for a local power adapter at the wall. This setup is ideal for KVM applications, enabling control of USB cameras, keyboards, and mice via USB 2.0 pass-through over distances up to 230 feet.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Max Distance Support | 230 ft (70.1 m) |
| Operating Humidity Max | 90% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | 32° - 113°F (0° - 45°C) |
| Power Consumption | 3_9 W, 8_0 W |
| Shipping Weight | 3.16 lbs (1.4 kg) |
| Storage Humidity Max | 90% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
All other specifications 20
| Storage Temperature Max | 518 Fahrenheit (270 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Audio Specifications | Dolby AtmosDolby TrueHDDTS:XDTS-HD Master AudioPCM 2.0PCM 5.1PCM 7.1 |
| Chroma Subsampling | 4:2:0 |
| Color | White |
| Connector 1 | (1) 3.5mm Female(1) 3.5mm Female(1) HDMI Female(1) RJ-45 Female(1) USB-B Female(1) VGA Female |
| Connector 2 | (1) 3.5mm Female(1) 3.5mm Female(1) DC Power Plug(1) HDMI Female(1) RJ-45 Female(4) USB-A Female |
| Port Selection | Auto |
| Power Supply | AC Adapter |
| Product Type | Active DeviceHDBaseTReceiverTransmitter |
| Signal Type | HDbTHDMI |
| TAA Compliant | No |
| Technology Specifications | HDBT 2.0HDCP 2.2USB 2.0VGA |
| UPC | 757120310129 |
| Video Input Support | HDMIVGA |
| Video Output Support | HDMI |
| Video Resolution | 1080p1080p @ 60Hz4K4K @ 30Hz4K @ 60Hz |
| Certifications | CEFCCNDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10.2 GBPS |
| Warranty | 5 years |
Resources
Questions about this part
Will this extender work with my 4K display?
Yes, it supports 4K @ 60Hz resolutions and is HDCP 2.2 compliant for secure connections to modern displays.
What is the maximum distance for 4K HDMI?
You can extend 4K HDMI up to 130 ft (40 m) using Cat6a cabling, or up to 115 ft (35 m) using Cat6.
Can I use this to control a USB camera or keyboard?
Yes, the system provides USB 2.0 pass-through for KVM control of devices like cameras, mice, and keyboards up to 230 ft (70.1 m).
Do I need a power supply at the wall plate?
No, the receiver supports PoH, which allows it to send power back to the wall plate transmitter.
What type of cabling is required for the best performance?
While Cat5e or Cat6 can be used, an HDBaseT Certified Cat6a Patch Cable is recommended for optimal performance.
