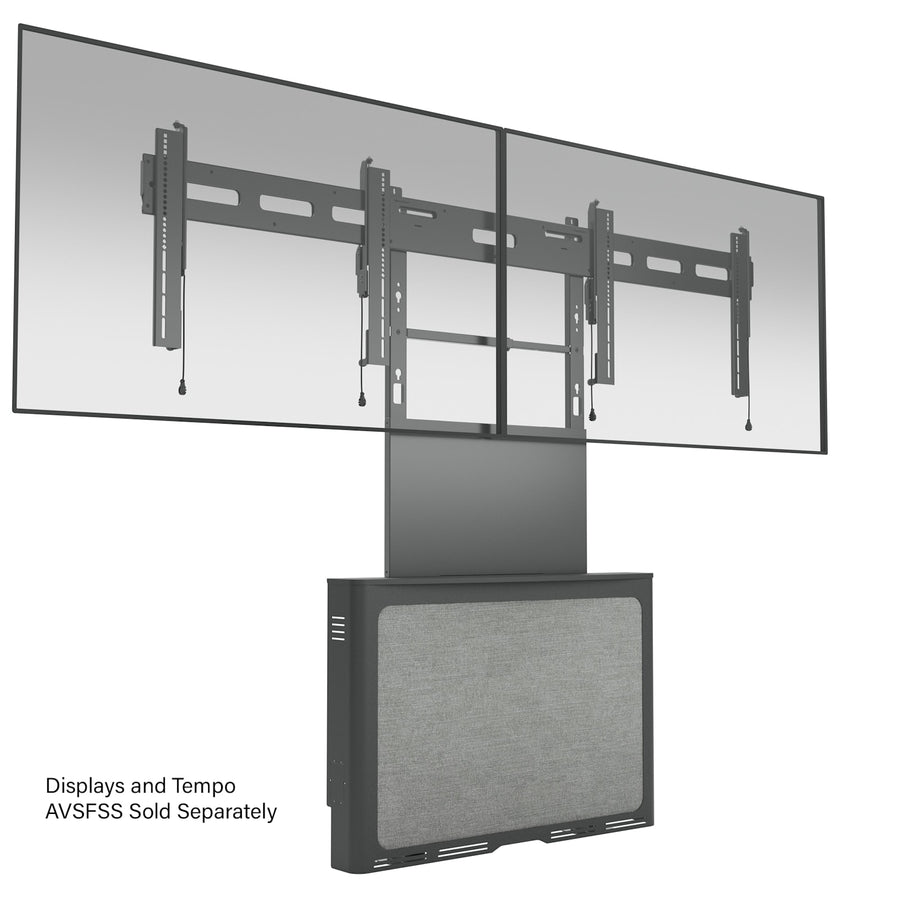

Tempo Dual-Display Accessory
Dual-display accessory for Tempo AVSFSS applications, supporting 46"–60" screens in a 2X1 configuration
The Chief AVA1101 is a dual-display accessory designed specifically for Tempo AVSFSS applications. This multi-display hardware enables 2X1 configurations, allowing two screens to be mounted side-by-side. It includes manual height adjustment of 0.68 in (17.4 mm) to facilitate precise alignment between the displays. This accessory installs onto the Tempo (AVSFSS) system using the same mounting method as Fusion® and Fit mounts. The assembly is designed for a slim profile, with a depth of 1.7" to 2.2" (44–55 mm), ensuring the full assembly remains less than 4" (101 mm) from the wall. It is TAA compliant and supports a wide range of Fusion® accessories, including various component shelves and camera mounts.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.7 - 2.2 in (44 - 55 mm) depth |
| Manual Height Adjustment | 0.68 in (17.4 mm) |
| Shipping Dimensions | 84" x 9" x 3.5" (213.4 x 22.9 x 8.9 cm) |
| Shipping Weight | 46 lbs (20.9 kg) |
| Typical Screen Size | 46" - 60" |
| Accessory Type | Multi-Display |
| Adjustability | Fixed, Height Adjustable |
| Application | On-Display-Wall |
All other specifications 6
| Color | Black |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| UPC | 841872175492 |
| VESA Mounting Pattern | 200 x 400mm - 400 x 800mm |
| Certifications | TAA |
Resources
You'll need these with it
Fusion® Above/Below ConferenceSHOT ePTZ Camera Mount for Large Displays
FCA800K$106.40

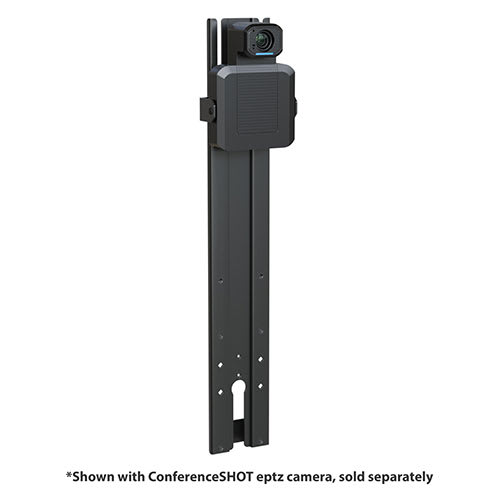

Fusion® Above/Below ConferenceSHOT ePTZ Camera Mount for Extra-Large Displays
FCA810K$112.80
Fusion® Above/Below IntelliSHOT Camera Mount for Large Displays
FCA800E$154.40
Fusion® Above/Below IntelliSHOT Camera Mount for Extra-Large Displays
FCA810E$201.60
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Fusion® 14 Inch Above/Below Shelf for Large Displays
FCA801$152.80
Fusion® 8 Inch Above/Below Shelf for Large Displays
FCA800$130.40
Fusion® Lower Component Shelf, Extra-Large displays
FCA812$191.20
Fusion® 14 Inch Above/Below Shelf for Extra-Large Displays
FCA811$176.80
Fusion® Side Channel Speaker Adapter, Extra-Large Displays
FCA841$255.20
Fusion® Center Channel Speaker, Extra-Large Displays
FCA840$196.80
Fusion® 8 Inch Above/Below Shelf for Extra-Large Displays
FCA810$152.80
Questions about this part
Will the AVA1101 work with my 55-inch displays?
Yes, the AVA1101 is rated for typical screen sizes ranging from 46" to 60".
What VESA patterns are compatible with this accessory?
This accessory supports VESA mounting patterns from 200 x 400mm to 400 x 800mm.
Can I add camera mounts to this dual-display setup?
Yes, it is compatible with Fusion® accessories like the FCA800K and FCA810K ConferenceSHOT ePTZ camera mounts.
How do I adjust the height of the displays once they are mounted?
The AVA1101 provides 0.68 in (17.4 mm) of manual height adjustment to ensure correct display alignment.
Which document should I use for the installation process?
The Chief AVA1101 Installation Manual (PDF) provides the necessary instructions for mounting.
