Fusion® 8 Inch Above/Below Shelf for Large Displays
8-inch component and camera shelf for large displays, featuring a raised lip and TAA compliance

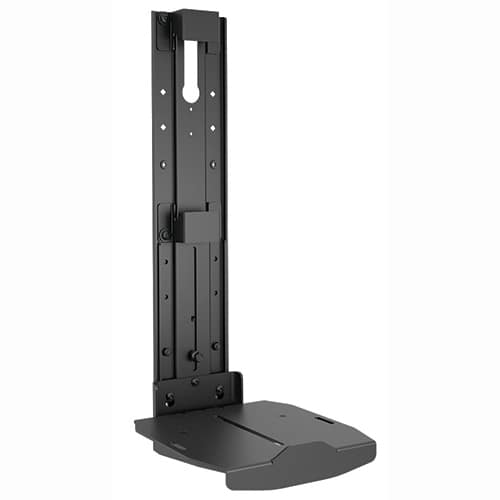

The Chief FCA800 is an 8-inch (203 mm) wide shelf designed to hold AV components or video conferencing equipment directly above or below a display. Part of the Fusion® Component/Video Conference Camera Shelves series, this accessory is compatible with all Fusion® Series mounts. The shelf includes a raised lip on the end to prevent equipment from sliding off during use. It is adjustable to accommodate displays ranging from 37 to 70 inches, with a height extension range of 12.9 to 19.2" (327–487 mm) measured from the center of the TV to the shelf. This TAA compliant universal solution provides a stable platform for essential hardware in professional AV installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 7.6 in (19.3 cm) |
| Height | 26 in (66 cm) |
| Overall Dimensions | 26" x 8" x 7.6" (661 x 203 x 194 mm) |
| Shipping Weight | 8.02 lbs (3.6 kg) |
| Typical Screen Size | Large |
| Weight Capacity | 10 lbs (4.5 kg) |
| Width | 8 in (20.3 cm) |
| Accessory Type | Camera ShelvesComponent Shelves |
All other specifications 6
| Application | Above/Below |
| Color | Black |
| Solution Type | Universal |
| TAA Compliant | Yes |
| UPC | 841872163819 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will the FCA800 fit my Fusion Series mount?
Yes, the FCA800 is compatible with all Fusion® Series mounts used in professional AV environments.
What is the weight capacity for the FCA800 shelf?
The FCA800 has a weight capacity of 10 lbs (4.5 kg) for the components or cameras placed on it.
How much vertical adjustment can I get for the shelf height?
The shelf provides a height extension range of 12.9" to 19.2" (327–487 mm) from the center of the TV to the shelf.
Is the FCA800 TAA compliant?
Yes, the FCA800 is TAA compliant for projects requiring adherence to the Trade Agreements Act.
What accessories are compatible with this shelf?
The FCA800 is compatible with the FCALRB1 accessory for Logitech® Rally Bar, Rally Bar Mini, and Rally Bar Huddle.
