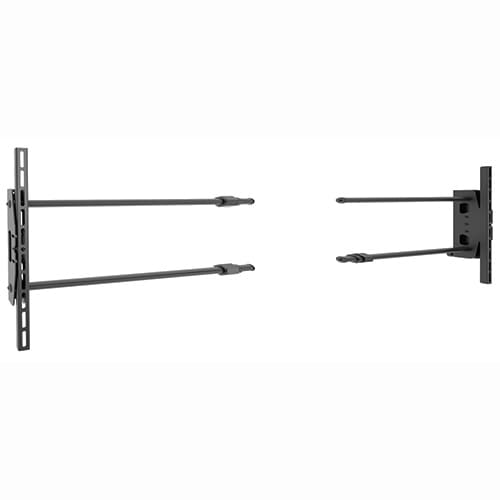

Fusion® Side Channel Speaker Adapter, Extra-Large Displays
Side channel speaker adapter for Fusion Series mounts, supporting 50"-95" displays with a 20 lbs capacity
The Chief FCA841 is a Fusion Side Channel Speaker Adapter designed to facilitate the side-mounting of AV speakers onto Fusion-mounted displays. This accessory is compatible with all Fusion Series mounts, including both fixed and tilt wall mount configurations. The universal design is intended to accommodate most speaker brands, providing a low-profile solution that does not increase the installation depth of the display. This specific adapter is rated for extra-large displays ranging from 50" to 95". Depending on your mounting application, it supports different width ranges: for wall mounts, it covers 44.8"-84.8" (1137.9mm-2153.9mm), while for ceiling or cart applications, the range is 46.2"-77.6" (1173.5mm-1971.0mm). Each adapter has a weight capacity of 20 lbs (9.07 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3 in (7.6 cm) |
| Height | 16 in (40.6 cm) |
| Overall Dimensions | 16" x 47-78" x 3" (406 x 1194 - 1981 x 76 mm) |
| Shipping Weight | 15.85 lbs (7.2 kg) |
| Typical Screen Size | 50" - 95" (1270mm - 2413mm) |
| Weight Capacity | 20 lbs (9.07 kg) |
| Width | 47-78 |
| Accessory Type | Speaker Accessories |
All other specifications 6
| Application | Side |
| Color | Black |
| Solution Type | Universal |
| TAA Compliant | Yes |
| UPC | 841872163864 |
| Certifications | TAA |
Resources
Questions about this part
Will the FCA841 work with my Fusion Series mount?
Yes, this adapter is compatible with all Fusion Series mounts, including both fixed and tilt wall mount versions.
What is the weight limit for the speakers mounted on the FCA841?
The FCA841 has a weight capacity of 20 lbs (9.07 kg) for the side-mounted speakers.
What display sizes are compatible with this speaker adapter?
This adapter is designed for extra-large displays with a typical screen size range of 50"-95" (1270mm-2413mm).
How does the mounting range change between wall and ceiling installs?
For wall mounts, the width range is 44.8"-84.8" (1137.9mm-2153.9mm), whereas ceiling or cart applications use a 46.2"-77.6" (1173.5mm-1971.0mm) range.
Which technical documents should I use for submittals?
You can refer to the FCA841 Technical Drawing (PDF) or the FCA831 841 Installation Manual (PDF) for detailed installation and submittal information.
