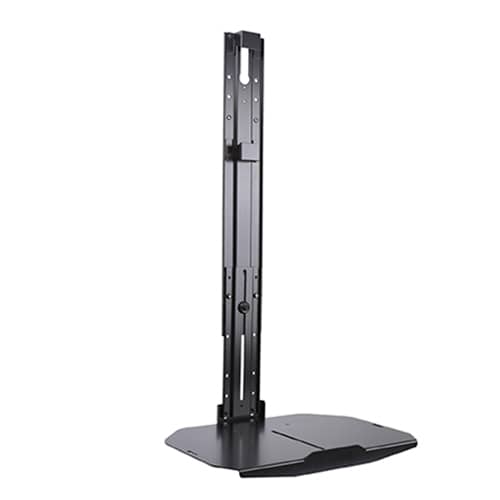

Fusion® Lower Component Shelf, Extra-Large displays
Extra-large component shelf for Fusion® Series mounts, supporting 20 lbs of equipment below large-format displays
The Chief FCA812 is an extra-large component shelf designed to add AV components or video conferencing equipment directly below your display. This accessory is fully compatible with all Fusion® Series mounts, providing a universal solution for organizing gear in professional installations. This specific SKU is designed for extra-large displays and offers significant adjustability to meet the needs of different site requirements. It provides both horizontal and vertical adjustments during installation, allowing for precise positioning of hardware. Depending on the specific application—whether you are using a wall, ceiling, or freestanding mount—the equipment height range varies between 17.9" - 19.7" to 27.8" - 31.1" from the center of the TV to the shelf. Manual height adjustment ranges from 9.9" to 11.6" depending on the mount type. This shelf is TAA compliant and maintains a sleek profile that does not add additional depth to your installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 11.8 in (30 cm) |
| Equipment Height Range | 17.9" - 19.7" to 27.8" - 31.1" from center of TV to shelf depending on wallceiling or freestanding application |
| Height | 38 in (96.5 cm) |
| Manual Height Adjustment | 9.9" - 11.6”depending on wallceiling or freestanding application |
| Overall Dimensions | 25.1-38.0" x 18.0" x 11.8” (638-965 x 457 x 300 mm) |
| Shipping Weight | 16 lbs (7.3 kg) |
| Typical Screen Size | Extra Large |
| Weight Capacity | 20 lbs (9.07 kg) |
All other specifications 8
| Width | 18 in (45.7 cm) |
| Accessory Type | Component Shelves |
| Application | Below |
| Color | Black |
| Solution Type | Universal |
| TAA Compliant | Yes |
| UPC | 841872165837 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will the FCA812 work with my Fusion® Series mount?
Yes, the FCA812 is designed to be compatible with all Fusion® Series mounts to support AV or video conferencing equipment.
How much weight can the FCA812 shelf hold?
The shelf has a weight capacity of 20 lbs (9.07 kg) for the equipment being mounted below the display.
Can I adjust the height of this component shelf?
Yes, the shelf features both horizontal and vertical adjustments, with manual height adjustments ranging from 9.9" to 11.6" depending on the application.
Is this component shelf TAA compliant?
Yes, the FCA812 is TAA compliant, making it suitable for projects with specific procurement requirements.
What other accessories are compatible with this shelf?
You can use the FCALRB1 Fusion® Display Mount Accessory for Logitech® Rally Bar, Rally Bar Mini, and Rally Bar Huddle with this series.
