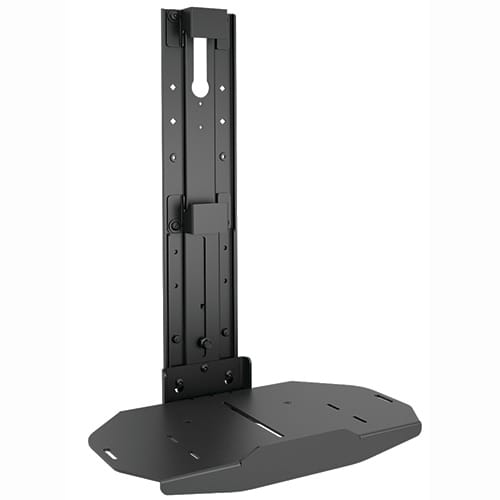

Fusion® 14 Inch Above/Below Shelf for Large Displays
14-inch Fusion component and camera shelf for large displays, supporting 10 lbs of equipment above or below the screen
The Chief FCA801 is a 14-inch wide shelf designed to support AV components or video conferencing equipment mounted above or below a large display. As part of the Fusion® Series, this component and video conference camera shelf is compatible with all Fusion® Series mounts. The shelf features a built-in lip on the end to prevent equipment from sliding off during use. It offers an equipment height range of 12.9" to 19.2" from the center of the TV to the shelf, making it height adjustable for displays ranging from 37" to 70". This TAA-compliant accessory has a 7.6 in (19.3 cm) depth and a 10 lbs (4.5 kg) weight capacity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 7.6 in (19.3 cm) |
| Equipment Height Range | 12.9" - 19.2" from center of TV to shelf |
| Height | 26 in (66 cm) |
| Overall Dimensions | 26" x 14" x 7.6" (661 x 356 x 194 mm) |
| Shipping Weight | 9.39 lbs (4.3 kg) |
| Typical Screen Size | Large |
| Weight Capacity | 10 lbs (4.5 kg) |
| Width | 14 in (35.6 cm) |
All other specifications 6
| Accessory Type | Camera ShelvesComponent Shelves |
| Application | Above/Below |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 841872163826 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will the FCA801 fit my Fusion Series mount?
Yes, the FCA801 is compatible with all Fusion® Series mounts.
Can I mount this shelf above my display?
The FCA801 is designed for both above and below display applications, providing support for AV components or conferencing equipment.
What is the weight limit for the FCA801 shelf?
The shelf has a weight capacity of 10 lbs (4.5 kg).
How do I ensure my equipment doesn't slide off?
The FCA801 features a built-in lip on the end of the shelf to prevent equipment from sliding off.
Which documents are available for submittals?
You can access the FCA801 Technical Drawing, CAD Drawing, and the FCA800 801 Installation Manual for submittal and installation purposes.
