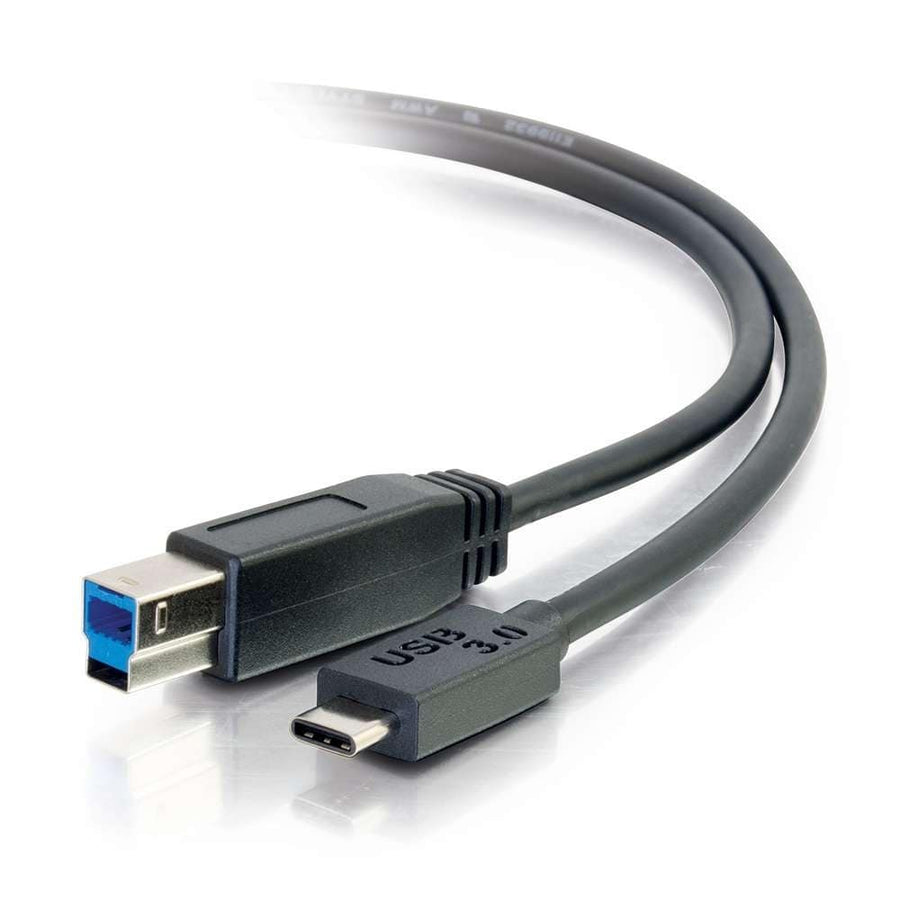

6ft (1.8m) USB 3.0 (USB 3.2 Gen 1 (5Gbps) USB-C to USB-B Cable M/M - Black
6ft USB 3.2 Gen 1 USB-C to USB-B Male cable supporting 5Gbps data transfer and 1 Amp power delivery
The CG28866 is a 6 ft (1.8 m) USB 3.0 (USB 3.2 Gen 1) cable designed to bridge the connection between modern computing devices and peripherals. By utilizing a USB-C Male connector on one end and a USB 3.0 B Male connector on the other, this cable allows for high-speed communication between a computer, tablet, or laptop and devices such as external hard drives, hubs, or other USB-B peripherals. It is engineered to support data transfer and synchronization rates up to 5 Gbps. The USB-C interface is designed for durability, rated for up to 10,000 connection cycles, and features a symmetrical design for easier first-try insertion. While this cable supports USB 3.0 (USB 3.2 Gen 1) communication and features, it is not intended for use with USB 3.2 Gen 2 communication specifications. It provides up to 1 Amp of power for device operation and charging within a 30V voltage rating.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 1 Amp |
| Cable Diameter | 0.17 in (4.2 mm) |
| Cable Length | 6 ft (1.8 m) |
| Operating Humidity Max | 80% RH |
| Operating Humidity Min | 20% RH |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 0.15 lbs (0.1 kg) |
| Signal Transmission | Bidirectional |
All other specifications 18
| Storage Humidity Max | 90% RH |
| Storage Humidity Min | 0% RH |
| Storage Temperature | -13° to 158°F (-25°C to 70°C) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
| Wire Gauge | 32 |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB-C Male(1) USB-C Male |
| Connector 2 | (1) USB 3.0 B Male(1) USB 3.0 B Male |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 3.0 |
| UPC | 757120288664 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 5 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
10ft (3m) USB 3.0 (USB 3.2 Gen 1 (5Gbps) USB-C to USB-B Cable M/M - Black
CG28867$32.99
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
0.5ft (0.15m) USB-C® Female to USB-A Male SuperSpeed USB 5Gbps Adapter Converter
CG54428$22.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
USB-C® 9-in-1 Dual Display Docking Station with HDMI®, Ethernet, USB, 3.5mm Audio and Power Delivery up to 60W - 4K 30Hz (TAA Compliant)
C2G54488$189.99
USB-C® Male to USB-A Female Adapter Converter - USB 3.2 Gen 1 (5Gbps)
C2G29515$17.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
USB-C® 12-in-1 Triple Display Docking Station with HDMI®, DisplayPort™, Ethernet, USB (TAA Compliant)
C2G54535Discontinued
Questions about this part
Will this CG28866 cable work with my USB 3.2 Gen 2 device?
No, this cable is specifically designed to support USB 3.0 (USB 3.2 Gen 1) communication and features, not USB 3.2 Gen 2.
Can I use the CG28866 to power my external hard drive?
Yes, the cable supports up to 1 Amp of power for device operation and charging via the USB-C connection.
Is there a longer version of this USB-C to USB-B cable available?
Yes, the CG28867 is a 10ft (3m) version of this same USB 3.0 (USB 3.2 Gen 1) cable series.
What are the environmental operating requirements for this cable?
The cable is rated for operating temperatures between 32° to 122°F (0° to 50°C) and can be stored from -13° to 158°F (-25°C to 70°C).
Does this cable support high-speed data syncing?
Yes, it supports bidirectional signal transmission with data transfer rates of up to 5 Gbps.
