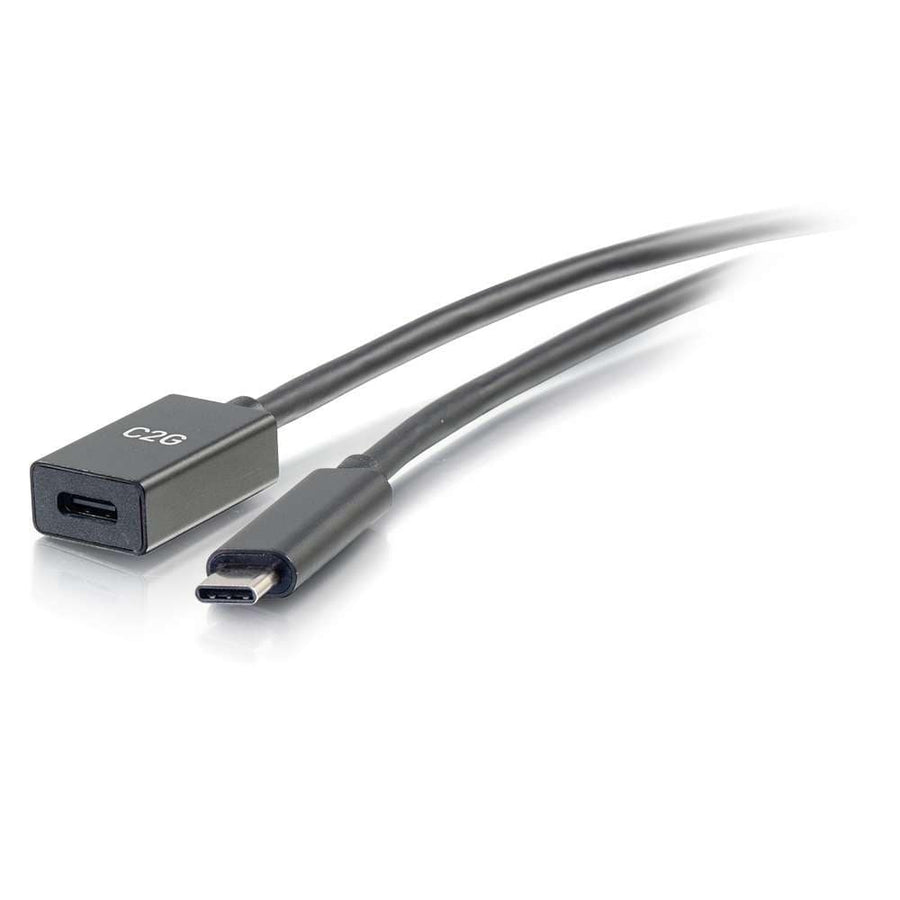

3ft (0.9m) USB-C to C 3.2 Gen 1 (5Gbps) Male to Female Extension Cable
3ft USB-C to C 3.2 Gen 1 extension cable supporting 5Gbps data transfer and 3A charging
The C2G CG28656 is a 3 ft (0.9 m) USB-C to C 3.2 Gen 1 Male to Female extension cable designed to increase the reach of your existing connections. This cable is intended for use with USB-C equipped laptops, smartphones, or tablets, providing a reliable way to extend a connection without replacing the primary cable. It supports data transfer speeds up to 5 Gbps and provides 3A charging output. The USB-C connector features a reversible, symmetrical design, ensuring the cable plugs in correctly on the first attempt regardless of orientation. This design also helps protect device ports from wear caused by frequent plugging and unplugging. This bidirectional cable is compatible with USB-C and Thunderbolt™ 3 ports and supports all 'Alt' mode features, including full DisplayPort output and multi-streaming. The cable is constructed with a 0.18 in (4.5 mm) diameter PVC jacket and a 2.01 in (51 mm) bend radius.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 2.01 in (51 mm) |
| Cable Diameter | 0.18 in (4.5 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Humidity Max | 85% RH (Non-Condensing) |
| Operating Humidity Min | 15% RH (Non-Condensing) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 0.09 lbs (0 kg) |
| Signal Transmission | Bidirectional |
All other specifications 17
| Storage Humidity Max | 85% RH (Non-Condensing) |
| Storage Humidity Min | 15% RH (Non-Condensing) |
| Storage Temperature | -13° to 158°F (-25°C to 70°C) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
| Wire Gauge | 32 |
| Cable Type | ExtensionUSB |
| Connector 1 | (1) USB-C Male(1) USB-C Male |
| Connector 2 | (1) USB-C Female(1) USB-C Female |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 3.0 |
| UPC | 757120286561 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 5 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
0.5ft (0.15m) USB-C® Female to USB-A Male SuperSpeed USB 5Gbps Adapter Converter
CG54428$22.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
USB-C® 9-in-1 Dual Display Docking Station with HDMI®, Ethernet, USB, 3.5mm Audio and Power Delivery up to 60W - 4K 30Hz (TAA Compliant)
C2G54488$189.99
USB-C® Male to USB-A Female Adapter Converter - USB 3.2 Gen 1 (5Gbps)
C2G29515$17.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
USB-C® 12-in-1 Triple Display Docking Station with HDMI®, DisplayPort™, Ethernet, USB (TAA Compliant)
C2G54535Discontinued
Questions about this part
Will the CG28656 work with my Thunderbolt 3 laptop?
Yes, this extension cable is compatible with both USB-C and Thunderbolt™ 3 ports.
Can I use this cable to extend a DisplayPort connection?
Yes, it supports all 'Alt' mode features, which includes outputting full DisplayPort, including multi-streaming.
What is the maximum data transfer rate for the CG28656?
This cable supports data transfer speeds of up to 5 Gbps using USB 3.2 Gen 1 technology.
How does the connector design prevent port damage?
The symmetrical USB-C connector design is identical on both sides, ensuring it plugs in correctly every time and reducing stress on the device port.
What accessories are recommended for installing this cable?
For cable management, you may consider using C2G 6in Cable Tie Multipacks (SKU: CG43037) or C2G 11in Hook-and-Loop Cable Management Wraps (SKU: CG29854).
