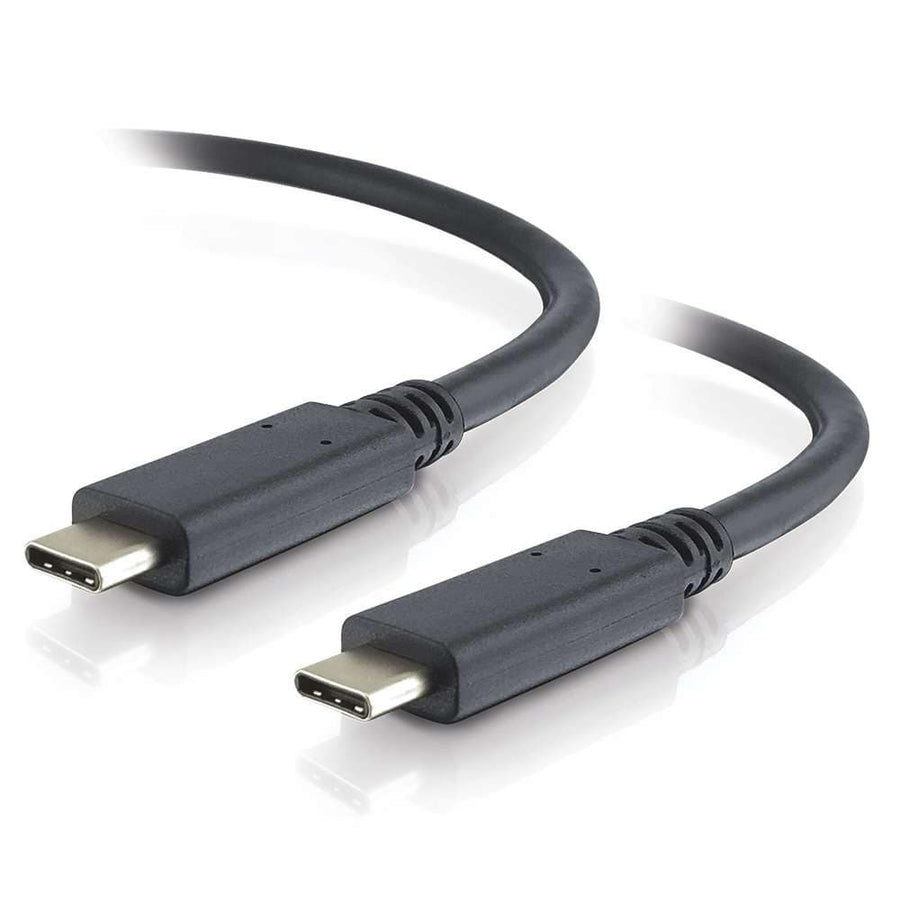

3.3 ft (1m) USB-C 3.2 (Gen 2) Male to Male Cable (20V 5A)
USB-C 3.2 Gen 2 Male to Male cable supporting 10Gbps data, 4K video, and up to 100W power delivery
The C2G CG28848 is a 3.3 ft (1m) USB-C 3.2 Gen 2 Male to Male cable designed to consolidate high-speed data, video, and power through a single connection. This cable supports bidirectional signal transmission and data transfer rates up to 10 Gbps, making it suitable for rapid file transfers and high-performance peripheral connectivity. It is backward compatible with USB 3.0, 2.0, and 1.1 standards. For video professionals, this cable supports all 'Alt' mode features, including full DisplayPort output and multi-streaming for 4K video. It facilitates power delivery of up to 100W (20V, 5A) to or from a connected device, ensuring laptops and tablets remain charged while connected to displays or docking stations. The USB-IF Certified construction features gold flashed laser welded contacts and a robust, symmetrical connector design that allows for up to 10,000 insertion cycles. The 32 AWG wire is encased in a durable PVC jacket, and the cable maintains a minimum bend radius of 2.05 in (52 mm).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 5 Amp |
| Bend Radius | 2.05 in (52 mm) |
| Cable Length | 3.3 ft (1 m) |
| Operating Humidity Max | 85% RH (Non-Condensing) |
| Operating Humidity Min | 15% RH (Non-Condensing) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 0.12 lbs (0.1 kg) |
| Signal Transmission | Bidirectional |
All other specifications 20
| Storage Humidity Max | 85% RH (Non-Condensing) |
| Storage Humidity Min | 15% RH (Non-Condensing) |
| Storage Temperature | -13° to 158°F (-25°C to 70°C) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
| Voltage | 20 V |
| Wire Gauge | 32 |
| Cable Type | USB |
| Connector 1 | (1) USB-C Male(1) USB-C Male |
| Connector 2 | (1) USB-C Male(1) USB-C Male |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 3.0 |
| UPC | 757120288480 |
| Video Input Support | USB-C |
| Video Output Support | USB-C |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
0.5ft (0.15m) USB-C® Female to USB-A Male SuperSpeed USB 5Gbps Adapter Converter
CG54428$22.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
USB-C® 9-in-1 Dual Display Docking Station with HDMI®, Ethernet, USB, 3.5mm Audio and Power Delivery up to 60W - 4K 30Hz (TAA Compliant)
C2G54488$189.99
USB-C® Male to USB-A Female Adapter Converter - USB 3.2 Gen 1 (5Gbps)
C2G29515$17.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
USB-C® 12-in-1 Triple Display Docking Station with HDMI®, DisplayPort™, Ethernet, USB (TAA Compliant)
C2G54535Discontinued
Questions about this part
Will this C2G CG28848 cable work for 4K video output?
Yes, this cable supports 'Alt' mode features for full DisplayPort output, including multi-streaming, to enable 4K video transmission.
What is the maximum power delivery for this USB-C cable?
The cable supports power delivery of up to 100W (20V, 5A) to or from a connected source.
Can this cable be used with older USB standards?
Yes, while it is a USB 3.2 Gen 2 cable, it remains backward compatible with USB 3.0, USB 2.0, and USB 1.1.
What is the maximum data transfer speed of the CG28848?
This cable supports data transfer rates of up to 10 Gbps via USB 3.2 Gen 2 technology.
Does this cable support bidirectional data transfer?
Yes, the CG28848 features bidirectional signal transmission for data and video.
