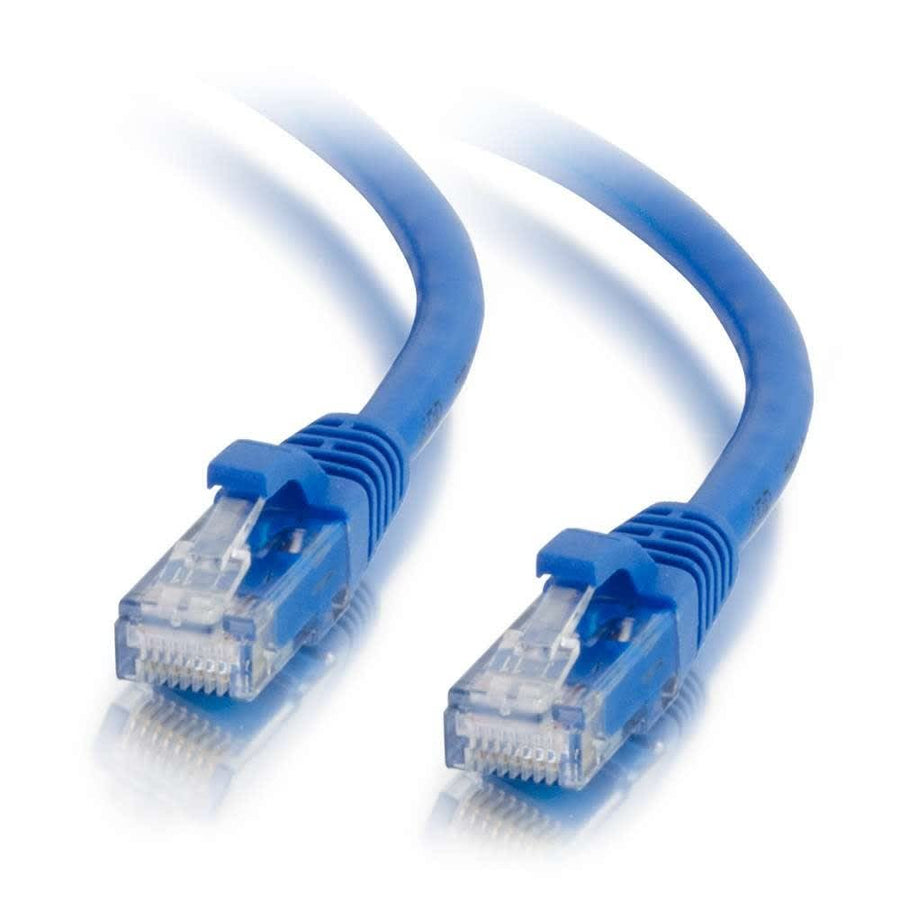

15ft (4.6m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
Blue 15ft Cat6a snagless unshielded UTP patch cable for 10GBase-T networking equipment
The C2G CG00701 is a 15ft (4.6 m) Cat6a patch cable designed to support 10 Gigabit data transmission over 4-pair copper cabling. This unshielded UTP cable is engineered for high-density environments, utilizing a snagless hood that prevents accidental disconnection when working in crowded switch applications. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring improved alien crosstalk performance for 10GBase-T ports. The construction features 26AWG bare copper stranded conductors with HDPE insulation and a PVC jacket. This blue cable is an ideal solution for connecting network adapters, hubs, switches, routers, DSL/cable modems, and patch panels in professional installations. For ease of use in large-scale deployments, each individual cable includes a length label to assist with identification during installation and maintenance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 15 ft (4.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.4 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007012 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
15ft (4.6m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG00735$25.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
Will this C2G CG00701 cable support 10 Gigabit Ethernet?
Yes, this Cat6a patch cable supports 10GBase-T transmission over 4-pair copper for connections up to 100 meters.
Is this patch cable suitable for high-density switches?
Yes, the snagless connector design is specifically intended to protect the clip and facilitate use in high-density switch applications.
What is the difference between this and the CG00735 SKU?
The CG00701 is the blue version, while the CG00735 is the black variant of the same 15ft Cat6a snagless cable.
What tools are required to install this cable?
No specialized installation tools are required for this pre-terminated patch cable, though a cable tester could be used for verification.
What is the wiring scheme for the CG00701?
This Cat6a patch cable uses the 568B wiring scheme for its RJ-45 male connectors.
