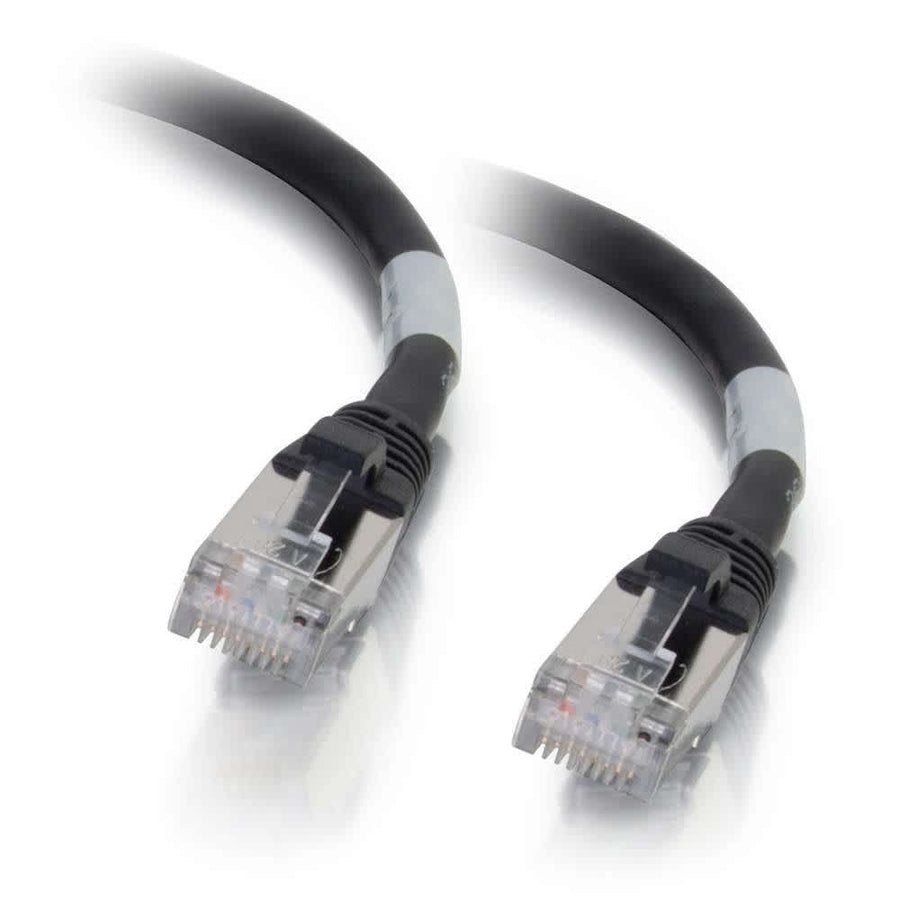

10ft (3m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Black
10ft Cat6a STP patch cable with snagless boots, shielding for 10GBase-T, and black PVC jacket
The C2G CG00715 is a 10ft (3.1 m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable designed for high-speed 10GBase-T environments. This black patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, making it suitable for bandwidth-intensive applications in professional network deployments. It features 26AWG bare copper stranded conductors with FMPE (Foam Polyethylene) insulation, providing a reliable signal for hubs, switches, routers, and patch panels. The SSTP (Screened Shielded Twisted Pair) construction is engineered to protect 10 Gigabit network connections from electromagnetic interference and noise, helping to reduce impedance and structural return loss (SRL). To minimize Near-End Crosstalk (NEXT), each individual pair is bonded together to maintain precise twist-spacing up to the termination point. This cable is an ideal solution for connecting network adapters, DSL/cable modems, and other critical networking hardware in high-interference environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120007159 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
10ft (3m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Blue
CG00681$25.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this C2G CG00715 cable work for 10 Gigabit networks?
Yes, this Cat6a cable is designed for 10GBase-T ports and equipment, providing the necessary shielding to protect high-speed 10 Gigabit connections from noise.
What is the difference between the CG00715 and other C2G Cat6a cables?
The CG00715 is a black, 10ft STP shielded cable; other models in the C2G Cat6a Patch Cable Series offer different colors and lengths, such as the blue CG00681.
Does this cable require special tools for installation?
This is a pre-terminated patch cable with RJ-45 male connectors, so no specialized installation tools are required to connect it to your hardware.
What kind of shielding does this patch cable use?
This model utilizes SSTP (Screened Shielded Twisted Pair) construction with 26AWG bare copper conductors to minimize crosstalk and interference.
What is the operating temperature range for this cable?
This cable is rated for an operating temperature range of -4° to 176°F (-20° to 80°C).
