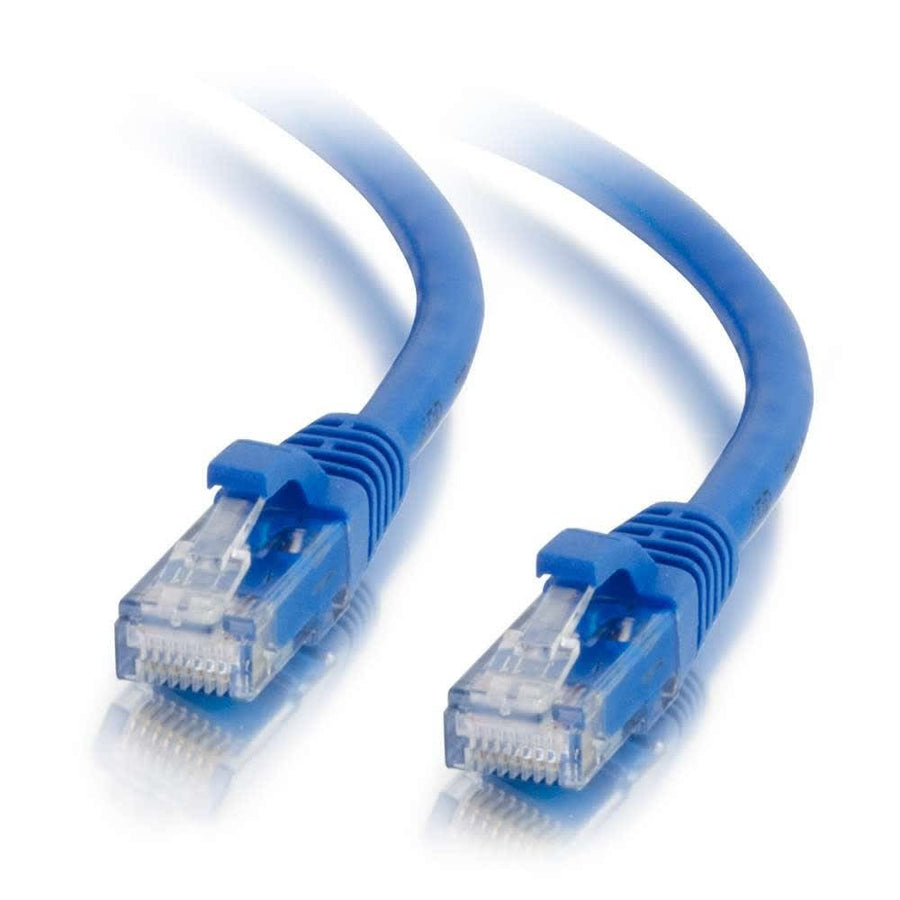

10ft (3m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
10ft Cat6a snagless UTP patch cable in blue, featuring 26AWG stranded copper conductors and ANSI/TIA 568 C.2 testing
The CG00698 is a 10 ft (3.1 m) Cat6a snagless UTP Ethernet patch cable finished in blue. Designed to support 10GBase-T equipment, this cable facilitates 10 Gigabit data transmission over a 4-pair copper configuration for connections reaching up to 100 meters. It is constructed with 26AWG (7/0.16) bare copper stranded conductors and HDPE (High-density Polyethylene) insulation. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, providing improved alien crosstalk performance for high-density switch applications. The snagless, booted RJ-45 male connectors feature a PVC hood to protect the connection in crowded patch panels or switches. This unshielded UTP cable is suitable for use with network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. For easy identification within complex network installations, each cable includes an individual length label.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.27 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120006985 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Is the CG00698 suitable for 10 Gigabit Ethernet applications?
Yes, this Cat6a patch cable is designed for 10GBase-T ports and equipment, supporting 10 Gigabit data transmission over 100 meters.
What is the wiring scheme for the CG00698?
This cable utilizes the 568B wiring scheme and is fully tested to ANSI/TIA 568 C.2 Cat6a channel requirements.
Will the snagless boot protect my connections in a dense switch?
Yes, the snagless PVC hood is specifically designed to protect the connection and improve performance in high-density switch applications.
What are the conductor specifications for this patch cable?
The cable features 26AWG (7/0.16) bare copper stranded conductors with HDPE (High-density Polyethylene) insulation.
What is the temperature rating for the CG00698?
This patch cable has a temperature rating of 75°C.
